Cable #6 – Vision Fitness Multi-Station Gym ST710 User Manual
Page 22
II JJ
HH
GG
DD
Front View
Side View
Gussett
22
12
STEP

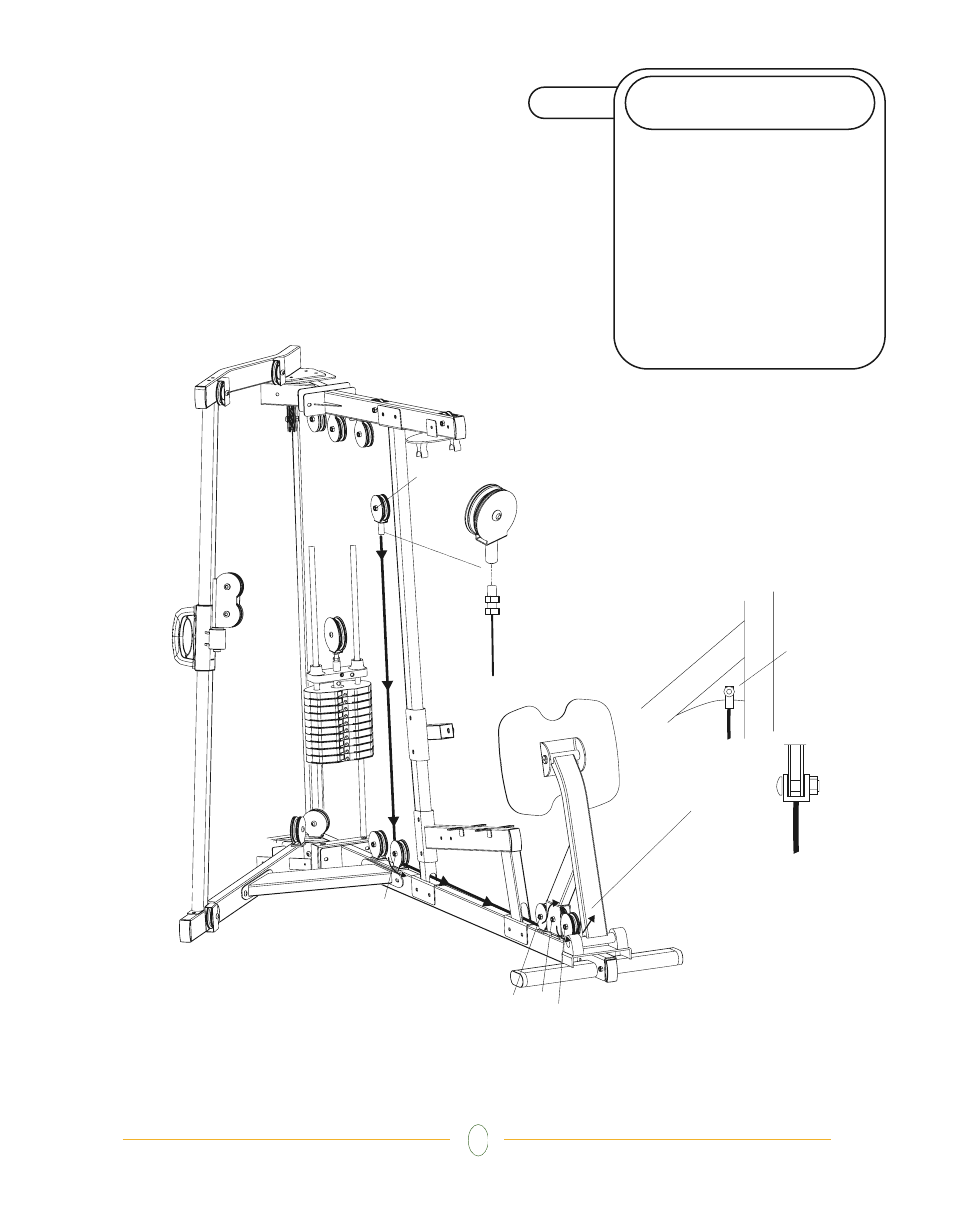

NOTE: You will need to remove pulleys GG, HH, II,
and JJ to route cable #6.
• Thread the bolt a minimum of 0.5” into
pulley DD. Tighten nut to pulley housing.
Route the cable through the specified pulleys
in the following order: under GG, under
HH, over II, and under JJ. Connect the ter-
mination to the leg press swing arm with a
bolt (M8x19) and a nut (M8). WARNING:
Failure to thread the specified distance
can result in serious injur y!
CABLE #6
(1/4” diameter)
