15
AB2
AB3
AK2
AB1
AB5
AE3
AH3
AK2
AG1
Press Arm Leg Press
Inside
5
STEP

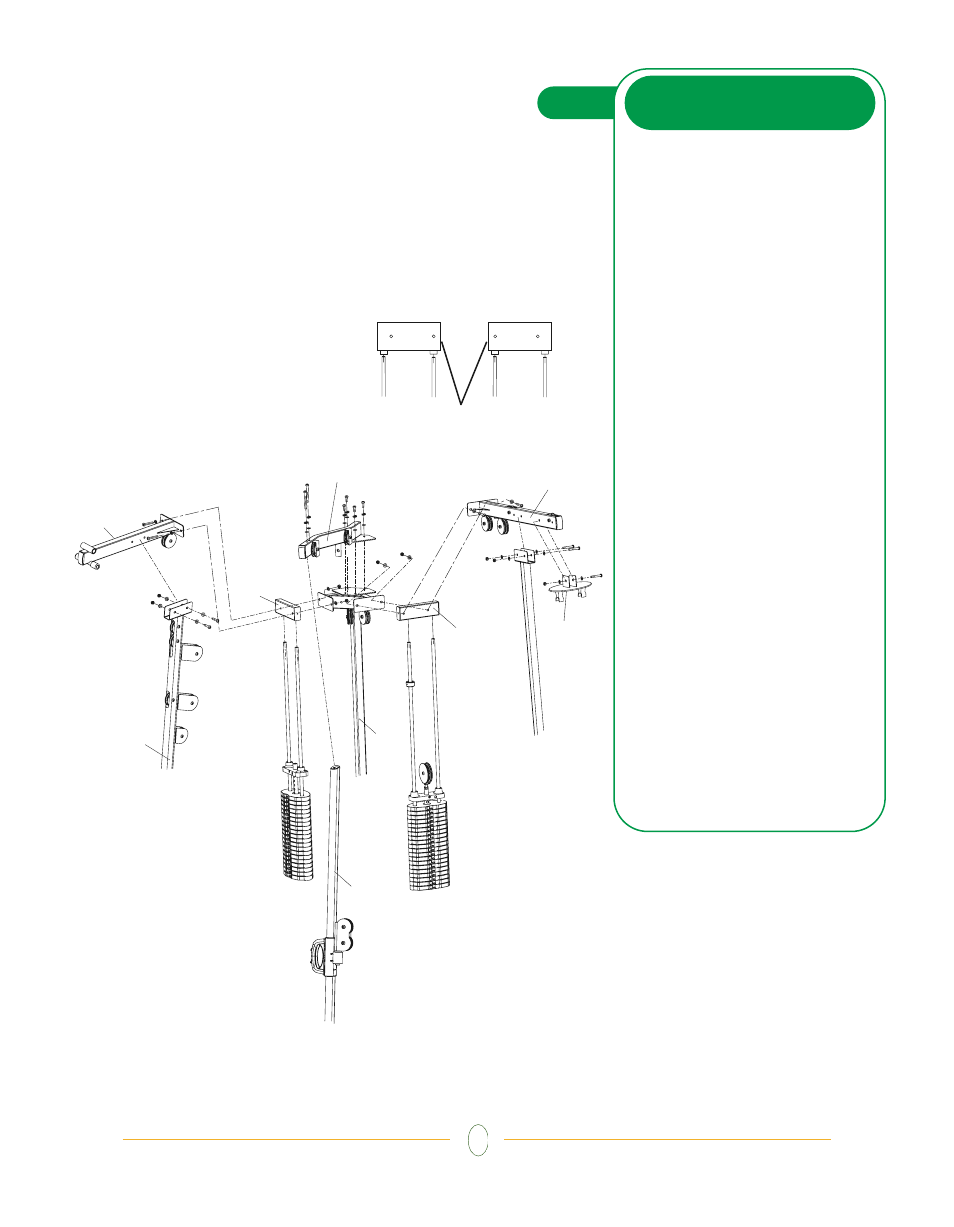

• Slide a weight stack upper block (AK2)
onto the guide rods of the press arm
weight stack. See diagram for orientation.
Take the press arm overhead tube (AB3)
and place in the bracket on top of the
press arm upright (AB2). Align the holes of
the overhead tube, weight stack upper
block, and main center upright (AB1).
Slide a bolt (M10x67) with a flat washer
(10.2x22x2) through each hole and
secure the bolts with another flat washer
and a nylon nut (M10). To secure the con-
nection between the press arm upright and
overhead tube, use two bolts (M10x62),
four flat washers (10.2x22x2), and two
nylon nuts (M10). Repeat this process on
leg press side with the leg press overhead
tube (AB5) and the other weight stack
upper block (AK2).
• Place the functional arm overhead tube
(AG1) over the main center upright (AB1)
and functional arm upright (AH3). Secure
the overhead tube to the main center
upright using four bolts (M10x25) with
four lock washers (10.2x18.4x2.5) and
four flat washers (10.2x22x2). To secure
the connection between overhead tube
and functional arm upright, use two
bolts (M10x100), two lock washers
(10.2x18.4x2.5), and two flat washers
(10.2x22x2).
• Attach the dual snap hook bar mount (AE3)
to AB5 with two bolts (M10x62), four flat
washers (10.2x22x2), and two nuts (M10).
Make sure snap hooks are on the bottom.
GREEN BAG
