A green bar indicates that even though motions have been detected, the event has not been triggered

because the image variations still fall under the defined threshold.

This motion detection window will also be displayed on the Event Settings page� You can go to

Application > Event Settings > Trigger to choose it as a trigger source� Please refer to page 63 for

detailed information�

NOTE

► How does motion detection work?

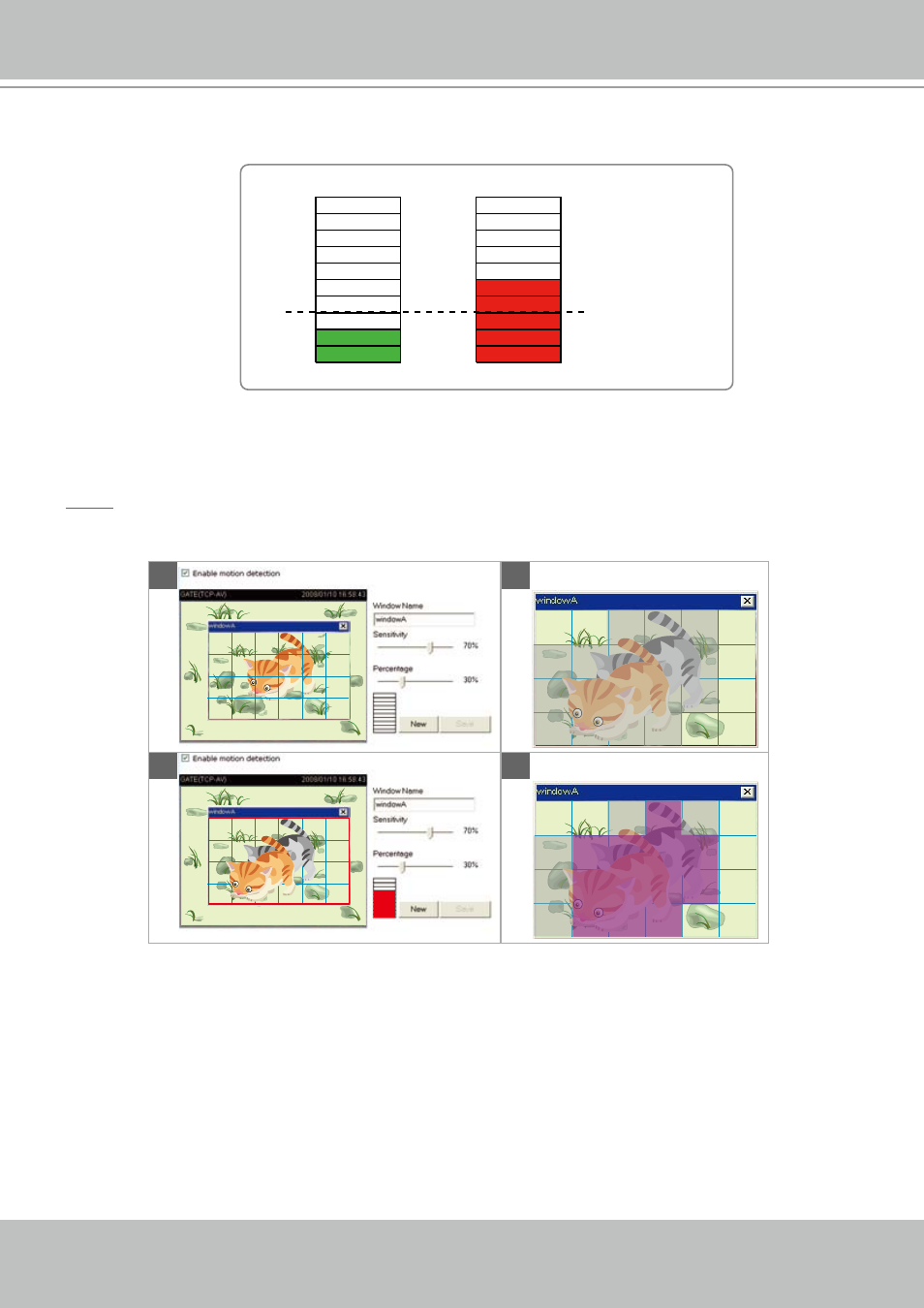

There are two motion detection parameters: Sensitivity and Percentage. In the illustration above,

frame A and frame B are two sequential images� Pixel differences between the two frames are

detected and highlighted in gray (frame C) and will be compared with the sensitivity setting� Sensitivity

is a value that expresses the sensitivity to moving objects� Higher sensitivity settings are expected to

detect slight movements while smaller sensitivity settings will neglect them� When the sensitivity is set

to 70%, the Network Camera defines the pixels in the purple areas as “alerted pixels” (frame D).

Percentage is a value that expresses the proportion of “alerted pixels” to all pixels in the motion

detection window. In this case, 50% of pixels are identified as “alerted pixels”. When the percentage is

set to 30%, the motions are judged to exceed the defined threshold; therefore, the motion window will

be outlined in red�

For applications that require a high level of security management, it is suggested to use higher

sensitivity settings and smaller percentage values�

Percentage = 30%
