TO DETERMINE TOTAL STANDBY LOAD
ON BATTERY, ADD 100mA TO TOTAL OF
AUX. POWER OUTPUT AND REMOTE
KEYPAD CURRENTS.

USE UL LISTED LIMITED
ENERGY CABLE FOR
ALL CONNECTIONS

CONNECTION OF THE FIRE ALARM SIGNAL TO A FIRE
ALARM HEADQUARTERS OR A CENTRAL STATION
SHALL BE PERMITTED ONLY WITH THE PERMISSION OF
THE LOCAL AUTHORITY HAVING JURISDICTION. THE
BURGLAR ALARM SIGNAL SHALL NOT BE CONNECTED
TO A POLICE EMERGENCY NUMBER.

LOCATED
AT LOWER
RIGHT
OF CIRCUIT
BOARD

EARTH

GROUND

SEE

INSTRUCTIONS

FOR PROPER

GROUNDING

TELEPHONE WIRING

(VIA RJ31X* JACK DIRECT

CONNECT CORD)

*IN CANADA, CA38A JACK

DOC LOAD No.: 3

REMOTE KEYPADS
SYSTEM

MUST BE

PROGRAMMED WITH A
No. 5137AD OR 6139, BUT NEED
NOT REMAIN IN SYSTEM.

AFTER PROGRAMMING, THE
SYSTEM CAN USE:
No. 4127(20mA), 4137AD (60mA),
5137AD (90mA), 6127 (20mA),
6128 (30mA), 6137 (85mA),
6138 (100mA), OR 6139 (100mA).

MULTIPLE KEYPADS MAY BE
USED, BUT USE MAX. OF 220 FT.
OF #22 WIRE OR 550 FT. OF #18.

BLACK: KEYPAD GROUND (–) RETURN

RED: KEYPAD PWR (+)

GREEN: DATA IN FROM KEYPAD

YELLOW: DATA OUT TO KEYPAD

▲

REMOTE

KEYPAD(S)

AUX. POWER

OUTPUT

10.5-13.8VDC

500mA MAX.

INTERRUPTS

FOR FIRE

ALARM RESET

NOTE:

KEYPAD

CURRENT

MUST BE

INCLUDED

IN AUX.

CURRENT

DRAIN

CALCULA-

TIONS

}

GEL LEAD ACID TYPE.

BATTERY NORMALLY NEED NOT BE
REPLACED FOR AT LEAST 3 YRS.

BATTERY CAPACITY FOR EMERGENCY
STANDBY USE AT LEAST 4 HOURS.

THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS: (1) IT MAY NOT CAUSE HARMFUL
INTERFERENCE, (2) IT MUST ACCEPT ANY INTERFERENCE
THAT MAY CAUSE UNDESIRED OPERATION.

COMPLIES WITH FCC RULES, PART 68
FCC REGISTRATION NO. AC398U-68192-AL-E
RINGER EQUIVALENCE: 0.7B.

THIS EQUIPMENT SHOULD BE INSTALLED IN
ACCORDANCE WITH THE NATIONAL FIRE
PROTECTION ASSOCIATION'S STANDARD 74
(NATIONAL FIRE PROTECTION ASSOC.,
BATTERYMARCH PARK, QUINCY, MA 02269).
PRINTED INFORMATION DESCRIBING PROPER
INSTALLATION, OPERATION, TESTING,
MAINTENANCE, EVACUATION PLANNING AND
REPAIR SERVICE IS TO BE PROVIDED WITH
THIS EQUIPMENT.

CHARGING

VOLTAGE

13.8VDC

BATTERY

12V, 4AH

(e.g. ADEMCO

No. 467)

OR 12V, 1.2AH

–

BATTERY

CONNECTOR TABS

FOR COMPLETE

INFORMATION,

SEE INSTRUCTIONS

PLUG-IN
TRANSFORMER
16.5VAC, 25VA
(e.g. ADEMCO
No. 1321/TF2.
USE No. 1321CN
IN CANADA)

TO 110VAC

UNSWITCHED

OUTLET (24-HR)

–

ALARM OUTPUT

10.5-13.8VDC, 2A MAX.

(600mA MAX. FOR UL USAGE,

INCLUDING AUX. POWER)

STEADY FOR BURGLARY/PANIC,

TEMPORAL SOUNDING FOR FIRE (e.g.

USE ADEMCO No. 740 SOUNDER,

Nos. 702 OR 719 SIREN, OR 12V BELL)

BATTERY FUSE

(e.g. ADEMCO No. 90-12)

FOR REPLACEMENT

USE SAME VALUE

BLK
RED
GRN
YEL

OPTIONAL

FOR UP TO 16 RF EXPANSION ZONES

1000

OHMS

EOLR

1000

OHMS

EOLR

ZONE 5

ZONE 6

WARNING:

OWNER'S INSTRUCTION NOTICE NOT TO BE REMOVED. WEEKLY TESTING IS

REQUIRED TO ENSURE PROPER OPERATION OF THIS SYSTEM.

TIP

(BROWN)

RING

(GRAY)

TIP

(GREEN)

RING

(RED)

}

INCOMING

PHONE

LINE

HANDSET

BLACK

RED

–

1000

OHMS

EOLR

1000

OHMS

EOLR

ZONE 1

ZONE 2

1000

OHMS

EOLR

1000

OHMS

EOLR

ZONE 3

ZONE 4

• MAXIMUM LOOP RESISTANCE (EACH ZONE): 300 OHMS (PLUS EOLR)
• RESPONSE, ZONES 1–6: 300–500MSEC
• ZONE 3 CAN BE PROGRAMMED FOR N.C. SENSOR FAST RESPONSE

TO AN OPEN: 10MSEC MAX

ADEMCO 4281 or 5881* Type

RF RECEIVER

WIRELESS ZONES

4281L:

UP TO 4

4281M/4281H:

UP TO 8

5881L:

UP TO 8

5881M/5881H/5881EH: UP TO 16

* 5882 Type IN CANADA

ADEMCO No. 4204

RELAY MODULE (180mA MAX)

(4 OUTPUT RELAYS)

SET UNIT’S DIP SWITCH

FOR DEVICE ADDRESS OF “0”

(See receiver’s instructions)

SET UNIT’S DIP SWITCH

FOR DEVICE ADDRESS OF “1”

(See unit’s instructions)

THESE OPTIONAL ITEMS

MAY ALSO BE USED

SEE THEIR INSTRUCTIONS

ADEMCO No. 5800TM

TRANSMITTER MODULE

(20mA)

(for No. 5827BD

Wireless Bidirectional Keypad)

AND/OR

ADEMCO No. 4285

VOICE MODULE (160mA)

AND/OR

ADEMCO No. 7720PLUS

or 7820 LONG RANGE RADIO

AUX PWR

OUTPUT

TERMS

TO HI SIDE OF SELECTED ZONE

TO LO SIDE OF SELECTED ZONE

•

EOL
POWER
SUPER-
VISION
RELAY
MODULE
A77-716B

•

4-WIRE SMOKE

OR COMBUSTION

DETECTOR

2000

OHMS

EOLR

HEAT
DETECTOR

ZONES 2–7

RED

BLK

–

VIOLET

ZONE 5
(IF PROGRAMMED FOR FIRE)

OPTIONAL

WARNING:

TO PREVENT RISK OF

SHOCK, DISCONNECT TELEPHONE LINE
AT TELCO JACK BEFORE SERVICING
THIS UNIT.

1000

OHMS

EOLR

–

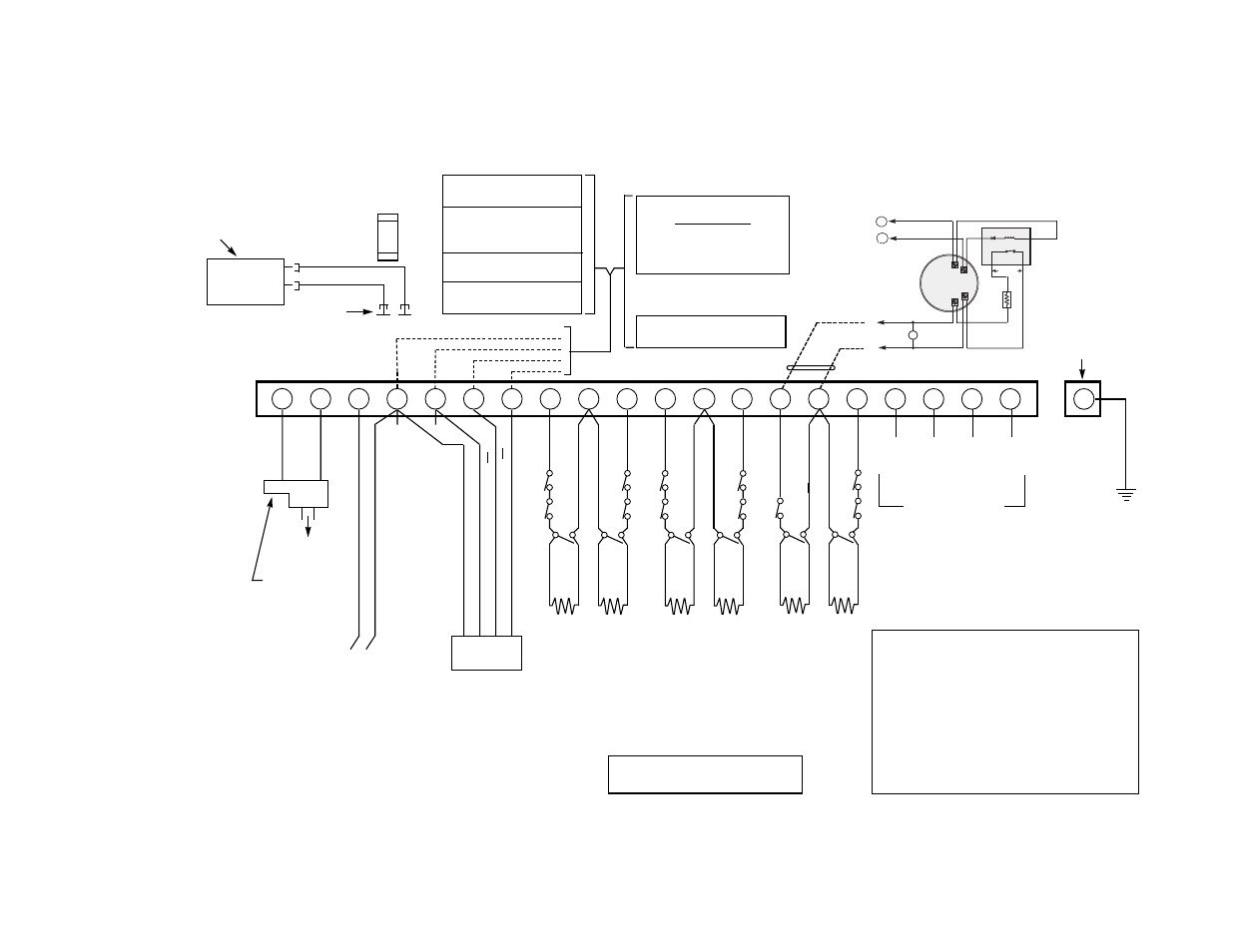

ADT VISTA-10SE SUMMARY OF CONNECTIONS

Figure 15. VISTA–10SE SUMMARY OF CONNECTIONS DIAGRAM
