6 SmartDup IDE CD Duplicator User’s Guide
2-1 Installation
The following sections will guide you through the installation and setup of your
SmartDup CD duplicator system for operation.
A small Phillips screwdriver is the only tool required.
2-1.1 Disassembling a CD-ROM Box
1. Remove the four rubber stands on the CD-ROM box enclosure by gently
prying them off.
2. Remove the four retaining screws securing the top enclosure cover.
(Refer to the following illustration to identify the top cover.)
3. Separate the top and bottom enclosure covers.
4. Slide out the end-panel with mounted connectors and fan .
Note that the CD-ROM box enclosure is factory
assembled with the drive rails installed.

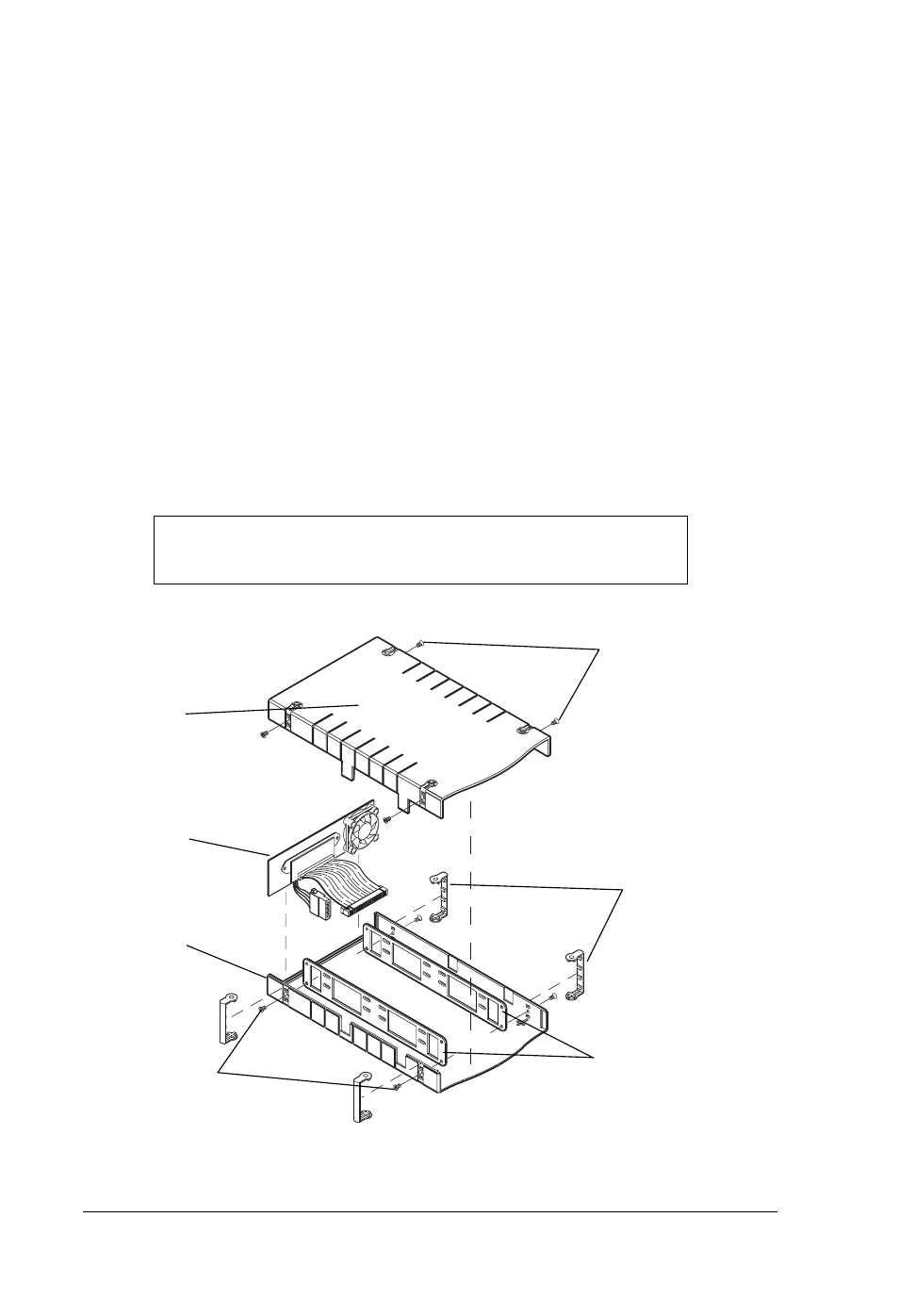

Retaining
Screws
(x4)
Rubber
Stands
(x4)
Drive Rails
Connectors/Fan
End-Panel
CD-ROM Box Enclosure Components
Retaining
Screws
(x4)
Top Cover
(Note alignment
flanges)
Bottom Cover
(Note cut-out
for flange)
