SmartDup IDE CD Duplicator User’s Guide 9
9. Place the CD-ROM drive box on top of the CD-R or CD-RW drive box.
10. Slide the holding brackets (centering one on each side) to hold the two boxes
together as a unit.
2-1.3 Install the SmartDup
1. Attach the SmartDup dock to the back of the assembled CD-ROM box
enclosures.
a. Make sure the CD-ROM drive is positioned on top of the CD-R or
CD-RW drive, secured by the holder brackets.
b. Align the two interface connectors on the SmartDup dock with the
connectors on the back of the CD-ROM/RW drives and press into place.
2. Assemble the AC power adapter by connecting the round-pronged end of the
power cord into the connector on the power adapter.
3. Plug the 6-pin DIN connector end of the AC power adapter cable into the
DC IN connector on the SmartDup dock.
4. Optional: If you plan to use the SmartDup with your computer using the USB
PC interface cable:
a. Connect the USB-to-IDE connector into the PC Interface connector on
the SmartDup dock.
b. Connect the USB connector into an available USB port on your computer.
Note: this option features hot-swappable, plug-n-play operation. It can be
connected at any time.
5. Verify all your connections, then plug the AC power adapter cord to an AC
power outlet.

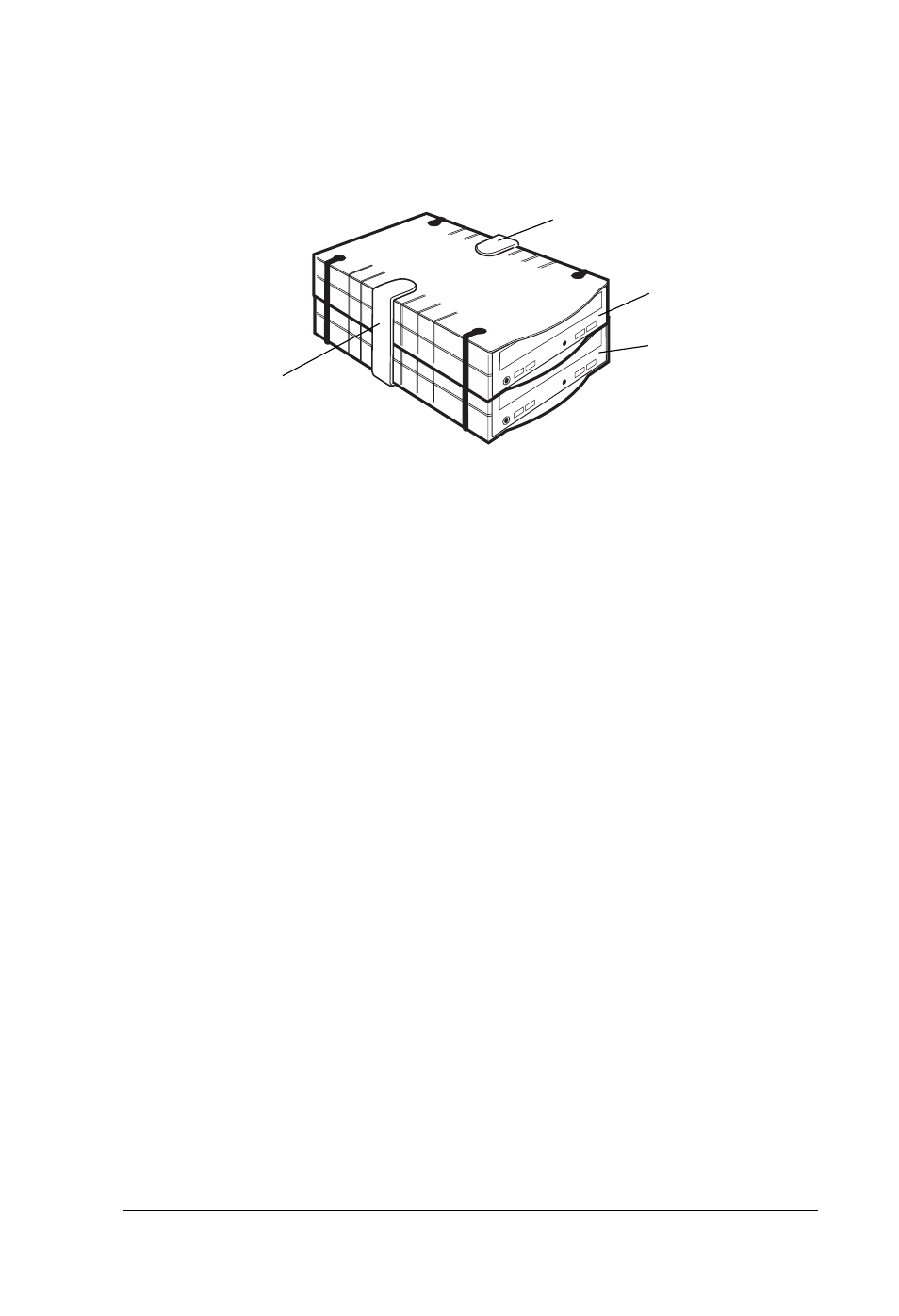

Holder Bracket
Holder Bracket
CD-ROM Boxes with Holder Brackets
CD-ROM Drive
CD-R/CD-RW Drive
