Btu (Low/High)

20,000/28,000

Type Gas

Propane/LP Gas Only

Ignition

Piezo

Manifold Pressure

7.9" W.C.

Inlet Gas Pressure

(in. of water)

Maximum

14"

Minimum

11"

Shipping Weight

100 lbs. T-stat Model
97 lbs. Manual Model

SPECIFICATIONS

REPLACEMENT PARTS

Note:

Use only original replacement parts. This will protect your

warranty coverage for parts replaced under warranty.

PARTS UNDER WARRANTY

Contact authorized dealers of this product. If they can’t supply
original replacement part(s), call DESA International’s Technical
Service Department at 1-866-672-6040.

When calling DESA International, have ready

• your name

• your address

• model and serial numbers of your fireplace

• how fireplace was malfunctioning

• tupe of gas used (propane/LP or natural gas)

• purchase date

Usually, we will ask you to return the part to the factory.

PARTS NOT UNDER WARRANTY

Contact authorized dealers of this product. If they can’t supply original
replacement part(s), call DESA International at 1-866-672-6040 for
referral information.

When calling DESA International, have ready

• model number of your fireplace

• the replacement part number

SERVICE HINTS

When Gas Pressure Is Too Low

• pilot will not stay lit

• burners will have delayed ignition

• fireplace will not produce specified heat

• propane/LP gas supply might be low

You may feel your gas pressure is too low. If so, contact your local
propane/LP gas supplier.

TECHNICAL SERVICE

You may have further questions about installation, operation, or
troubleshooting. If so, contact DESA International’s Technical
Service Department at 1-866-672-6040. When calling, please have
your model and serial numbers of your heater ready.

You can also visit DESA International’s technical services web site
at

www.desatech.com.

WIRING DIAGRAM

Red

Variable

Fan Switch

Fan Switch

(N.O.)

Green

White

On

110/115

V.A.C.

Blower

Motor

Black

Off

1

2

Black

Blue

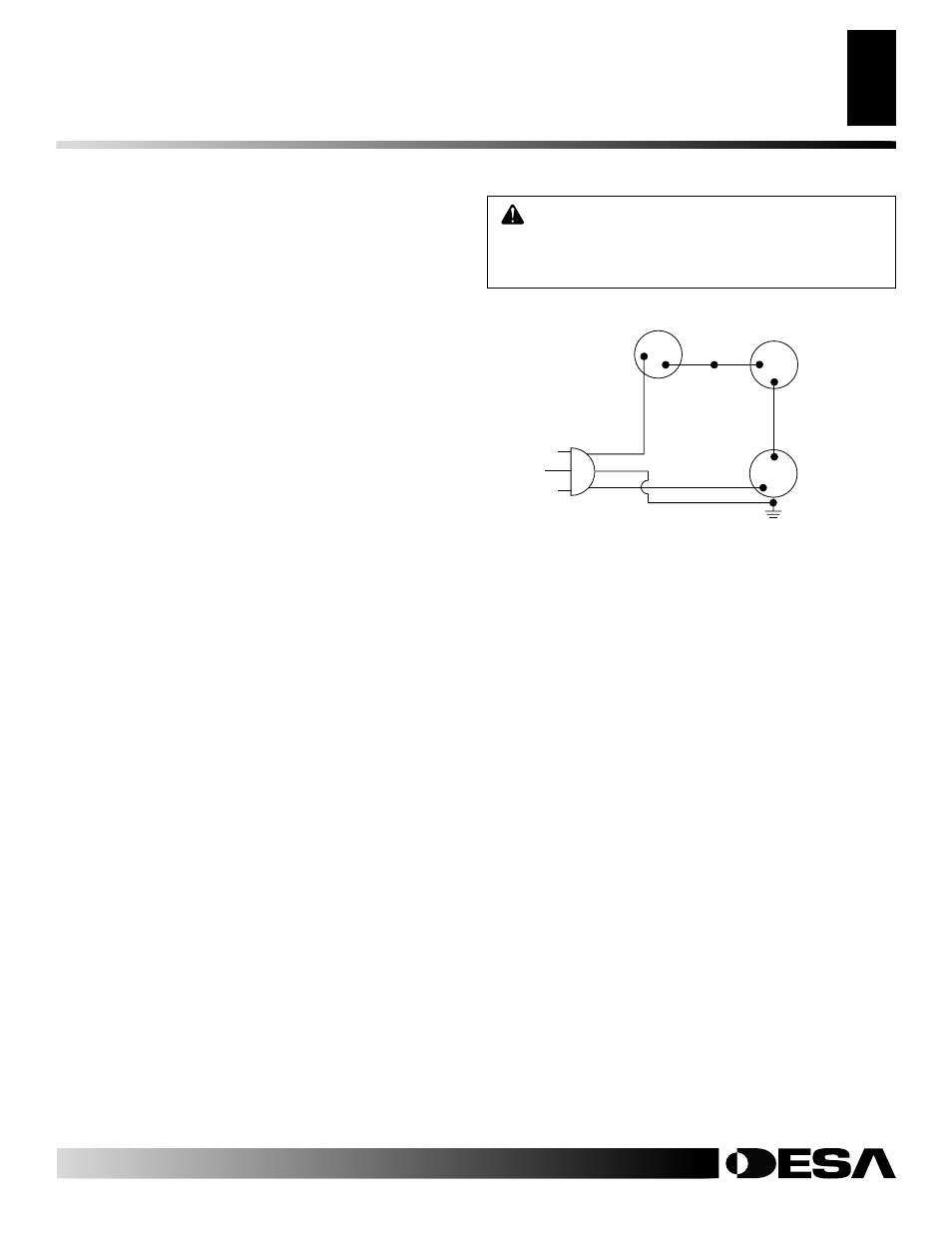

Figure 38 - Blower Wiring Diagram for Thermostat-Controlled
Models

CAUTION: Label all wires prior to disconnection

when servicing controls. Wiring errors can cause
improper and dangerous operation. Verify proper
operation after servicing.
