107156-01E
For more information, visit www.desatech.com For more information, visit www.desatech.com
14
A. This appliance has a pilot which must be lighted by hand.
When lighting the pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area
for gas. Be sure to smell next to the floor because some gas
is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in
your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire de-
partment.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by
hand, don’t try to repair it, call a qualified service techni-
cian or gas supplier. Force or attempted repair may result
in a fire or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect
the appliance and to replace any part of the control system
and any gas control which has been under water.
WARNING: If you do not follow these instructions
exactly, a fire or explosion may result causing prop-
erty damage, personal injury or loss of life.
FOR YOUR SAFETY
READ BEFORE LIGHTING
OPERATING FIREPLACE
INSTALLATION
Continued
WARNING: You must operate this fireplace with
the fireplace screen in place. Make sure fireplace
screen is in place before running fireplace.

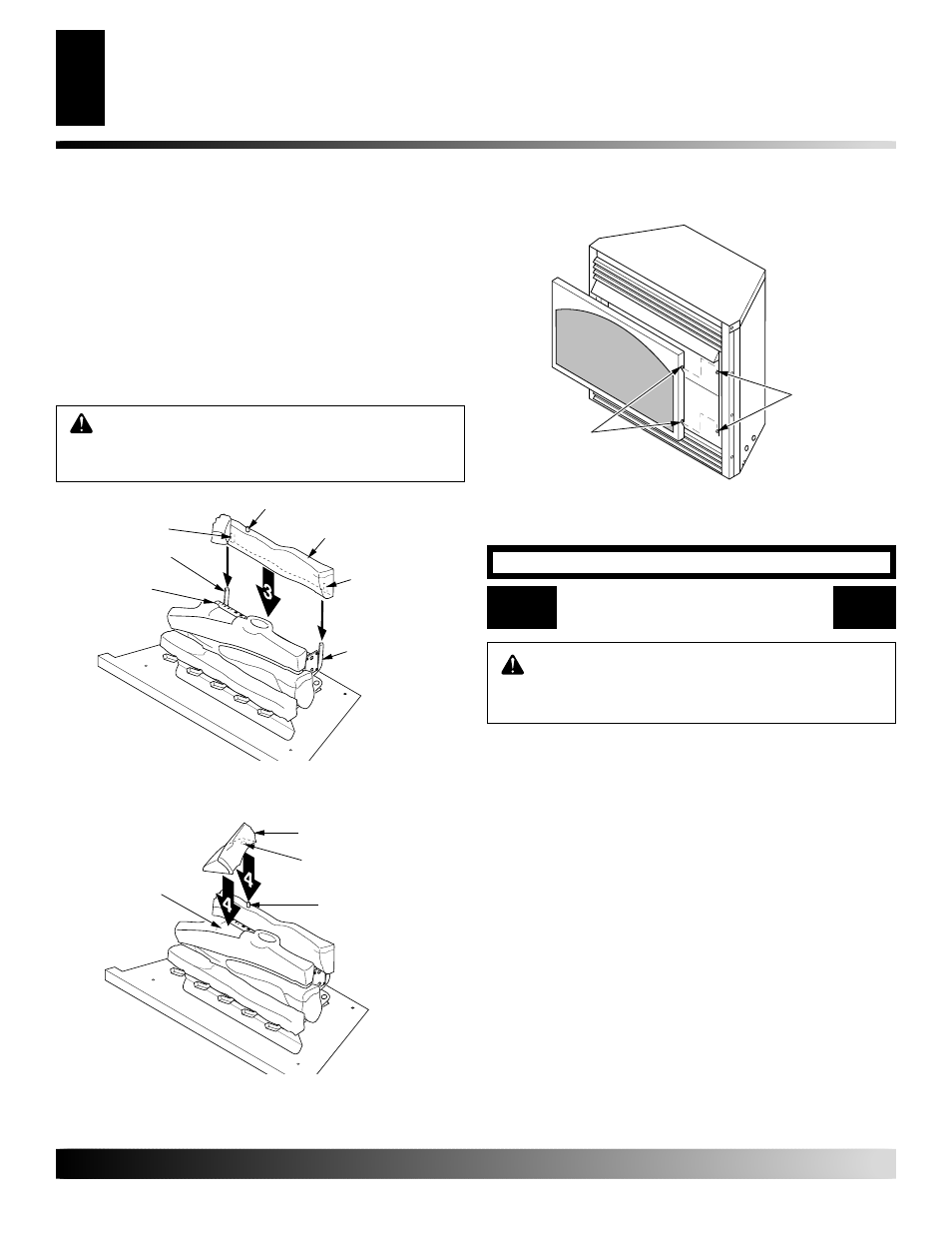

Figure 25 - Installing Rear Log (#3)
Figure 26 - Installing Crossover Log (#5)
Rear Log (#3)
Crossover Log (#4)
Hole
Peg
Cutout
Peg
Grate Prong
Rear Burner
Groove in
Back of Log
Groove in
Back of Log
Grate Prong
3. Slide the grooves in the back of the rear log (#3) against the
rear grate prongs. Make sure the peg on the log is on top (see
Figure 25).
4. Place the crossover log (#4) on the rear log and the middle log.
Make sure the peg on the rear log is in the hole in the bottom
of the crossover log. The crossover log should fit in the cutout
of the middle log (see Figure 26).
5. Install fireplace screen by slipping notches of fireplace screen
over screws on front of fireplace (see Figure 27).
Figure 27 - Installing Fireplace Screen
Notches
Screws for
Mounting
Screen
INSTALLATION
Installing Logs (Cont.)
OPERATING FIREPLACE - Thermostat-Controlled Models
For Your Safety Read Before Lighting
THERMOSTAT-CONTROLLED MODELS
