Figure 29 - Pilot
CAUTION: Do not try to adjust heating levels by
using the equipment shutoff valve.
LIGHTING INSTRUCTIONS
WARNING: You must operate this fireplace with
the fireplace screen in place. Make sure fireplace
screen is installed before running fireplace.
NOTICE: During initial operation of new fireplace,
burning logs will give off a paper-burning smell.
Orange flame will also be present. Open window to
vent smell. Operate fireplace on HI position to burn
off odor. This will only last a few hours.
1. STOP! Read the safety information, page 14 column 2.
2. Make sure equipment shutoff valve is fully open.
3. Turn control knob clockwise
Clockwise
to the OFF position
(see Figure 28).
4. Wait five (5) minutes to clear out any gas. Then smell for
gas, including near the floor. If you smell gas, STOP! Fol-
low “B” in the safety information, page 14 column 2. If you
don’t smell gas, go to the next step.
5. Turn control knob counterclockwise
C-clockwise
to the PI-
LOT position. Press in control knob for five (5) seconds
(see Figure 28).
Note: If running fireplace for first time, there will be air in
gas line. You may need to press in control knob for 30 seconds
or longer. This will allow air to bleed from the gas system.
6. Continue pressing control knob in. Press and release ignitor
button. This will light pilot. The pilot is attached to the front
burner. If needed, keep pressing ignitor button until pilot lights.
Note: If pilot does not stay lit, contact a qualified service
person or gas supplier for repairs. Until repairs are made,
light pilot with match. To light pilot with match, see Manual
Lighting Procedure, column 2.
7. Keep control knob pressed in for 30 seconds after lighting
pilot. After 30 seconds, release control knob.
Note: If pilot goes out, repeat steps 3 through 7. This fire-
place has a safety interlock system. Wait one (1) minute for
system to reset before lighting pilot again.
• If control knob does not pop out when released, contact
a qualified service person or gas supplier for repairs.
8. Turn control knob counterclockwise
C-clockwise
to desired
heating level. The burners should light. Set control knob to
any heat level between HI and LO.

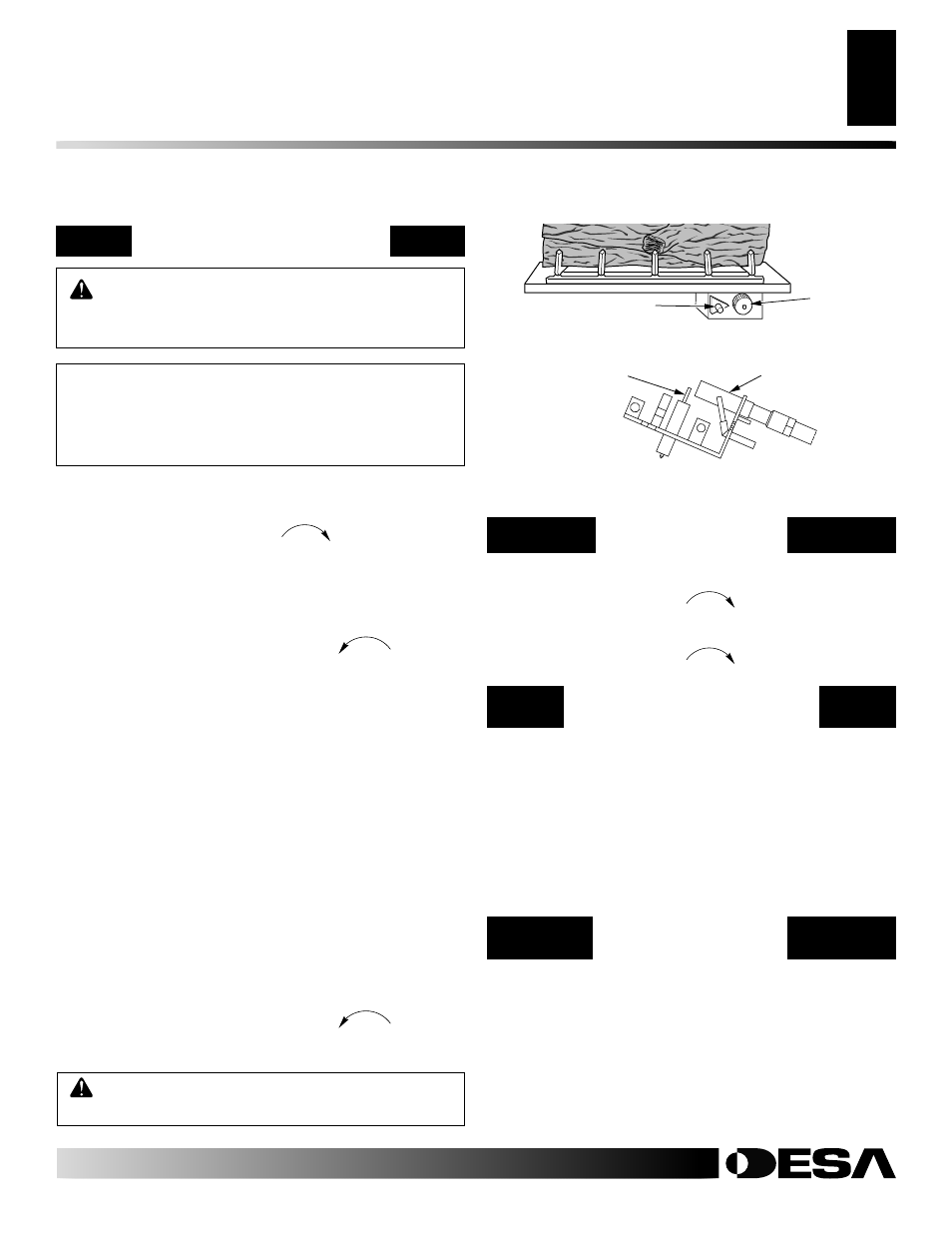

Figure 28 - Control Knob and Ignitor Button Location
Ignitor Button
Control Knob
Ignitor Electrode Pilot Burner
OPERATING FIREPLACE
Continued
TO TURN OFF GAS
TO APPLIANCE
Shutting Off Fireplace
Turn control knob clockwise
Clockwise
to the OFF position.
Shutting Off Burners Only (pilot stays lit)
Turn control knob clockwise
Clockwise
to the PILOT position.
You can set the thermostat control knob to any comfort level
between HI and LO. The thermostat will gradually modulate
the heat output and flame height from higher to lower settings,
or pilot, in order to maintain the comfort level you select. The
ideal comfort setting will vary by household depending upon the
amount of space to be heated, the output of the central heating
system, etc.
Note: Selecting the HI setting will cause the burner to remain
on without modulating down in most cases.
THERMOSTAT CONTROL
OPERATION
OPERATING FIREPLACE - Thermostat-Controlled Models
Lighting Instructions
To Turn Off Gas to Appliance
Thermostat Control Operation
Manual Lighting Procedure
MANUAL LIGHTING
PROCEDURE
1. Follow steps 1 through 5 under Lighting Instructions,
column 1.
2. Depress control knob and light pilot with match.
3. Keep control knob pressed in for 30 seconds after lighting
pilot. After 30 seconds, release control knob. Now follow
step 8 under Lighting Instructions, column 1.
