10 Vidikron Vision Model 30 Owner’s Operating Manual
Overview
1. Exhaust Vent
2. Focus Ring and Zoom Ring Access
Adjust the focus and zoom of image.
3. Top IR Sensor
4. Status LEDs
See “Control Panel” on page 13.
5. Intake Vent
6. Front IR Sensor
7. Vidikron Logo
Can be rotated to match floor or
ceiling installation. See “Vidikron
Logo” on page 15.
8. Projection Lens

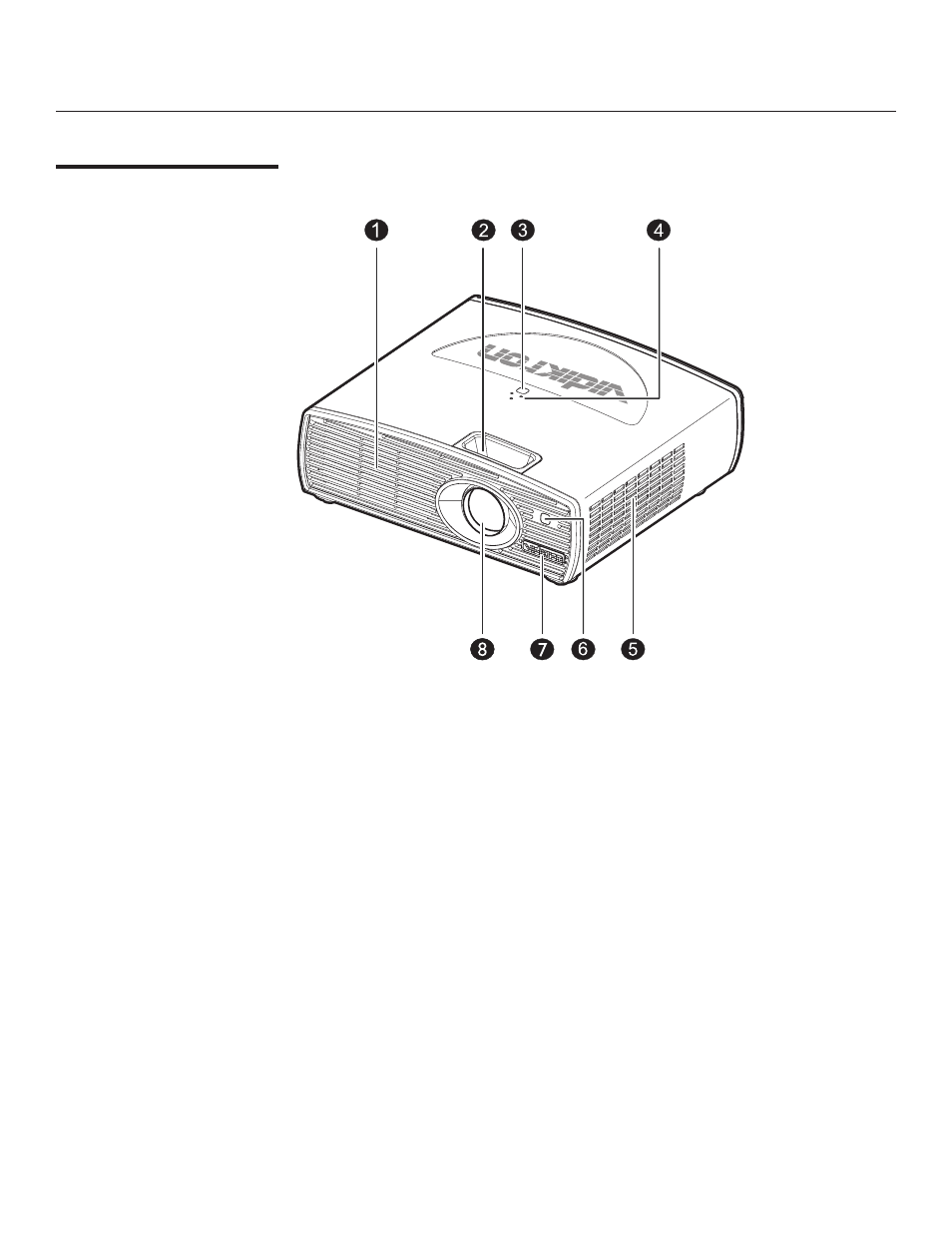

Front / Top View
