ViewSonic PJ766D
12
Connecting Input Devices
A PC or notebook computer as well as video devices can be connected to the projector at the same time.
Video devices include DVD, VCD, and VHS players, as well as movie camcorders and digital still cameras.
Check the user manual of the connecting device to confirm it has the appropriate output connector.

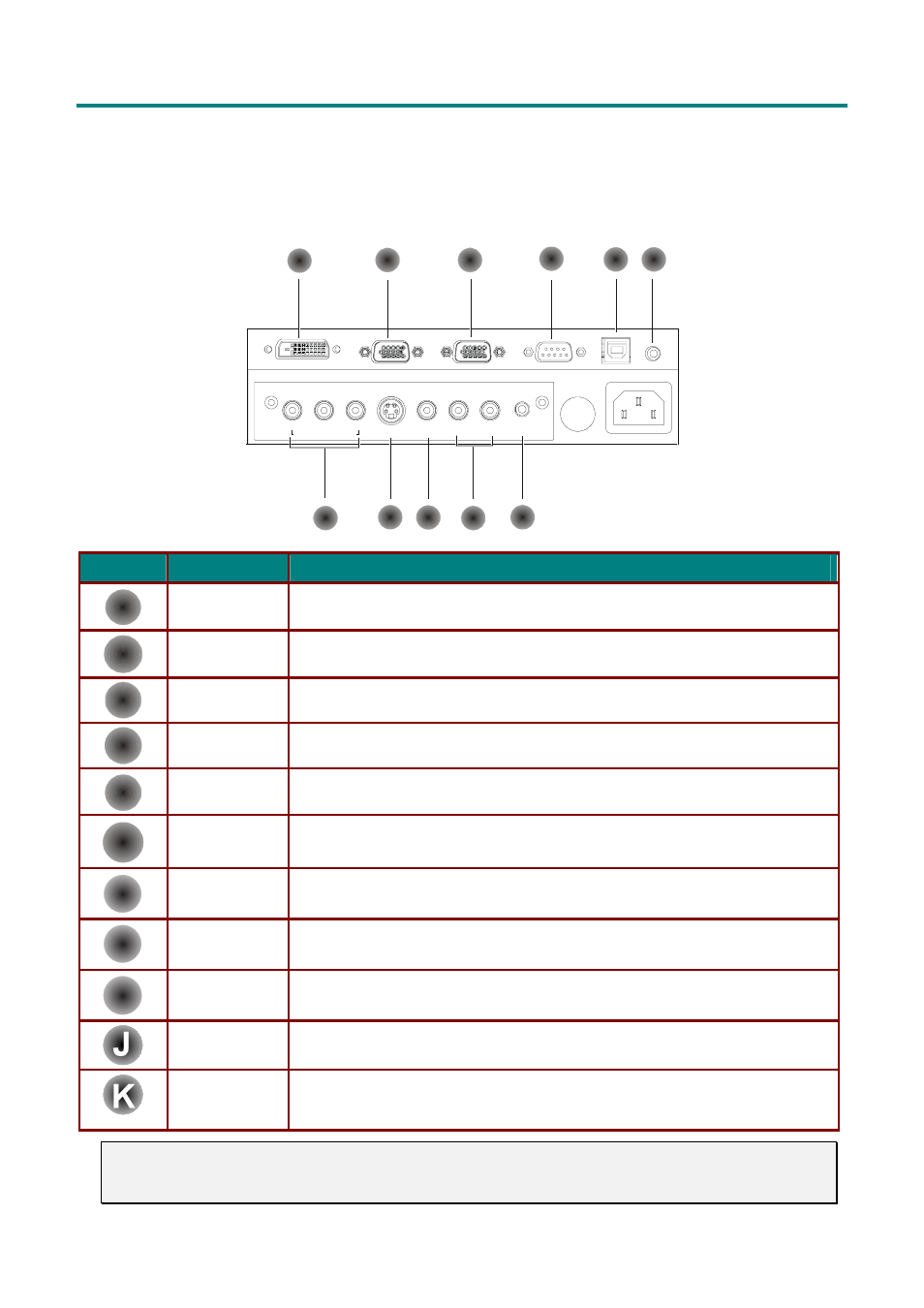

DVI-I IN
Y
COMPONENT VIDEO IN
P /C
B
S
P /C
R
R
RGB IN
S-VIDEO IN
VIDEO IN
L-AUDION IN -R
AUDIO OUT
RGB OUT
RS-232C
USB
AUDIO-IN
B
C
A
D
E
F
G
H
J
K
I
I
TEM
L
ABEL
D
ESCRIPTION
A
DVI-I
Connect the supplied DVI cable from a computer.
B
RGB in
Connect a VGA cable (not supplied) from a computer.
C
RGB out
Connect a VGA cable (not supplied) to a monitor.
D
RS-232
Reserved for installation control and firmware upgrades.
E
USB
Connect the USB cable (supplied) from a computer.
F
Audio-in
Connect an audio cable (not supplied) from the computer’s audio-out connector.
G
Audio-out Audio
loop-thru
H
L-Audio in-R
Connect the audio cable (not supplied) from an audio input device.
I
Video
Connect a composite video cable (not supplied) from a video device.
S-video
Connect the supplied S-video cable from a video device.
Component
video in
Connect a component video cable (not supplied) from a video device.
Warning:
As a safety precaution, disconnect all power to the projector and connecting devices before making
connections.
