ViewSonic PJ766D
5

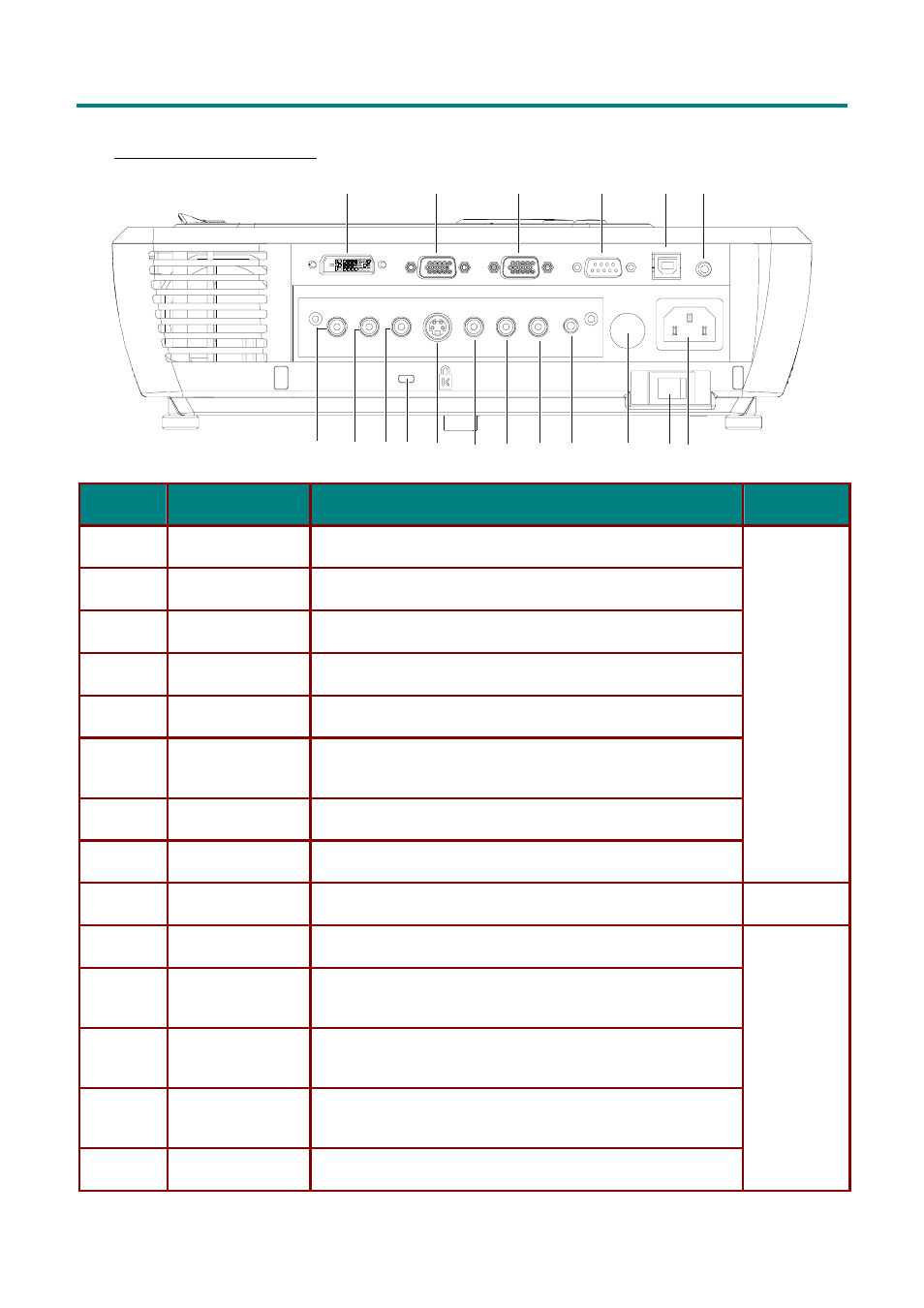

Rear view—connectors
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
I
TEM
L
ABEL
D
ESCRIPTION
S
EE PAGE
:
1.
DVI-I
Connect the DVI cable (supplied) from a computer
2.
RGB IN
Connect a VGA cable (not supplied) from a computer
3.
RGB OUT
Connect to a monitor
4.
RS-232
Installation control and firmware upgrades
5.
USB
Connect the USB cable (supplied) from a computer
6.
Audio-in
Connect the audio cable (not supplied) from the input de-
vice
7.
Power connector
Connect the supplied power cord
8.
Main power
Turns the main power on or off
12
9.
IR receiver
Receiver for IR signal from remote control
8
10.
Audio-out Audio
loop-thru
11.
Audio-in-R
Connect an RCA audio cable (not supplied) from the input
device right channel
12.
Audio-in-L
Connect an RCA audio cable (not supplied) from the input
device left channel
13.
Video
Connect a composite video cable (not supplied) from a
video device
14.
S-video
Connect the supplied S-video cable from a video device
12
