Connection ports – VIEWSONIC PJD5123 User Manual
Page 13

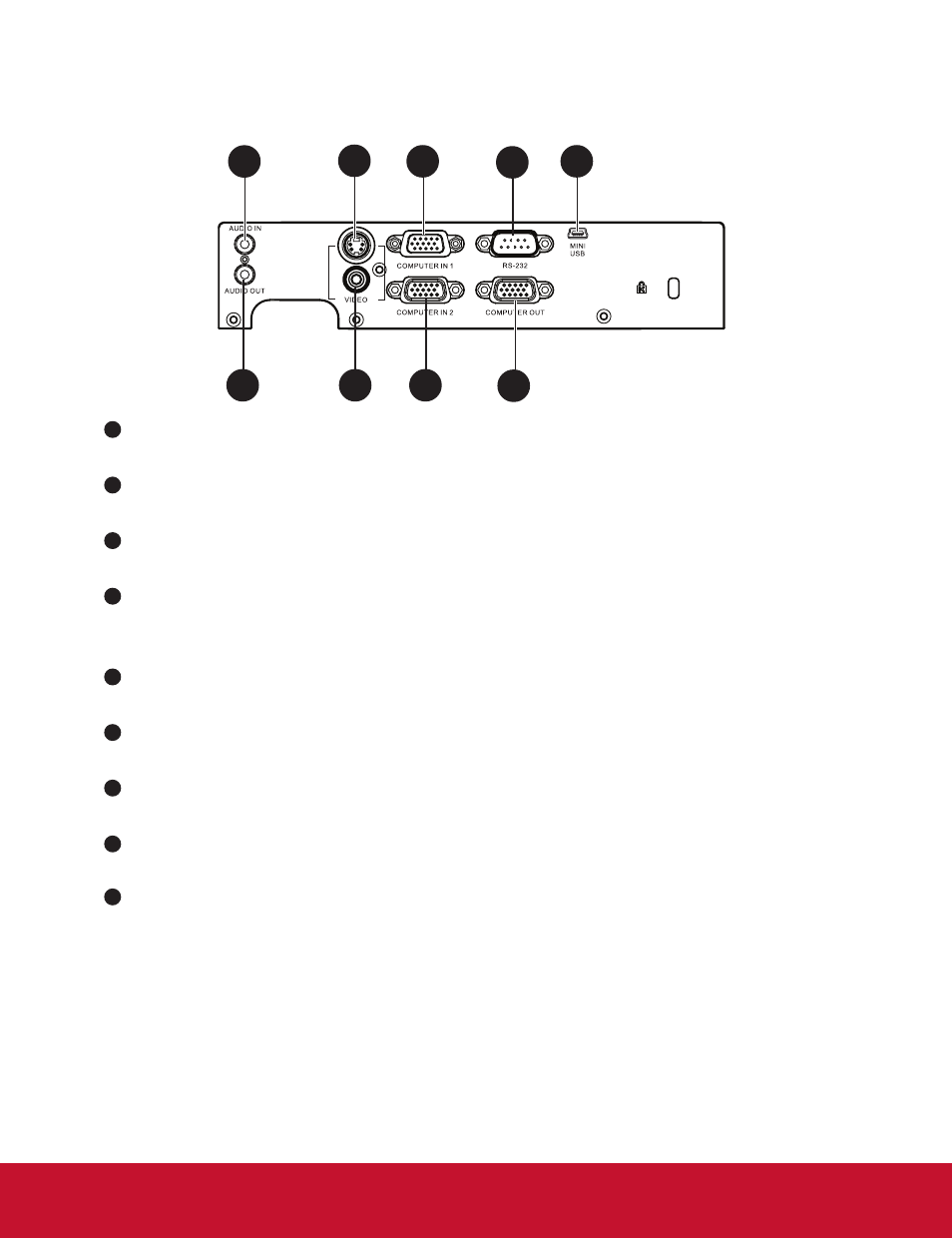

Connection Ports
AUDIO IN
Connect an audio output from video equipment or computer to this jack.
S-VIDEO
Connect S-Video output from video equipment to this jack.
COMPUTER IN 1
Connect image input signal (analog RGB or component) to this jack.
RS-232
When operating the projector via a computer, connect this to the controlling
computer's RS-232C port.
MINI USB
This connector is for firmware update and mouse function support.
COMPUTER OUT
Connect to a computer display, etc.
COMPUTER IN 2
Connect image input signal (analog RGB or component) to this jack.
VIDEO
Connect composite video output from video equipment to this jack.
AUDIO OUT
Connect to a speaker or other audio input equipment.
6
9
1
2
3
4
5
7
8
1
2
3
4
5
6
7
8
9
10
