LED Status Color Description
Power On Green Power On
On Green
The port is successfully connecting with
the device on 100Mbps.
Blinks Green
The port is receiving or transmitting
data.
LNK /
ACT
Off No device attached.
On Orange
The port is operating in Full-duplex
mode and device is attached.
Blinks Orange Collision of Packets occurs in the port.
FDX /
COL
Off
Half-duplex mode or no device
attached.
Table 2-1. The description of LED Indicators
Rear Panel
The Console port and 3-pronged power plug is located at the Rear
Panel of the SmartGST-801M as shown in Figure 2-7. The Switches
will work with AC in the range 100-240V AC, 50-60Hz.

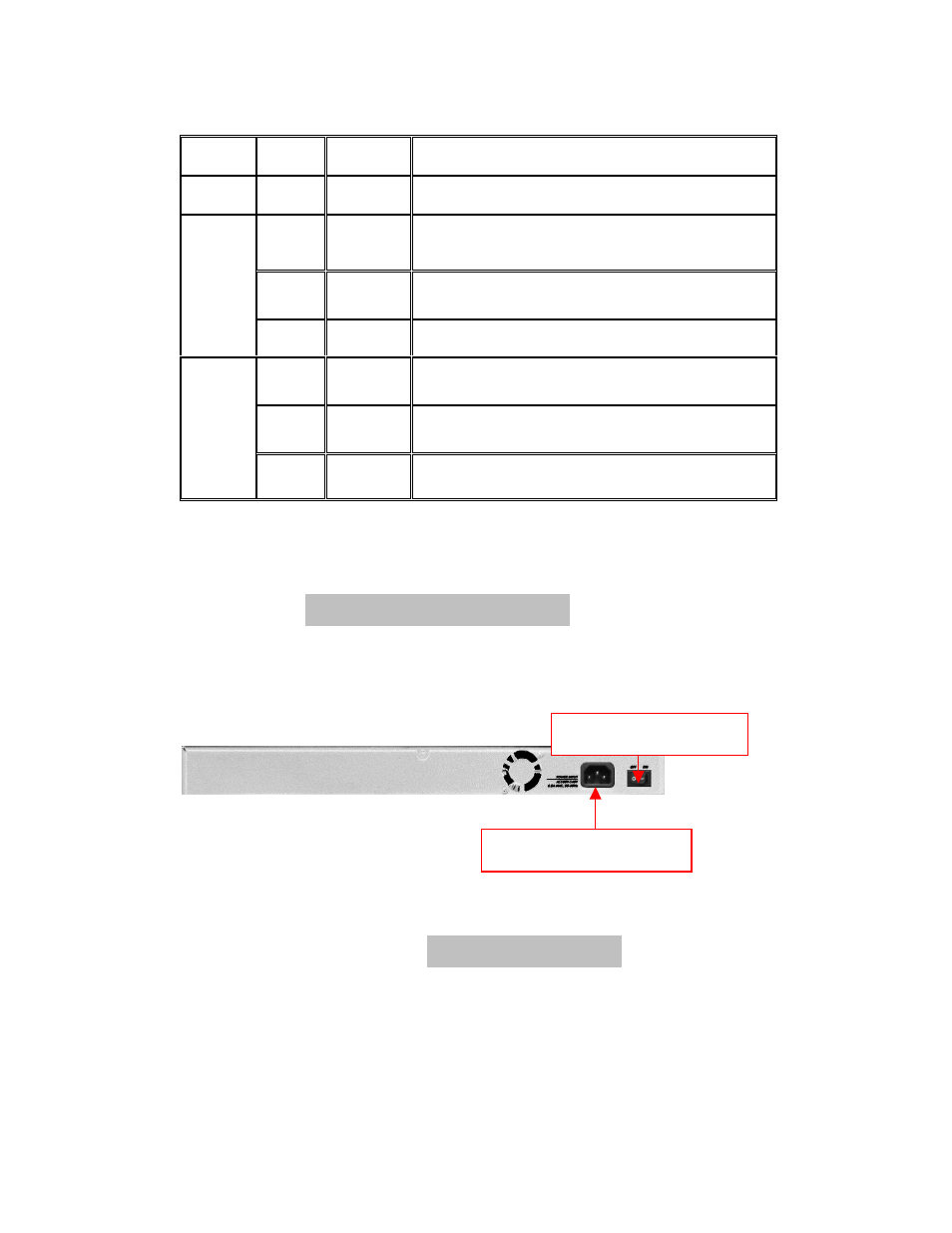

Figure 2-7 The Rear Panel of the SmartGST-801M
Desktop Installation
Set the switch on a sufficiently large flat space with a power outlet
nearby. The surface where you put your Switch should be clean,
smooth, level, and sturdy.
Make sure there is enough clearance around the Switch to allow
attachment of cables, power cord and air circulation.
Power on/off switch
AC Power Plug Socket
