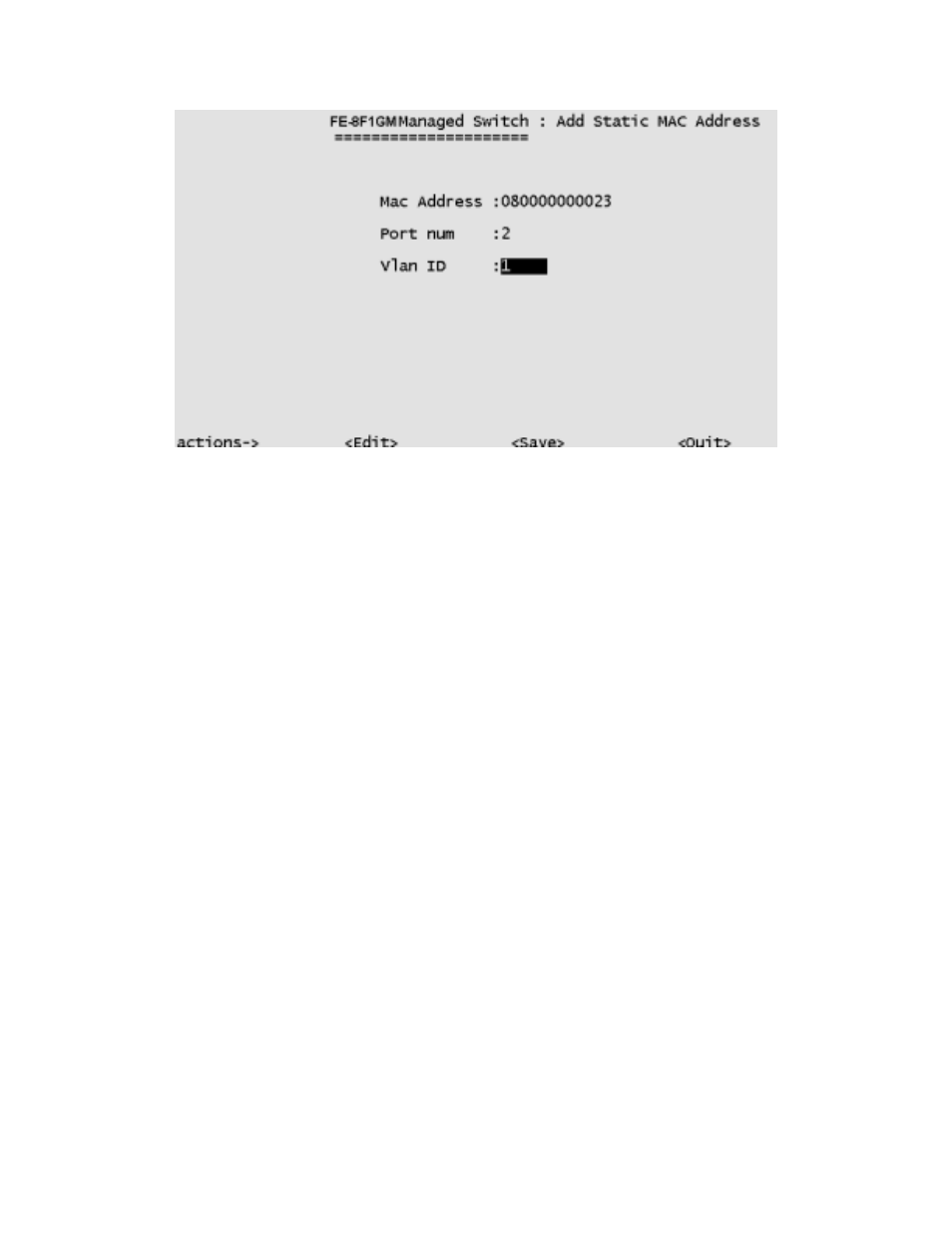

Add static MAC address
1.
Press --> key to add a static MAC or edit an address.
2. Enter the MAC address which the port should permanently forward
traffic to and from, regardless of the device s network activity.
3. In the Port num item, enter the port number.
4. If tag-based (802.1Q) VLAN is set up on the switch, static addresses
are associated with individual VLANs. Type the VID to associate with
the MAC address.
5. Press ESC to go back to the action menu line and then select
to save all configured values.
Edit static MAC address
1.
Press key to modify a static MAC address.
2. Choose the MAC address that you want to modify and then press
enter.
3. Press key to modify all the items.
4. Press ESC to go back to the action menu line and then select
to save all configured values.
Delete static MAC address
1. Press key to delete a static MAC address.
2.
Choose the MAC address that you want to modify and then press
enter.
3. After deleting static MAC address, press to complete the
deleting operation.
