5-4. Administrator
Management functions include: IP address, Switch settings, Console
port information, Port controls, Link aggregation, Filter database,
VLAN Configuration, Spanning Tree, Port Mirror, SNMP, Security
Manager, TFTP Update Firmware, Configuration Backup, Reset
system, and Reboot.

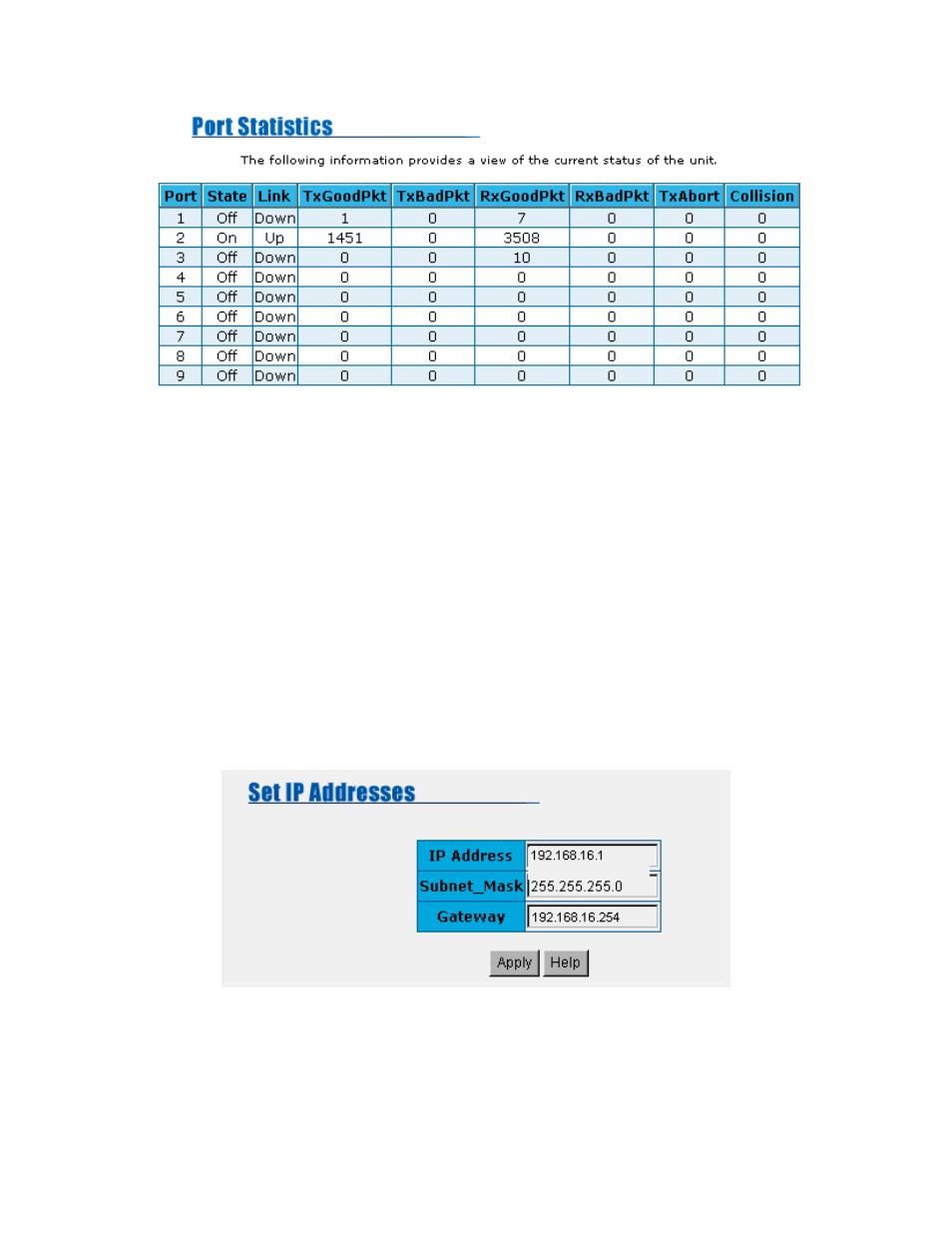

5-4-1. IP Address
1. Users can configure the IP Settings and fill in the new values.
2. Reset switch and use new IP address to browser this web
management.
Default IP: 192.168.16.1
Subnet_mask: 255.255.255.0
Gateway: 192.168.16.254
5-4-2. Switch Setting
5-4-2-1. Basic
1. Description: Displays the device name.
2. MAC Address: The unique hardware address assigned
by manufacturer (default)
3. Firmware Version: Displays the switch s firmware
