Univex 5100-02-IT - Manual (Page 8)

Model 5100-02-IT Combustible Gas Sensor Module
Page: 6

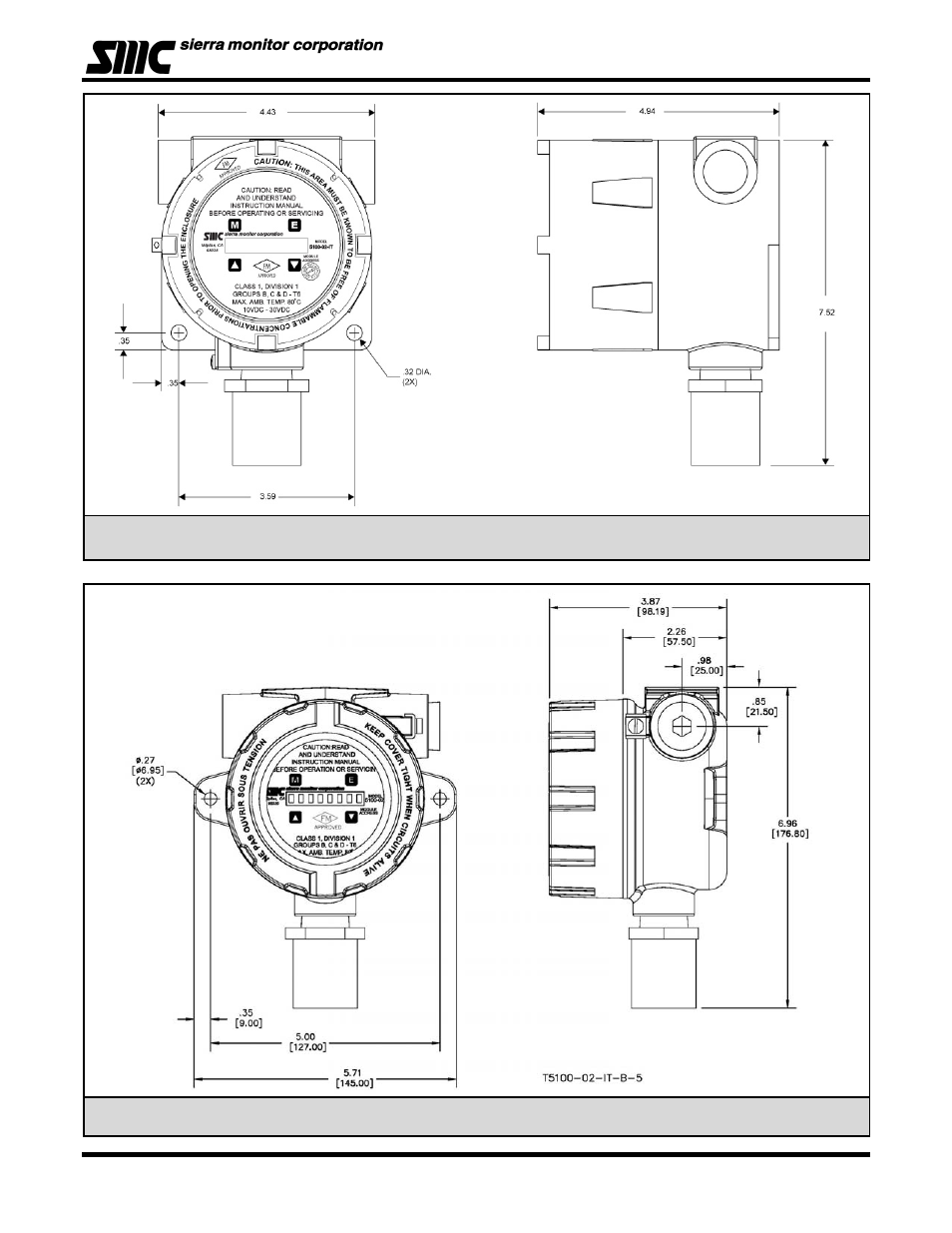

Figure 1 - 3: Model 5100-02-IT-A1 (and A2) Combustible Sensor – Cast Aluminum Enclosures, Dimensions
Figure 1 - 2: Model 5100-02-IT-S1 (and S2) Combustible Sensor – 316SS Enclosures, Dimensions
