Model 5100-02-IT Combustible Gas Sensor Module
Page: 5
1.6 INTERCONNECT WIRING
Not supplied with the sensor module, but necessary to the installation and operation is the multi conductor
wiring which connects the module to its power source and controller. Before this wiring is installed it is
important to read and understand the control system installation instructions to determine wiring alternatives
requirements and alternatives.
1.7 POWER REQUIREMENTS
IT modules operate on DC power between 10 VDC and 30 VDC. Regulated DC power must be supplied from
a separate source, or from an approved Sentry or IT controller.

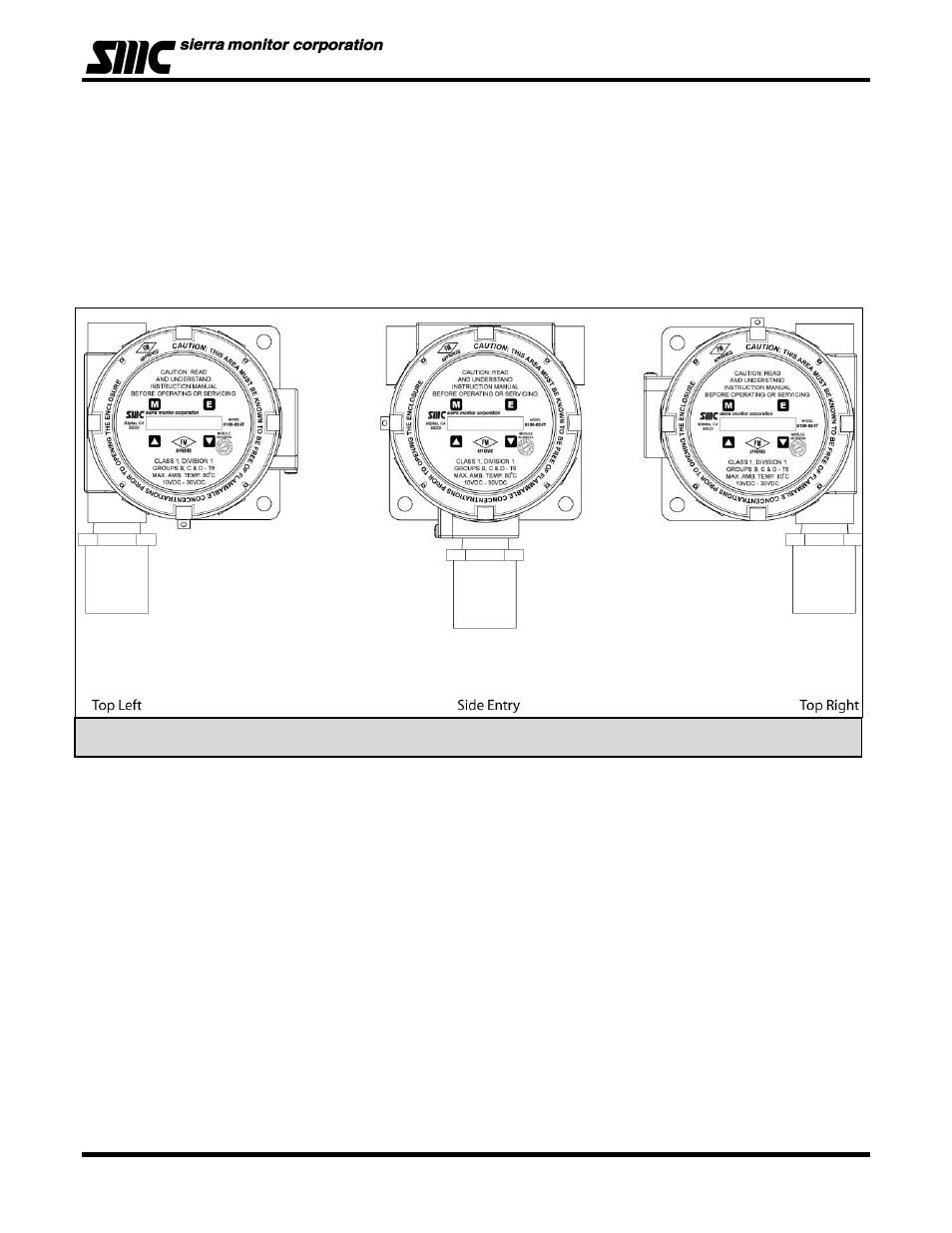

Figure 1 - 1: Model 5100-02-IT Combustible Sensor – Mounting Options
