18
User’s Manual

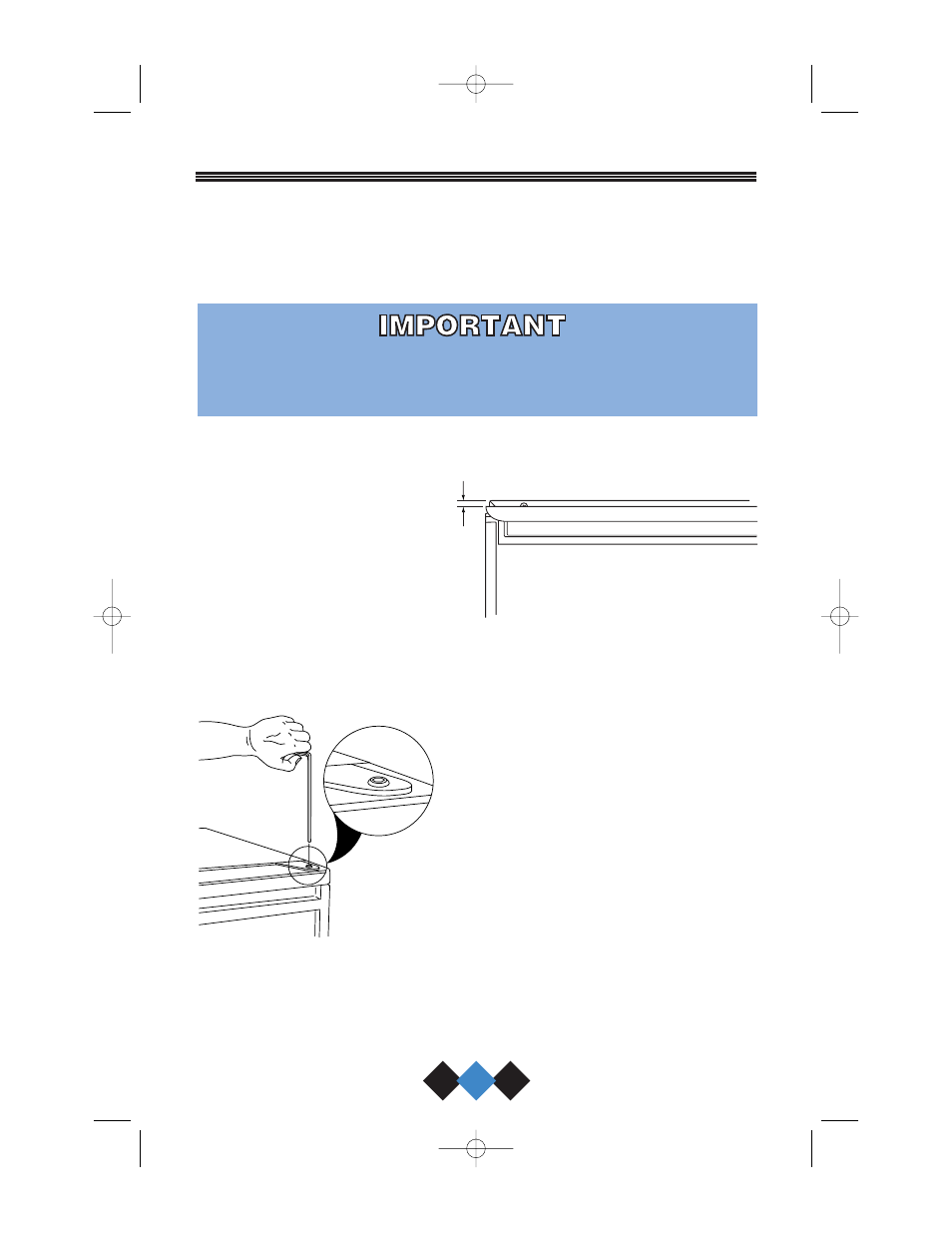

DOOR ADJUSTMENT
Your door is aligned at the factory before shipment. Occasional
re-adjustment may be necessary, especially if an Overlay Panel is
installed. The following procedure will correct for up to 1/4" alignment.
The door should never be flush with the top of the cabinet.
Even when level, the top edge of the door will be 1/8" below
the top of the cabinet (Figure 17).
To adjust :
1. Compare the top edge of
the door (opposite the
hinges) to the top edge of
the cabinet and note the
type (up or down) of adjust-
ment needed.
2. Remove the top hinge
pivot pin with a 7/64" hex
wrench (Figure 18) and lift
door off bottom hinge pin.
Be careful not to lose door
closers (Figure 20).
3. With door upside-down, loosen
but do not remove the two hinge
plate screws.
1/8"
DOOR001
Figure 17
UL310
Figure 18
