TL-WR941N/TL-WR941ND Wireless N Router
- 63 -

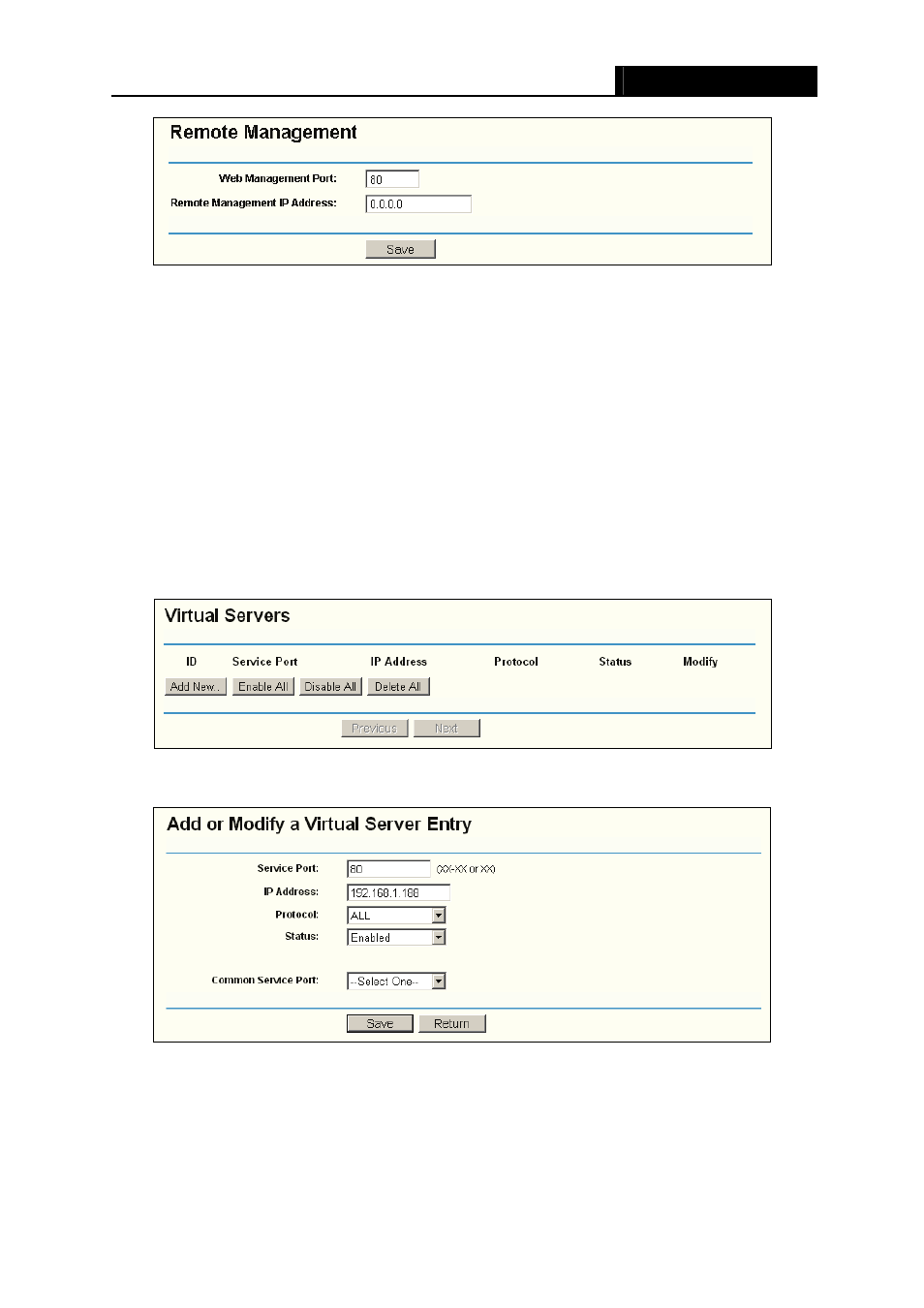

Figure A-7 Remote Management
)
Note:
If the above configuration takes effect, to configure to the router by typing
http://192.168.1.1:88 (the router’s LAN IP address: Web Management Port) in the address
field of the Web browser.
3) Login to the router, click the “Forwarding” menu on the left of your browser, and click the
"Virtual Servers" submenu. On the "Virtual Server" page, click Add New, then on the
“Add or Modify a Virtual Server” page, enter “80” into the blank behind the “Service Port”,
and your IP address behind the IP Address, assuming 192.168.1.188 for an example,
remember to “Enable” and “Save”.
Figure A-8 Virtual Servers
Figure A-9 Add or Modify a Virtual server Entry
5. The wireless stations cannot connect to the router.
1) Make sure the "Wireless Router Radio" is enabled.
2) Make sure that the wireless stations' SSID accord with the router's SSID.
