TL-WR941N/TL-WR941ND Wireless N Router
- 51 -

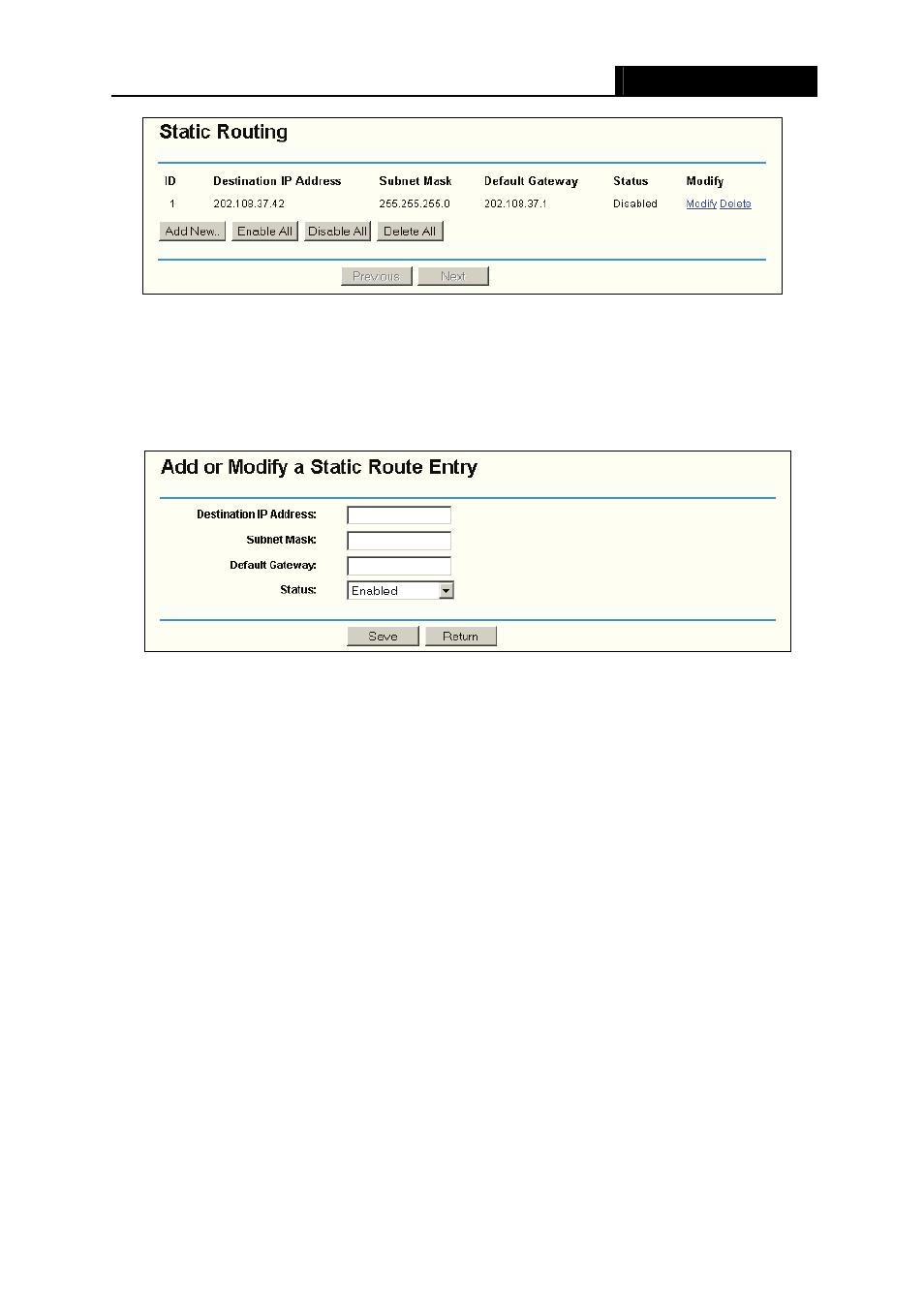

Figure 4-38 Static Routing
To add static routing entries:
1. Click Add New… shown in Figure 4-38, you will see the following
screen.
Figure 4-39 Add or Modify a Static Route Entry
2. Enter the following data:
¾ Destination IP Address - The Destination IP Address is the address of the network or
host that you want to assign to a static route.
¾
Subnet Mask - The Subnet Mask determines which portion of an IP Address is the
network portion, and which portion is the host portion.
¾ Gateway - This is the IP Address of the gateway device that allows for contact between
the router and the network or host.
3. Select Enabled or Disabled for this entry on the Status pull-down list.
4. Click the Save button to make the entry take effect.
Other configurations for the entries:
Click the Delete button to delete the entry.
Click the Enable All button to enable all the entries.
Click the Disable All button to disable all the entries.
