TL-WR941N/TL-WR941ND Wireless N Router
- 5 -
1.4.2 The Rear Panel

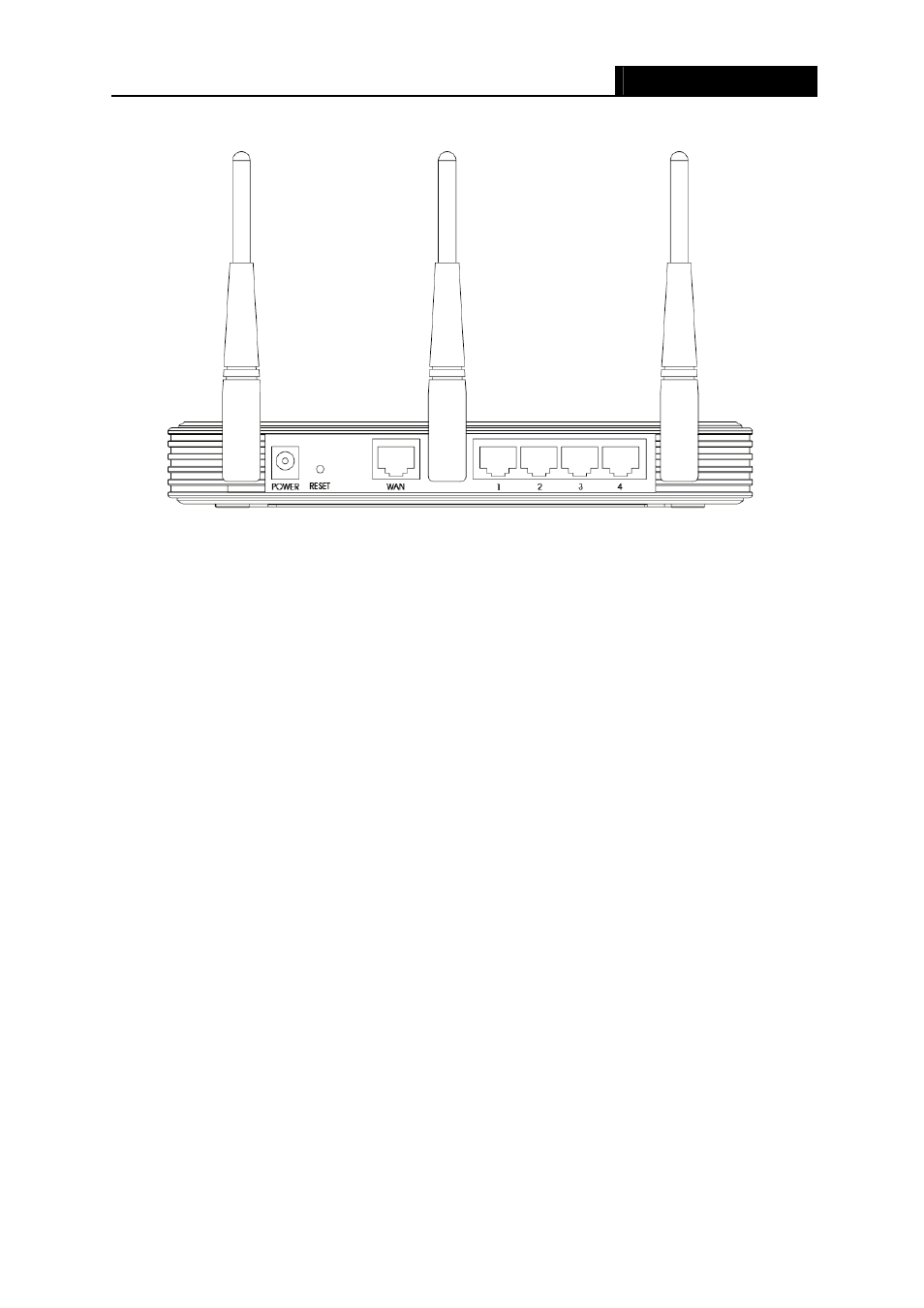

Figure 1-2 Rear Panel sketch
The following parts are located on the rear panel (View from left to right).
¾ Power socket: The Power socket is where you will connect the power adapter. Please use
the power adapter provided with this TL-WR941N/941ND Wireless N
Router.
¾ LAN (1,2,3,4): These ports (1, 2, 3, 4) connect the router to the local PC(s).
¾ WAN: This WAN port is where you will connect the DSL/cable Modem, or Ethernet .
¾ Reset button
There are two ways to reset to the router's factory defaults:
1) Use the Factory Defaults function on System Tools -> Factory Defaults page in the
router's Web-based Utility.
2) Use the Factory Default Reset button: Press the Reset button for five seconds
and then wait for the router to reboot.
¾ Wireless antenna: To receive and transmit the wireless data.
