TL-WR941N/TL-WR941ND Wireless N Router
- 23 -
applications. If you cannot get the IP Address normally, you can choose this option.
(It is rarely required.)
2. If you choose Static IP, you should have the fixed IP Parameters given by your ISP. The
Static IP settings page will appear, shown in Figure 4-7 .

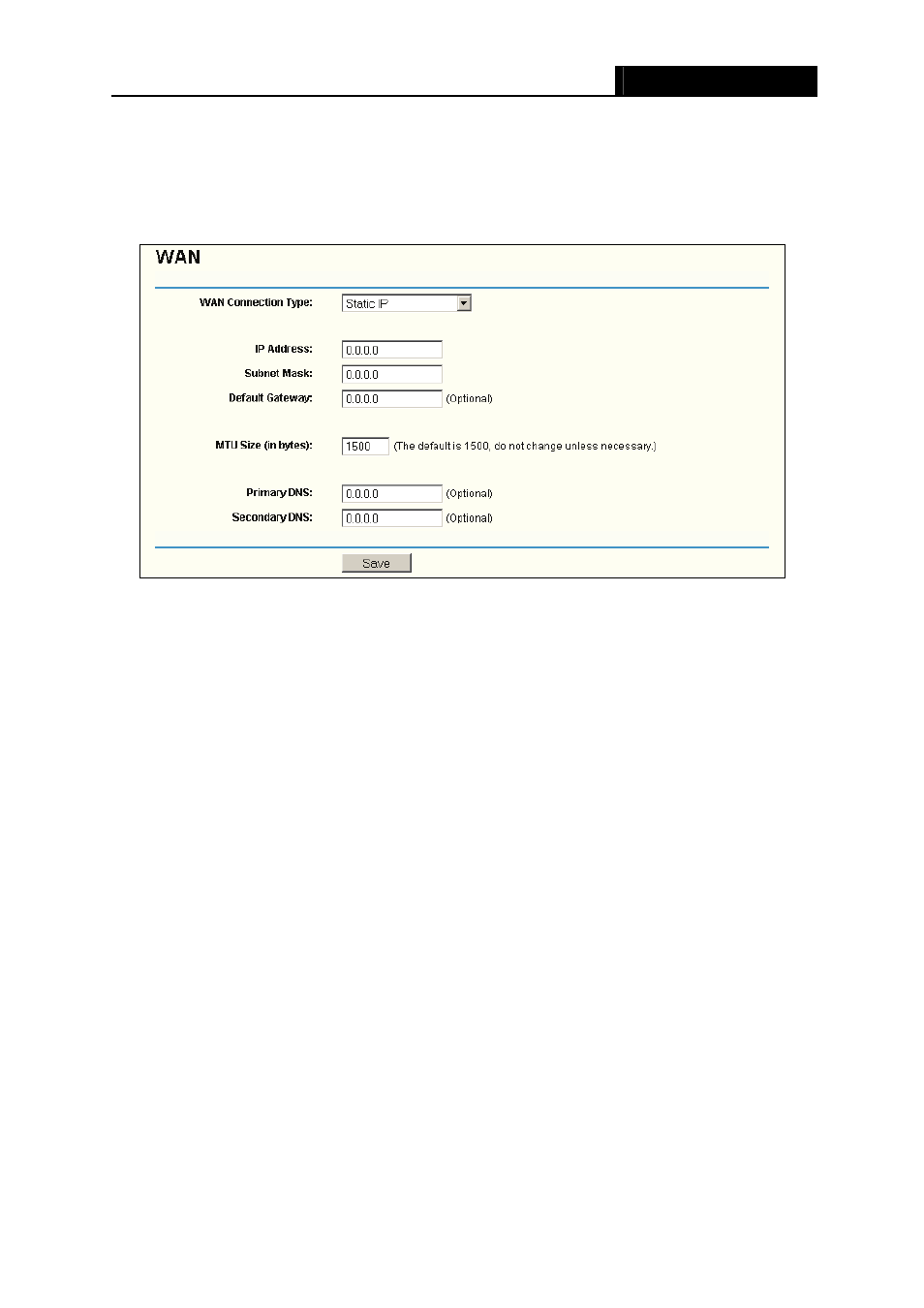

Figure 4-7 WAN - Static IP
¾
IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.
¾ Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP,
usually is 255.255.255.0.
¾ Default Gateway - (Optional) Enter the gateway IP address in dotted-decimal notation
provided by your ISP.
¾ MTU Size - The normal MTU (Maximum Transmission Unit) value for most Ethernet networks
is 1500 Bytes. It is not recommended that you change the default MTU Size unless required
by your ISP.
¾ Primary/Secondary DNS - (Optional) Enter one or two DNS addresses in dotted-decimal
notation provided by your ISP.
3. If you choose PPPoE, you should enter the following parameters ( Figure 4-8 ):
