TL-WR941N/TL-WR941ND Wireless N Router
- 44 -

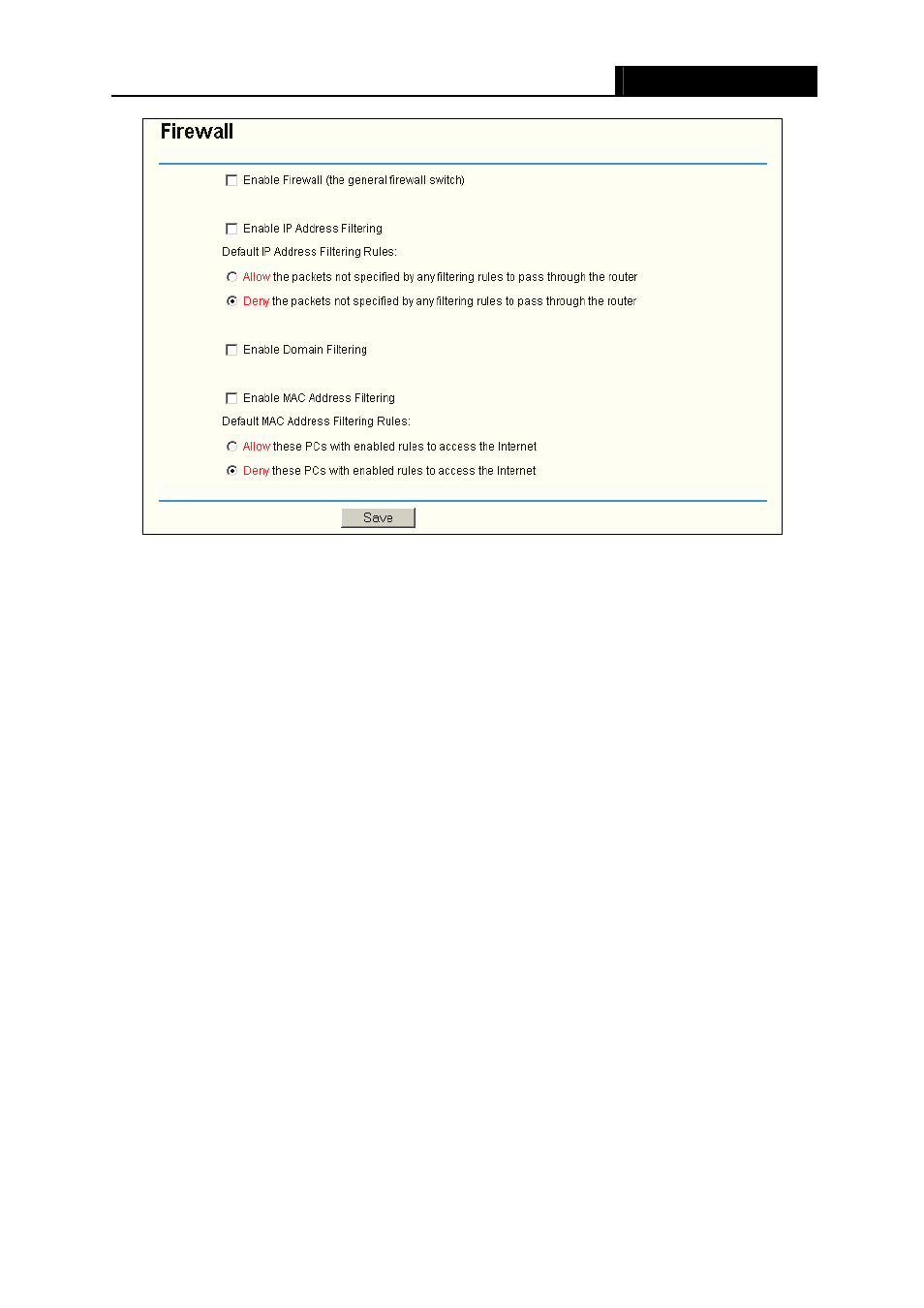

Figure 4-31 Firewall
¾
Enable Firewall - the general firewall switch is on or off.
¾
Enable IP Address Filtering - set IP Address Filtering is enabled or disabled. There are two
default filtering rules of IP Address Filtering, either Allow or Deny passing through the router.
¾
Enable Domain Filtering - set Domain Filtering is enabled or disabled.
¾
Enable MAC Filtering - set MAC Address Filtering is enabled or disabled. You can select the
default filtering rules of MAC Address Filtering, either Allow or Deny accessing the router.
4.9.2 IP Filtering
Choose menu “Security→IP Filtering”, you can configure the IP Address filtering rule in the
screen (shown in Figure 4-32). The IP Address Filtering feature allows you to control the Internet
Access of some specific users based on their IP addresses.
