Preparations

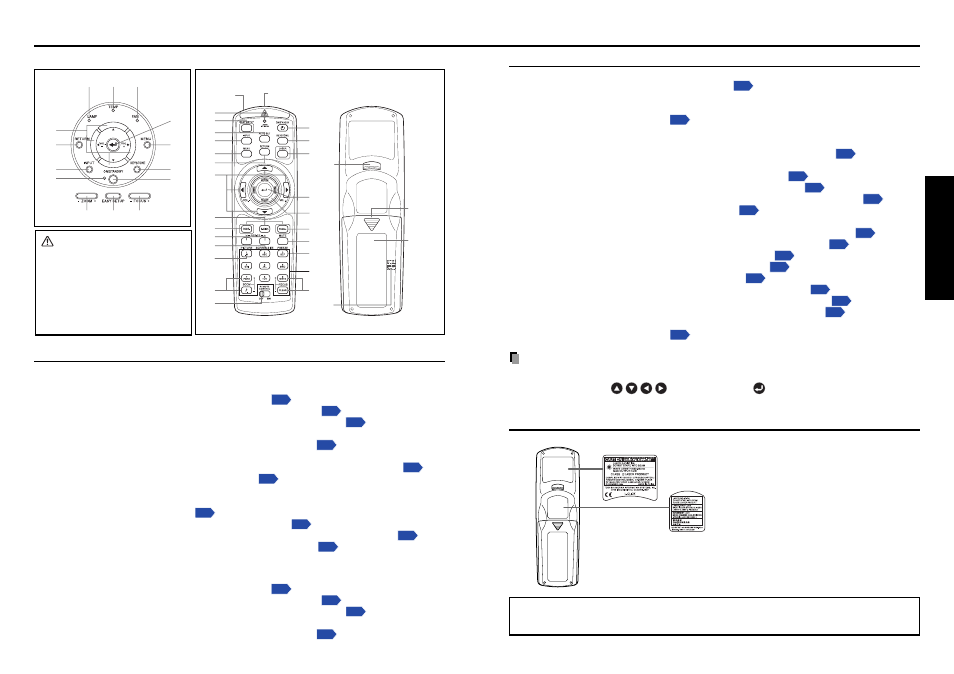

Names of each part on the control panel and remote control
Control panel Remote Control
Name : Main Function
Control panel
(1) ENTER button : Accepts the selected mode.
(2) MENU button : Displays menus. p.35
(3) KEYSTONE button : Adjusts keystone distortion. p.29
(4) ON/STANDBY button : Turns the power on/off (standby). p.24
(5) FOCUS button : Adjusts the screen focus.
(6) EASY SETUP button : Performs auto-adjustment. p.28
(7) ZOOM button : Adjusts the screen size.
(8) ON/STANDBY indicator : Displays whether power is on or off (standby). p.24
(9) INPUT button : Selects input. p.26
(10) RETURN button : Goes back one screen.
(11) Selection button : Menu selections and adjustments, volume control, etc.
p.35
(12) LAMP indicator : Displays lamp mode. p.25
(13) TEMP indicator : Lights when internal temperature is too high. p.83
(14) FAN indicator : Displays cooling fan mode. p.83
Remote control
(1) ENTER button : Accepts the selected mode.
(2) MENU button : Displays menus. p.35
(3) KEYSTONE button : Adjusts keystone distortion. p.29
(4) ON/STANDBY button : Turns the power on/off (standby). p.24
(5) FOCUS button : Adjusts the screen focus.
(6) EASY SETUP button : Performs auto-adjustment. p.28
(1)
(2)
(3)
(4)
(5) (6) (7)
(9)
(8)
(10)
(11)
(12) (13) (14)
Remote control
transmitter Laser light
source
Battery
cover
Warning
label
(4)
(9) (3)
(16)
(2)
(1)
(15)
(28)
(19)
(20)
(21)
(22)
(5)
(23)
(29)
(11)
(10)
(27)
(26)
(25)
(24)
(7)
(17)
(6)
(30)
(18)
CAUTION
• Do not look into the laser light
source of the remote control or
direct the laser pointer toward a
person or a mirror.
• Handling and adjusting other than
described here may lead to
dangerous exposure to laser.
Name : Main Function
(7) ZOOM button : Adjusts the screen size.
(9) INPUT button : Selects input. p.26
(10) RETURN button : Goes back one screen.
(11) Selection button : Menu selections and adjustments, volume control, etc.
p.35
(15) LASER button : Shows a laser pointer.
(16) AUTO SET button : Sets up analog input from computer. p.29
(17) Laser indicator : Lights when laser is on.
(18) Mouse control button : Controls a mouse pointer. p.20
(19) PAGE+ button : Proceeds PowerPoint ® slides. p.20
(20) MUTE button : Cuts off the picture and sound temporarily. p.31
(21) FREEZE button : Pauses image. p.32
(22) Ten-Key button : Use as a ten-key pad with wireless LAN, from which
numbers and characters can be entered. p.50
(23) Remote control ON/OFF switch : Switches on/off the remote control. p.20
(24) PICTURE button : Changes image mode. p.31
(25) SCREEN SIZE button : Changes screen size. p.32
(26) RESIZE button : Enlarges image. p.30
(27) PAGE- button : Goes back PowerPoint ® slides. p.20
(28) R-CLICK button : Functions as right-click of a mouse. p.20
(29) L-CLICK button : Functions as left-click of a mouse. p.20
(30) Remote control code switch : Sets the code of remote control to that of the projector.
(inside the battery cover) p.43
Note
• For the remainder of this manual, buttons are referred to as follows:
Selection buttons ⇒ ; ENTER button ⇒
Label locations
Caution – use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
