RamSan-325/325c User’s Manual - 83 -
Chapter 7 – Fibre Channel
Controller Configuration
The RamSan allows the user to select the topology, link speed, and failover options
for the Fibre Channel Controllers. RamSan supports Point-to-Point and Arbitrated
loop topologies and can auto-detect the topology. It supports 1- and 2-Gbit link
speeds and can auto-detect the speed. When more than one Fibre Channel Controller
is installed, the controllers can be set to back each other up. The following two
sections provide additional details.
7.1 Changing Fibre Channel Topology and Link Speed
Via Web Interface
To change the Fibre Channel topology and link speed via the web
interface:
• Click on the “Fibre Channel Controller” graphic.
• Click on the “Controller Setup” tab.
• Select from the “Topology” and “Link Speed” settings.
• Click the “Save” button.

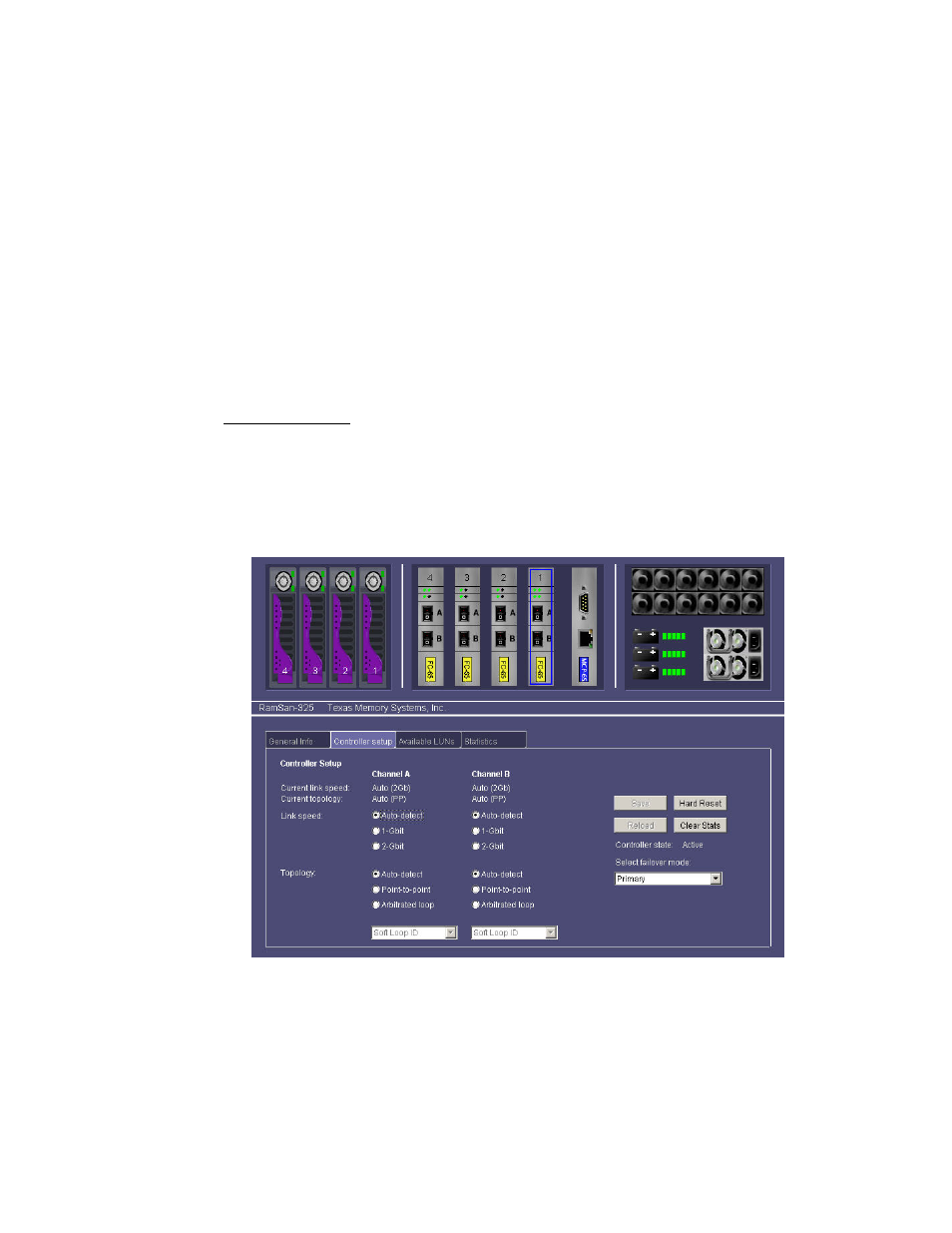

Figure 7-1: Controller Setup via Web Interface
