Page 33

2.3 Installing hard drives

Chapter 2: Setting up

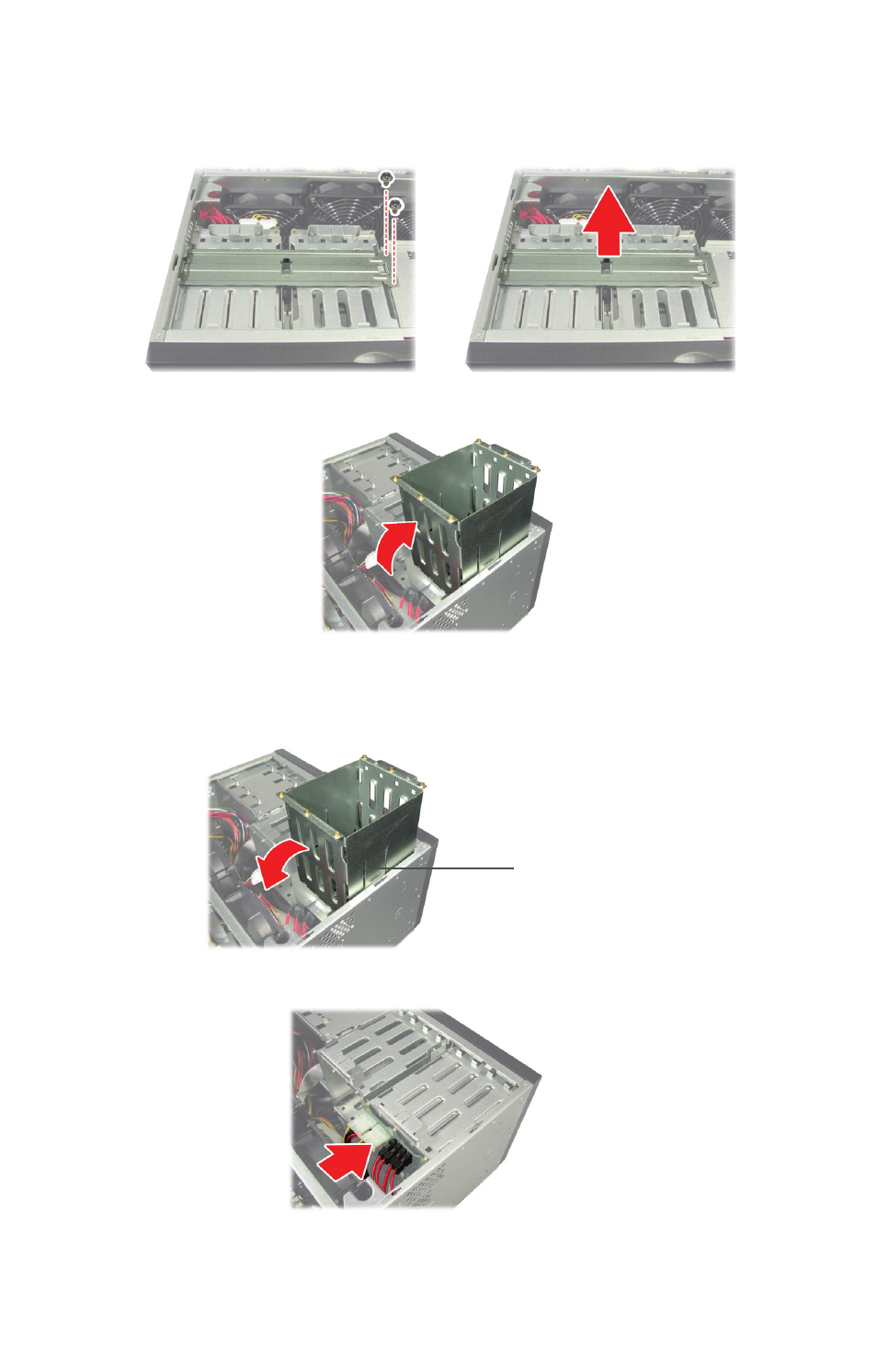

3. Remove the two screws holding the cradle locking bar in

place and remove the bar.

4. Lift the drive housing to the vertical position as shown.

5. Slide the new drive into place until it locks.
6. Press the drive housing release button and lower the

drive housing back into place.

7. Connect power and data cables to the new drive.

Drive housing
release button
