2.2 Installing motherboard components
14
Chapter 2: Setting up
2.2.2 Installing CPUs and heatsinks
This section describes how to install AMD Opteron proces-
sors and heatsinks on the B4881V50S4H motherboard and
CPU expansion board.
1. Remove the chassis cover. See Removing the chassis
2. Remove the optional processor board if it is present, see
“Replacing the CPU expansion board” on page 37
3. Locate the four CPU sockets on the motherboard or CPU
expansion board.
4. Lift the locking lever on the CPU socket to the upright
position.

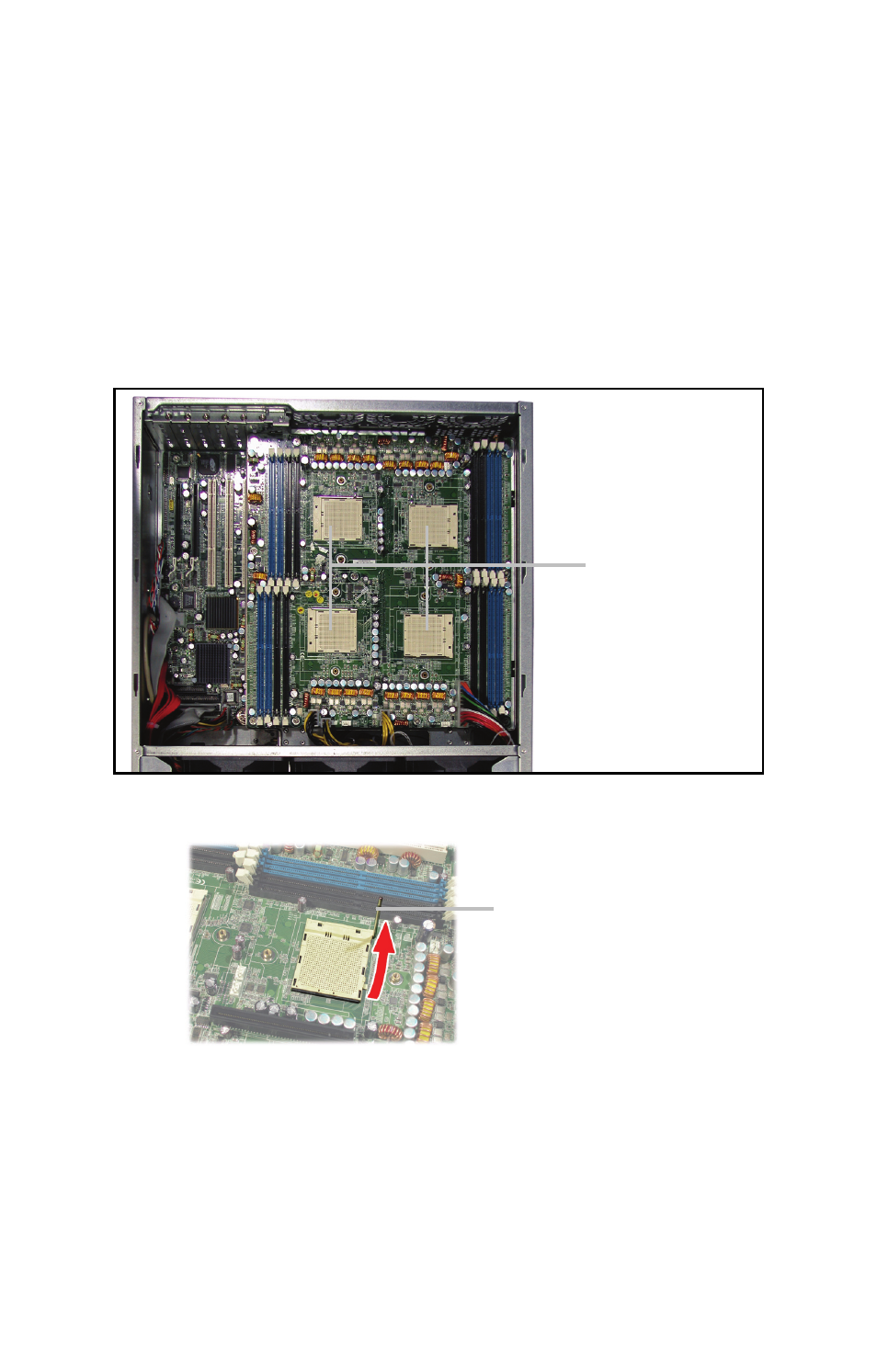

CPU sockets 1-4
Locking lever
