E6581371c
- 6 -
1. Overview
L ON W ORKS technology is a network control system concept developed by Echelon Corporation,
L ON W ORKS network provides Local Operating Network that is superior in the distributed control.
Each device works in a peer-to-peer fashion on L ON W ORKS network. This L ON W ORKS option is
equipped with the L ON W ORKS Smart Transceiver (Neuron Chip).
2. Names and functions

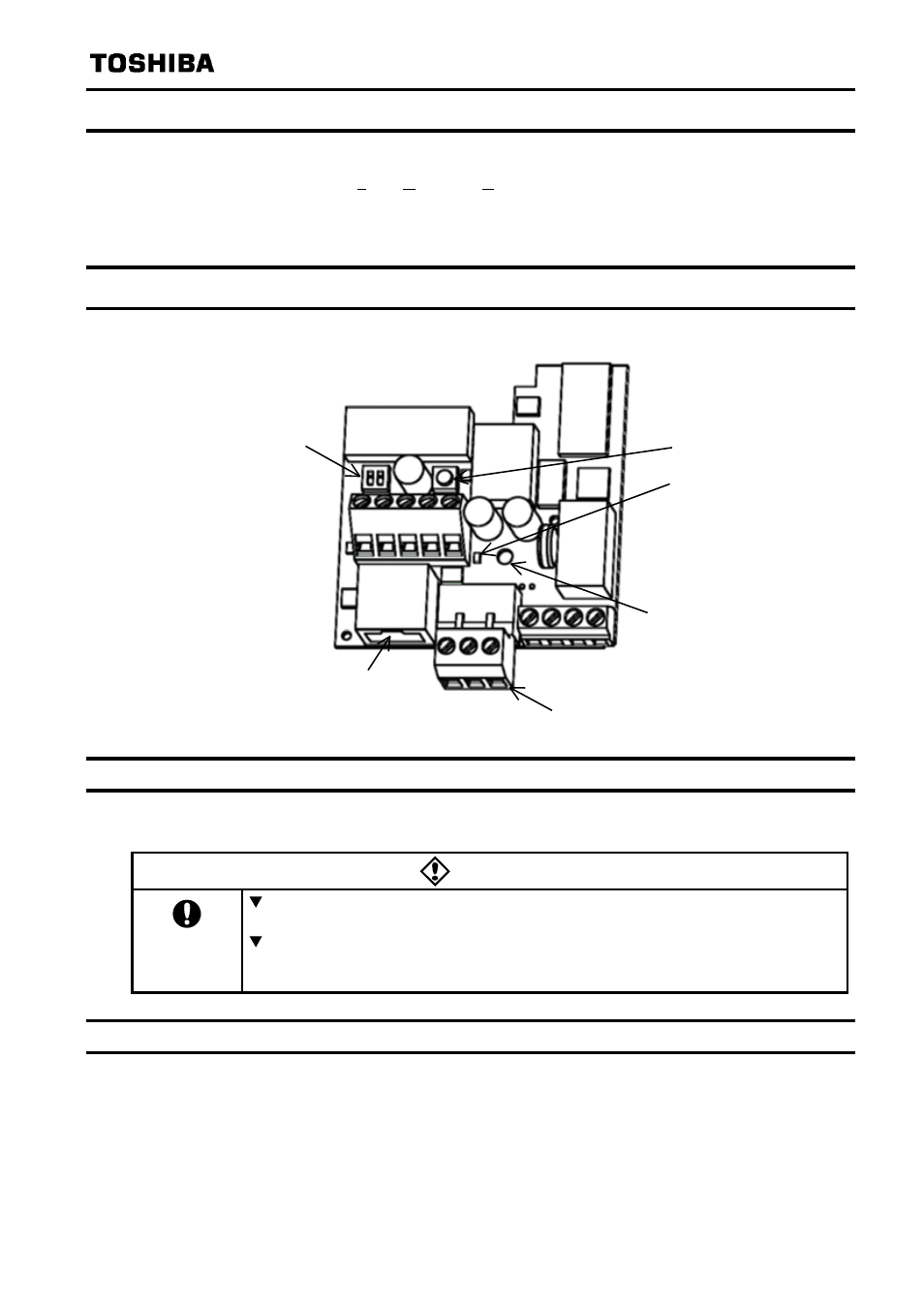

The drawing below shows names and functions of main parts.
2.1. Service pin
Service pin is used for commissioning device. Use SW2 on the option board.
Danger
Mandatory
Operate Service switch only when a cover for the main circuit terminal is attached.
Otherwise, it may lead to electric shocks.
Operate Service switch using the non-conductive stick. When it is operated with a
conductive stick.
Otherwise, it may lead to electric shocks.
2.2. Use of RS485 communication port
Serial communication (2-wire RS485) option can be used. However, while it is connected, the
internal communication line is switched to RS485 then the communication via L
ON W ORKS network
is disabled. In this case, communication error trip time (f803) is also active. Use RS485 serial
communication option specified by Toshiba.
L ON W ORKS network detachable terminal
Selector switch (SW1)
- Logic for F, R terminal
(SINK/SOURCE)
- VIB function
(VIB/PTC)
Service LED
Optional RS485 communication port
RS485 communication option can be
used. However it makes L
ON W ORKS
Communication be disabled.
Terminal board fixing
screw hole
(M3 screw)
Service pin (SW2)
G/
E
FLA FLB FLC
NETA SHLD NETB
