Install recording paper
tray

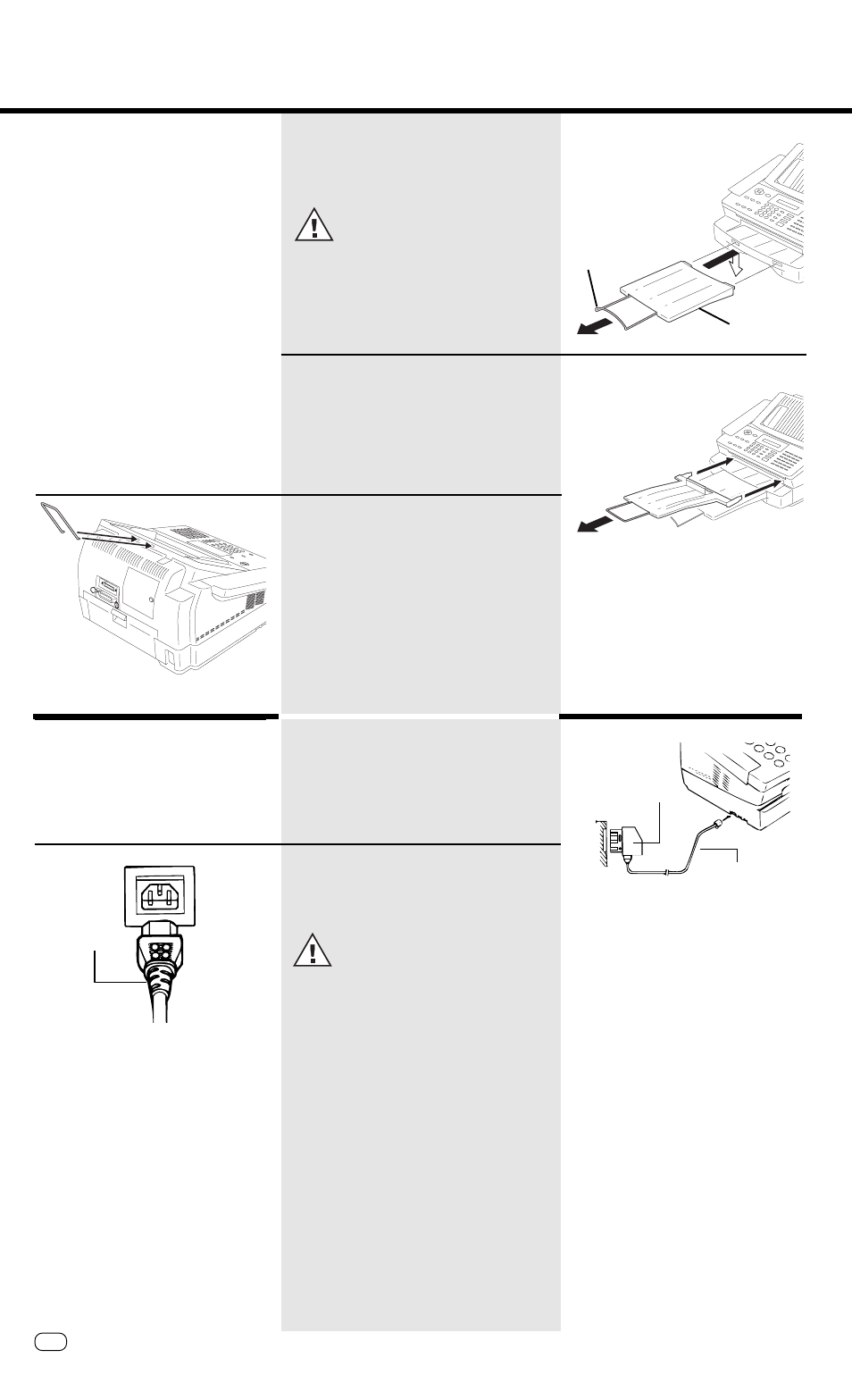

Recording Paper Exit Tray:
Insert the Recording Paper Exit Tray Wire into
the holes on the Recording Paper Exit Tray, then
pull down.
The following steps may be performed
more easily with the Recording Paper
Cassette removed from the facsimilie
machine.
Install the Recording Paper Exit Tray underneath
the Recording Paper Cassette.
Document Exit Tray:
Inster the Document Exit Tray into the
Recording Paper Exit opening.
Flip out the folded Tray Wire as shown.
Recording
Paper Exit
Tray
Wire
Telephone connection
Connect your fax machine (LINE) to the
telephone socket.
Make connections:
Connecting the AC power
The power connector is located on the rear
right of the machine.
Connect the machine to the mains
only after you have installed the
process unit and the fixer cleaner.
Phone Plug-in
Line cord
to the wall
socket
AC power cord
