11. PROGRAMMING PROCEDURES
11.14 LON SYSTEM
Data Transmission

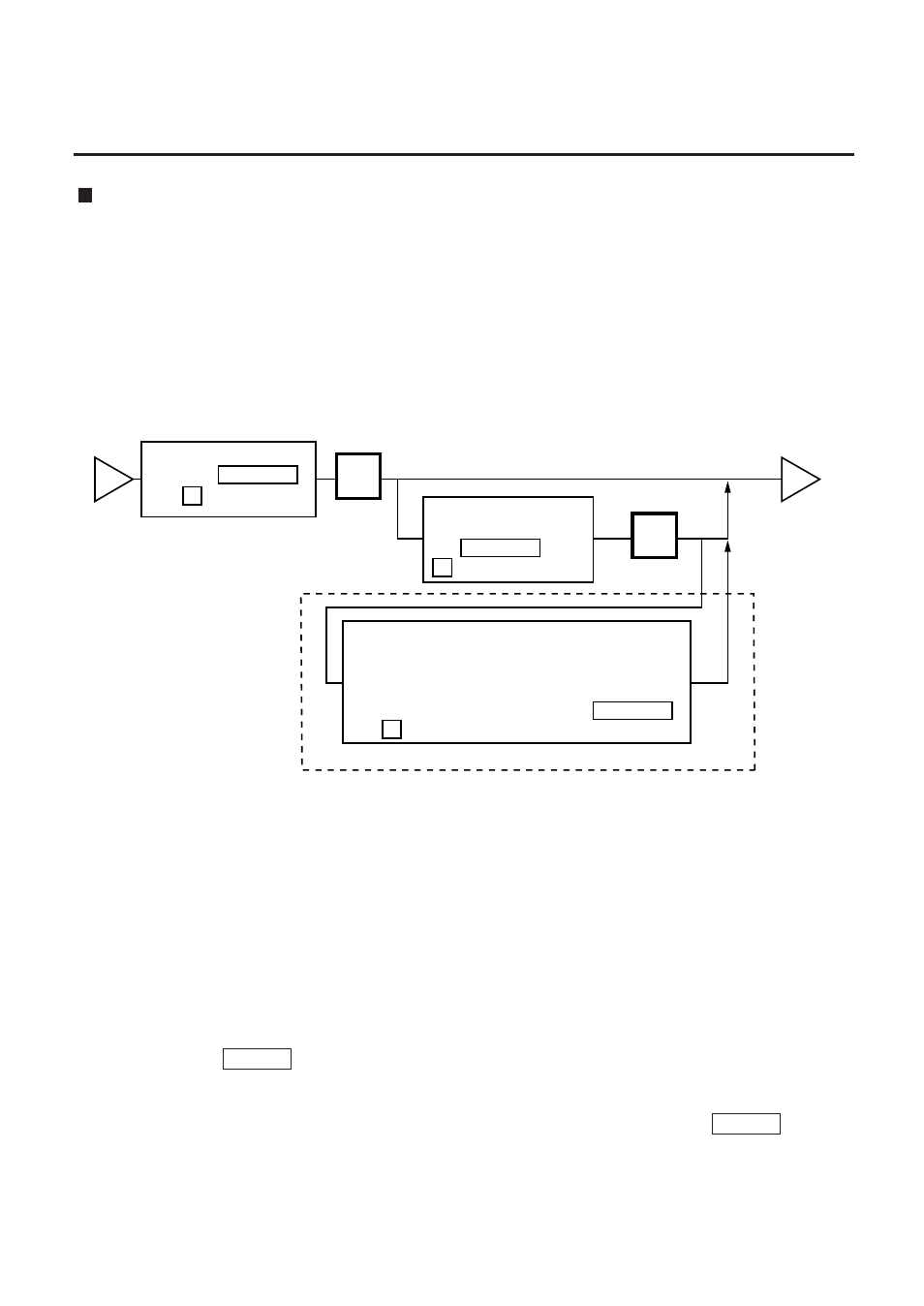

The following data are down-line-loaded.
Page 1: (0). All (PLU+ING+NUTRI) Page 2: (0). SPEED KEY
(1). PLU (1). LOGO
(2). ING. (2). VENDOR
(3). NUTRITION (3). FREE FORMAT
(4). U. PRICE (9). CHANGE PAGE
(5). DATE/TIME
(7). LOCK SCALE (Check the LON cable)
(8). OPEN SCALE (Release the lock after checking the LON cable.)
(9). CHANGE PAGE
The error terminal
ID# is displayed. Use
the and
keys.
Select one of the above using the
and keys.
Release the scale from the error.
0: CANCEL
1: RETRY
2: CONTINUE
Select a DLL data
using the
and keys.
Release the scale
from the error.
LOCK SCALE method
NEXT PLU
NEXT PLU
NEXT PLU
–
–
–
ENTER
CLEAR
p n
Errorous terminal
# is displayed.
NOTE: DLL is performed automatically in the following two ways. It is selectable by the Initial
Settings #0-6 and #0-7.
(1) LOCK SCALE method
Step 1: “LOCK SCALE” is sent. (*1)
Step 2: Selected data is sent. (*2)
Step 3: “OPEN SCALE” is sent.
*1: If an error occurs during step 1, the error terminal ID# is indicated. Select
“cancel”, “retry” or “continue” to release the terminal from an error.
cancel: Quits the operation after sending “OPEN SCALE”
retry: Tries to send “LOCK SCALE” again.
continue: Ignores the error terminal and starts DLL.
*2 If an error occurs during step 2, the error terminal ID# is indicated. Press the
CLEAR key to return to the DLL data selection menu.
(2) Background DLL
Step 1: Selected data is sent. (*3)
*3 If an error occurs, the error terminal ID# is indicated. Press the CLEAR key to
return to the DLL data selection menu.
