11. PROGRAMMING PROCEDURES
11.20 FREE FORMAT SETTING
11.20 FREE FORMAT SETTING
Menu Group: 3
Item No.: 1
When using 57-mm wide labels, up to three print formats can be changed freely. Moreover,
characters can be rotated and magnified, and print items are salectable.
Enter the coordinate of each print item’s lower left corner using the lower left corner of a label as
the origin. When a print item is located beyond the label width, an error will occur.
Key functions
: Moves downward (Data is stored.)
: Moves downward (Data is stored.)
: Moves upward (Data is stored.)
: Moves to the right
: Moves to the left
: Selects a setting
a. ROT (Rotation) :
0
90
180
270
0R
90R
180R
270R
Printing Item
Liquid Crystal Display
t
Group 3
1
1 ENTER
Select data format
Tset print
or
TEST
PROG.
ESC.
t

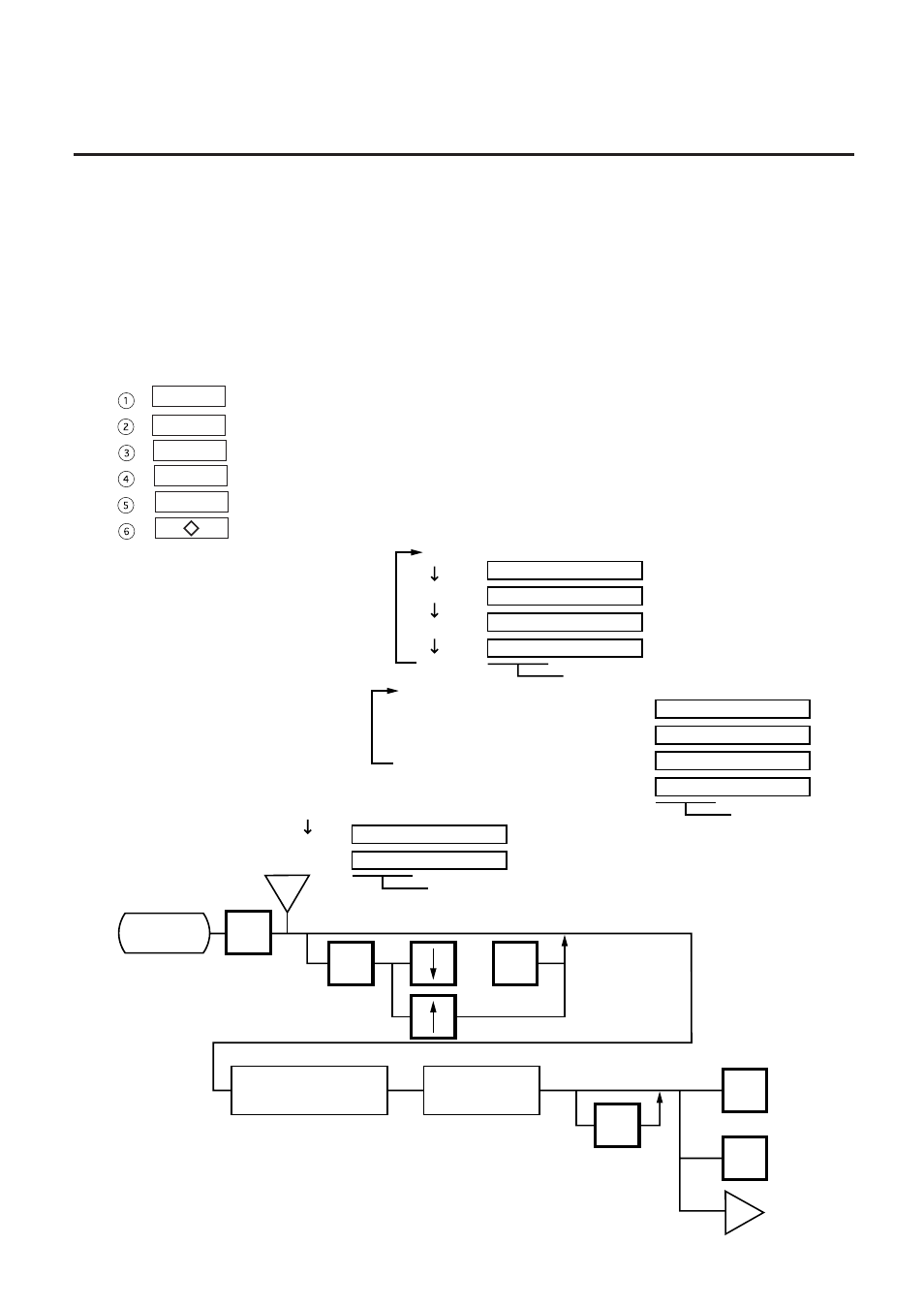

Select a print item
to be re-located.
Change the
coordinate.
Group 3
Main
ENTER
↑
→
←
↓
b. MAG (Magnification) :
Printing Item
Liquid Crystal Display
ONP
OFFP
ON
OFF
Printing Item
Liquid Crystal Display
0M
1M
2M
3M
0: normal
1: X2 (width)
2: X2 (height)
3: X4 (width: X2, height: X2)
c. PRT (Print) :
(See NOTE 5)
