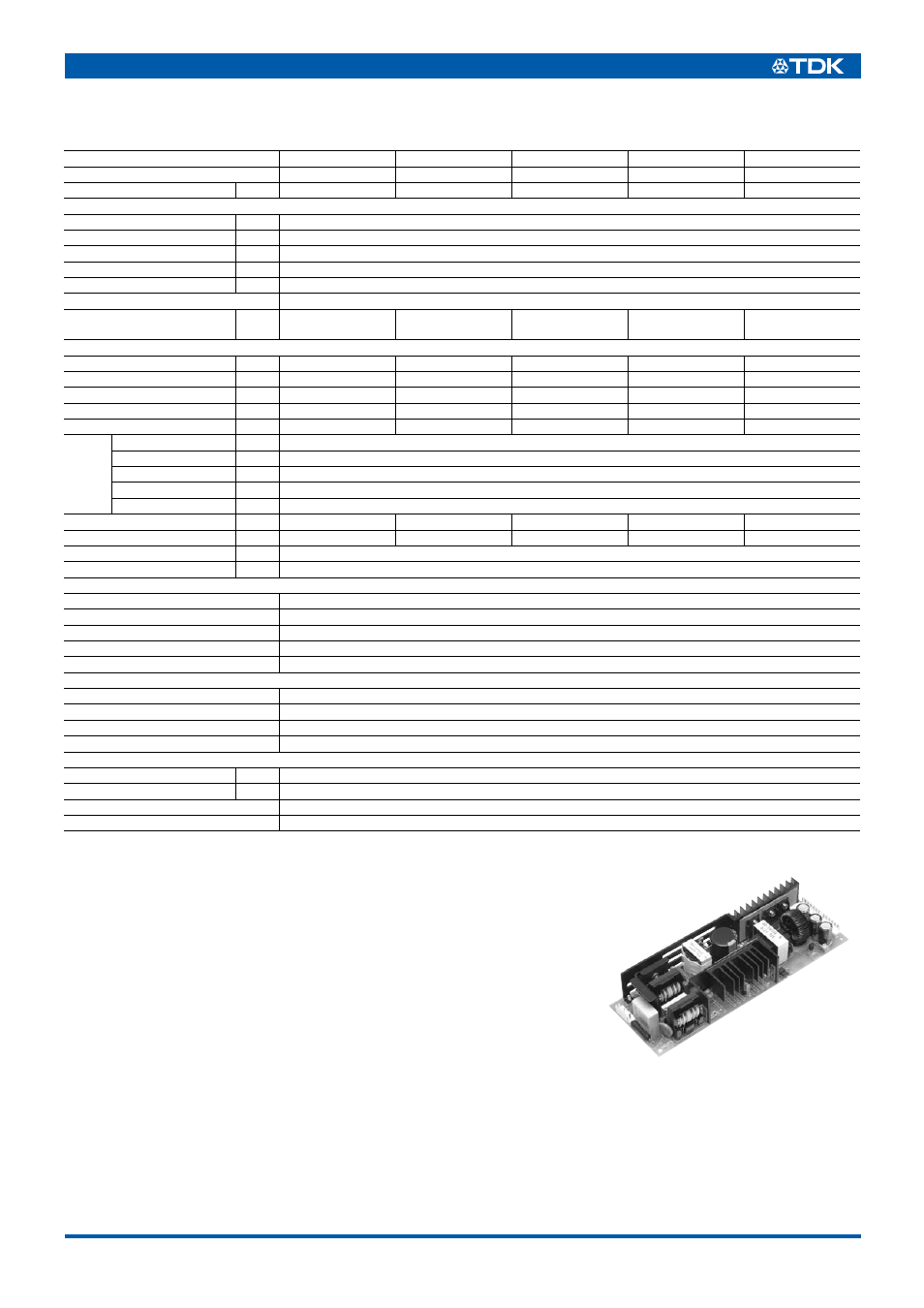

JBW150W Type
SPECIFICATIONS AND STANDARDS
∗ Current rating(maximum output current) is determined for –10 to +40°C. Derating is required when used outside this temperature range.
Part No. JBW05-30R JBW12-12R JBW15-10R JBW24-6R3 JBW48-3R2
Rated output voltage and current ∗ 5V • 30A 12V • 12A 15V • 10A 24V • 6.3A 48V • 3.2A
Maximum output power W 150 150 150 151.2 153.6
Input conditions
Input voltage Eac/Edc
V 85 to 265[Rating: 100-240]/120 to 370
Input frequency Hz 47 to 66
Input current A 2.7/1.5max.[100-240V]
Surge current A 30/60max.[100-240V]
Leakage current mA 0.75/0.75max.[AC.100V(DENAN)/240V(UL, IEC)]
Power factor 0.99/0.95typ.[100-240V]
Efficiency %
78/80typ.
[100-240V] 81/83typ.
[100-240V] 81/83typ.
[100-240V] 82/84typ.
[100-240V] 82/84typ.
[100-240V]
Output characteristics
Output voltage Edc
V 5 12 15 24 48
Voltage variable range Edc V 4.5 to 5.5 10.8 to 13.2 13.5 to 16.5 21.6 to 26.4 43.2 to 52.8
Maximum output current A 30 12.5 10 6.3(Peak7.5) 3.2
Overvoltage threshold Edc V 5.75 to 6.9 13.8 to 16.8 17.2 to 21 27.6 to 33.6 55.2 to 67.2
Overcurrent threshold A 31.5min. 15.7min. 12.5min. 7.87min. 3.36min.
Voltage
stability
Source effect % 0.4max.[Within the input voltage range]
Load effect % 0.8max.[0 to 100% load]
Temperature effect % 1max.[Ambient temperature: –10 to +60°C]
Drift(Time effect) % 0.4max.[25°C, input and output ratings, after input voltage ON for 30min to 8h]
Recovery % ±4max.[50 to 100% sudden load change]
Ripple Ep-p mV 80max. 120max. 120max. 120max. 150max.
Ripple noise Ep-p mV 120max. 150max. 150max. 150max. 350max.
Start up time ms 500max.(400typ.)/500max.(300typ.)[AC.100/240V]
Hold up time ms 25/35typ.[AC.100/240V]
Auxiliary functions
Indicator display
No
Overvoltage protection Voltage shut-down type(Latch).
Overcurrent protection Rectangular type, automatic recovery.
Remote ON-OFF No
Remote sensing No
Standards
Safety standards
UL60950-1, CSA C22.2 No.60950-1(C-UL), EN60950-1(TÜV) approved.
Noise terminal voltage FCC-B, VCCI-B, EN55011-B, EN55022-B meet.
Input harmonics current requirement EN61000-3-2
CE marking Meet.
Constructions
External dimensions
mm 40 Ч 75Ч 222[HЧ WЧ L]
Weight g 550max.
Mounting method Can be attached to 1 side.
Case metal FR4
