Taylor SLUSH 382 User Manual

Page 19

Models 382/RC25

Operating Procedures

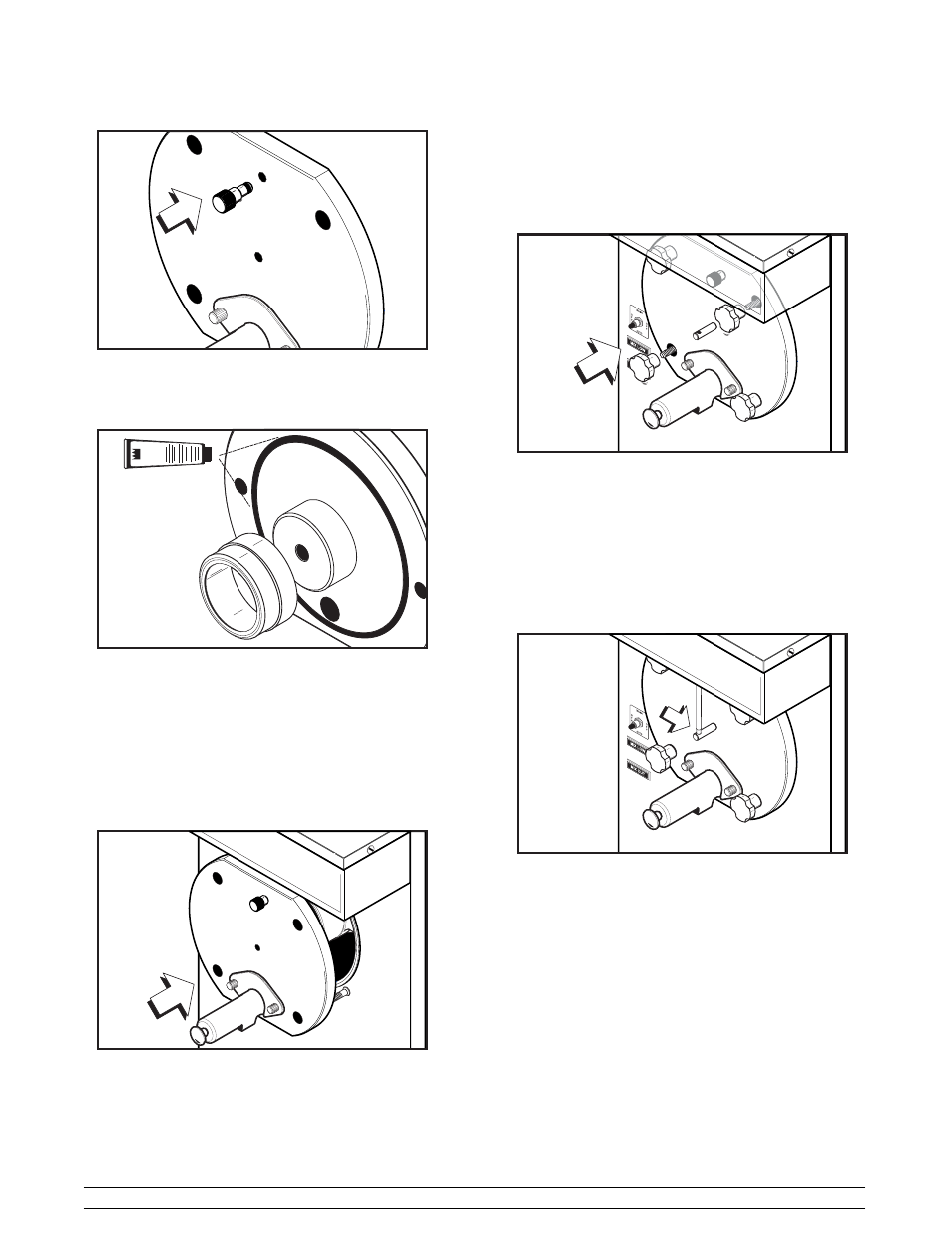

Figure 19

Place the large o-ring into the groove on the back side

of the door and lubricate the installed o-ring.

Figure 20

Place the door bearing into the back side of the door.
Note: Do not lubricate the door bearing.
Step 5

Install the freezer door. Align the torque rotor into the

center of the door and position the door on the four

studs on the front of the freezing cylinder. Firmly push

the door into place.

Figure 21

Step 6

Install the four handscrews on the studs.

Finger-tighten the screws equally in a crisscross

pattern to insure that the door is snug. Do not

over-tighten the handscrews.

Figure 22

Step 7

Install the torque arm. Position the torque arm by

inserting it through the slot in the torque switch arm and

down into the hole in the torque rotor which protrudes

from the door. Verify proper installation by moving the

torque rotor back and forth to be sure it moves freely

and easily.

Figure 23
