TOSHIBA 6F3A4508
- 4 -
3) 1:N RIO connection
This is a connection made via Integrated Controller V Series.
The PC is connected to the Integrated Controller network and exchanges messages with the
Integrated Controller RIO (Remote I/O Controller).
RIO and drive equipment exchange messages using the message transmission function of
the Transmission Unit TL-S20. Consequently, the PC exchanges messages with the drive
equipment.
In this case, an IP address is required for the PC and each RIO.
The drive equipment does not need an IP address because message is exchanged using the
TL-S20.
Ethernet
250Wi
TL-S20
250Wi
TL-S20
RIO
RIO
ASC
ASC
T-250Wi
T-250Wi

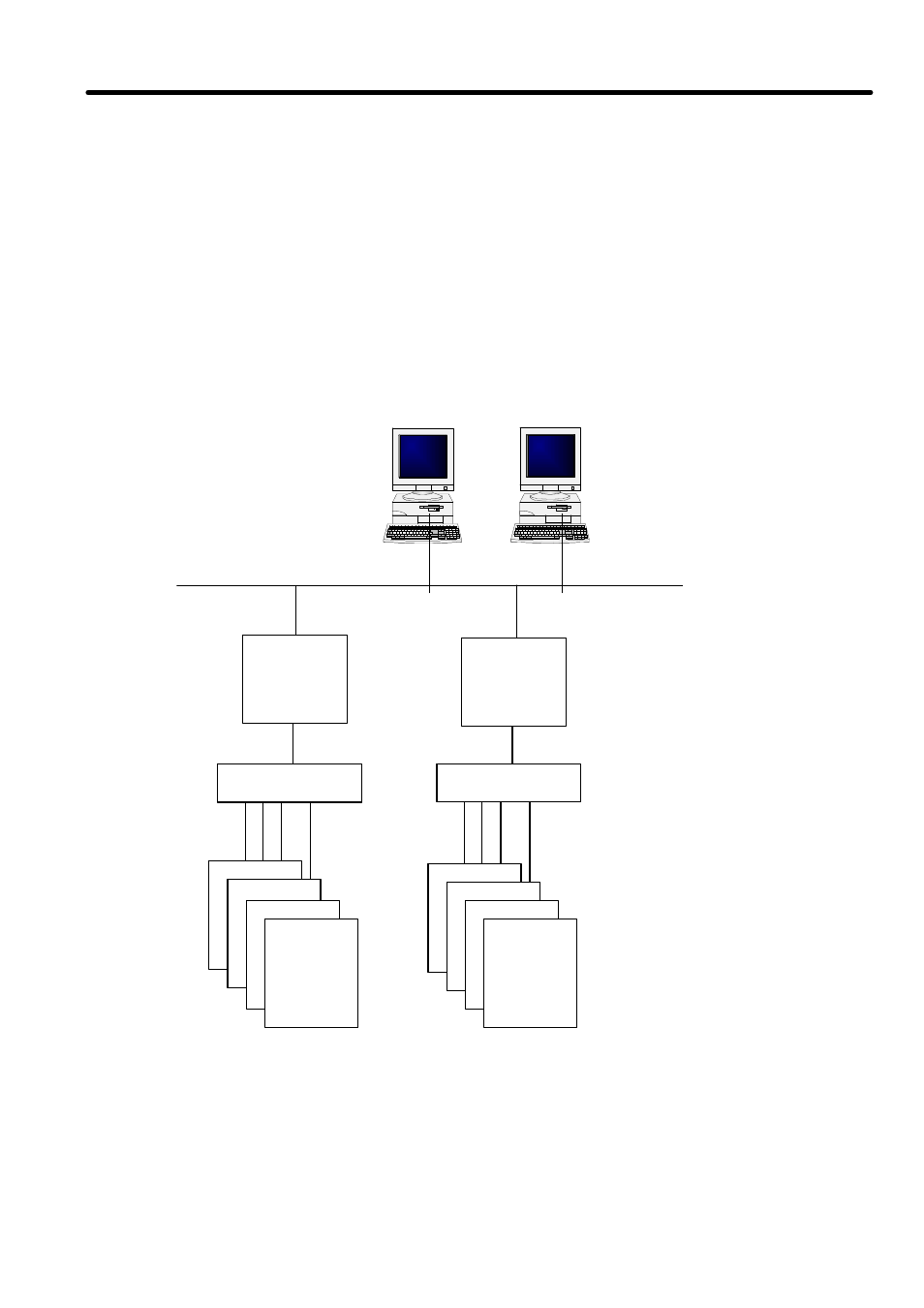

Figure 2.3 RIO connection
