Toshiba 6F3A4508 - Manual (Page 28)

TOSHIBA 6F3A4508
- 27 -

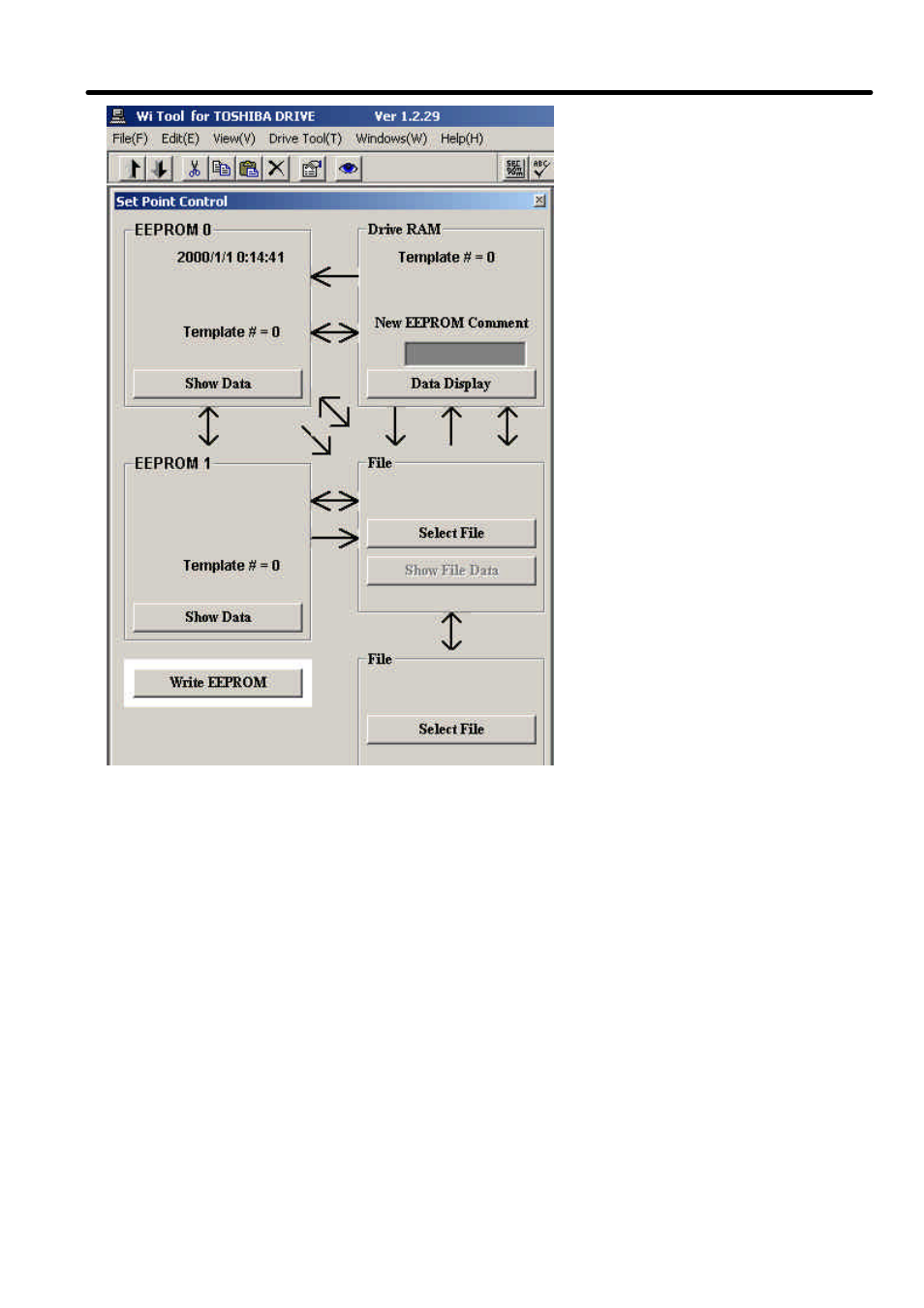

Figure 6.4.6 Write EEPROM
A new EEPROM comment appears. Enter the comment (up to 32 characters) to write in
EEPROM and then click the Write EEPROM button that appears at bottom left of the window to
start transfer to EEPROM.
8) Write data in drive equipment internal RAM to set point file
First, select a set point file. Click the Select File (3) button and select a set point file.
Then click arrow (8) to display the Save to File button at bottom left of the screen and click this
button to start write to file.
9) Write data in drive equipment internal EEPROM to set point file
First, select a set point file. Click the Select File (3) button and select a set point file.
Then click arrow (9) to display the Save EEPROM button at bottom left of the screen and click
this button to start write to file.
