TOSHIBA 6F3A4508
- 12 -

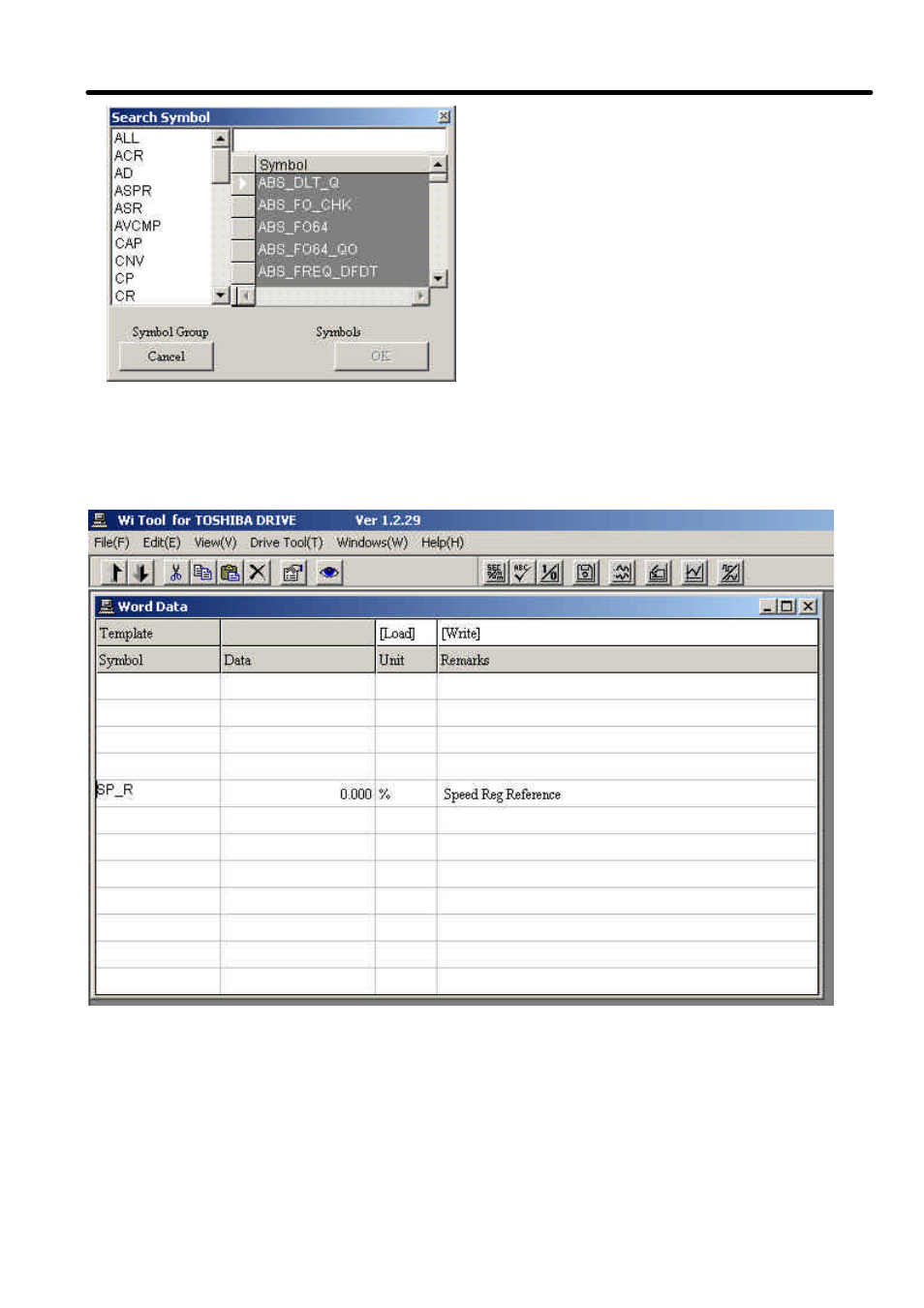

Figure 6.1.2 Input Symbol
Next, enter "SP_R" which is the motor speed symbol. If this symbol is registered in the
computer, it appears in the box at bottom. Click this SP_R in the bottom box and then click the
OK button to select SP_R and display SP_R in the original window.
Figure 6.1.3 Word window
The data displayed in the box below the data is this data. In this case, 0.000% is shown. The
unit is show at right. (% in this case) The description of this SP_R appears at the right end (if
registered).
To rewrite the data, place the cursor on the data box, click and enter a value, and then press
Enter to write the data.
(SP_R returns immediately to the original value because it is written inside the drive equipment.)
