[6-8] Step response detail description

This function provides step reference for test to drive equipment from PC, starts step response,
and displays/prints this data. It also, saves data during step response to file and prints/displays
data in the file.

Select Drive Tool/Local Tool/Test/Step Response from the menu bar

or click the command button

to select. The following window appears.

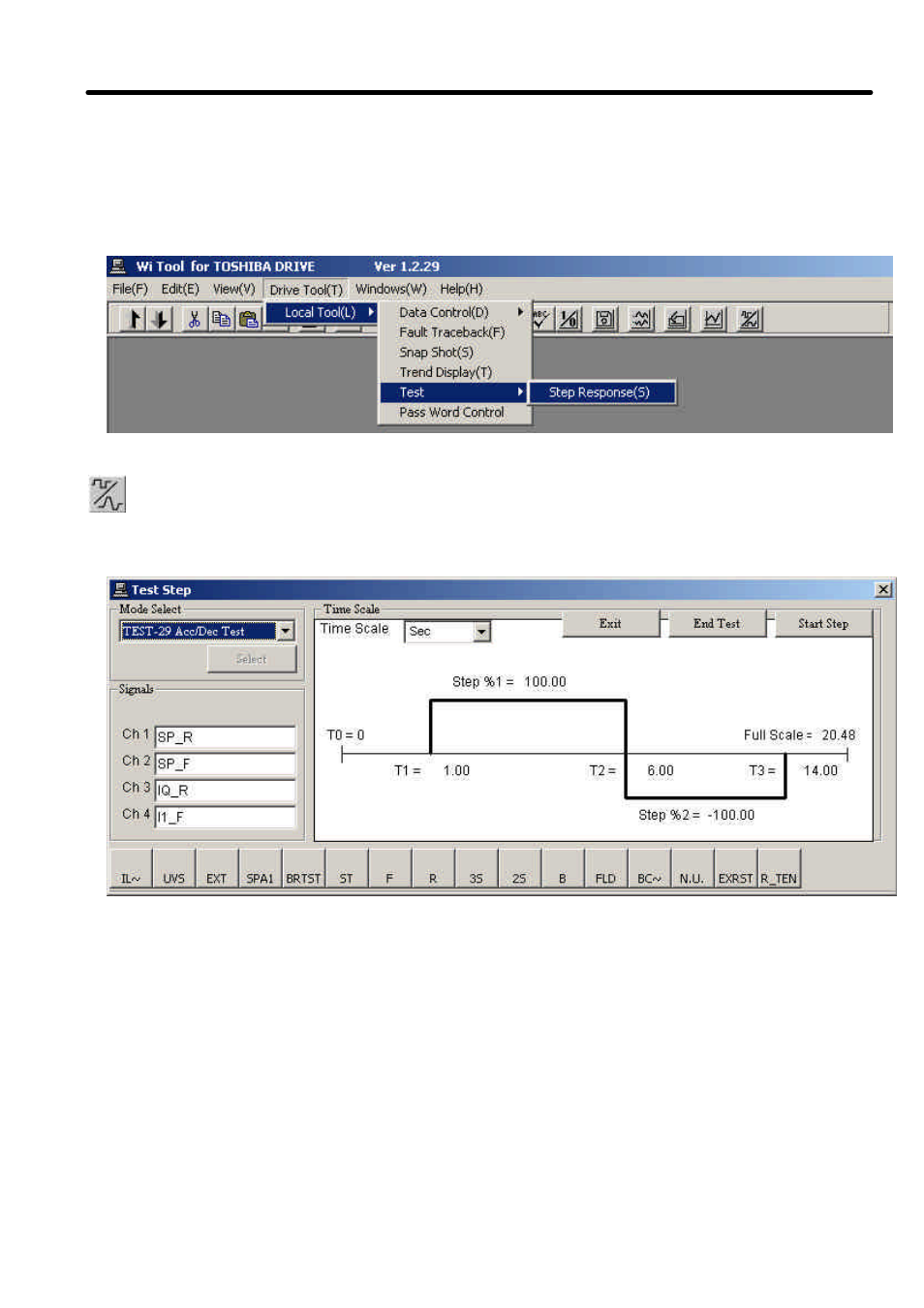

Figure 6.8.1 Step response

First, determine which test mode to select.
Click the Mode Select down arrow and select a mode.
