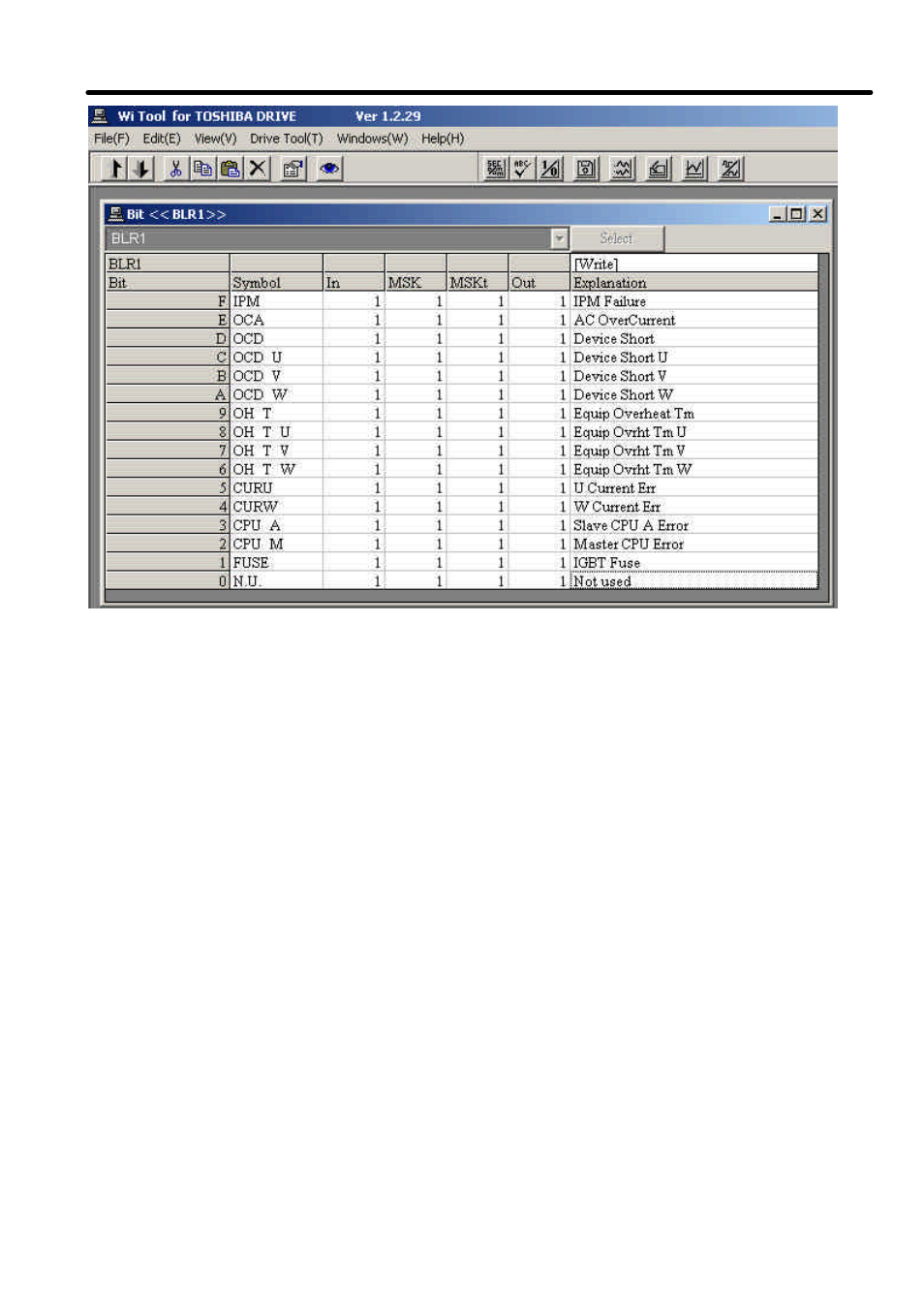

Figure 6.3.3 Bit window
The name of each bit appears on the left side and its comment appears on the right side. The
bit data of the symbol registered in the computer appears as a vertical column of 16 cells at the
center (If BLR1 is selected, four columns of bit data appear as shown in the window above. The
number of columns depends on the selected symbol). The top cell is bit no. F and the bottom
cell is bit no. 0. The number in the cell is the current data ("1", "0").
To change the rewrite data, click the cell of that bit. When clicked, the number in the cell
changes to "0" if it was "1" and to "1" if it was "0".
When a cell is clicked, the following window appears.
(The following figure shows the window when the cell for bit no. E for MSK data is clicked.) )
