300X CompactFlash Card
Transcend Information Inc.
V1.1
28

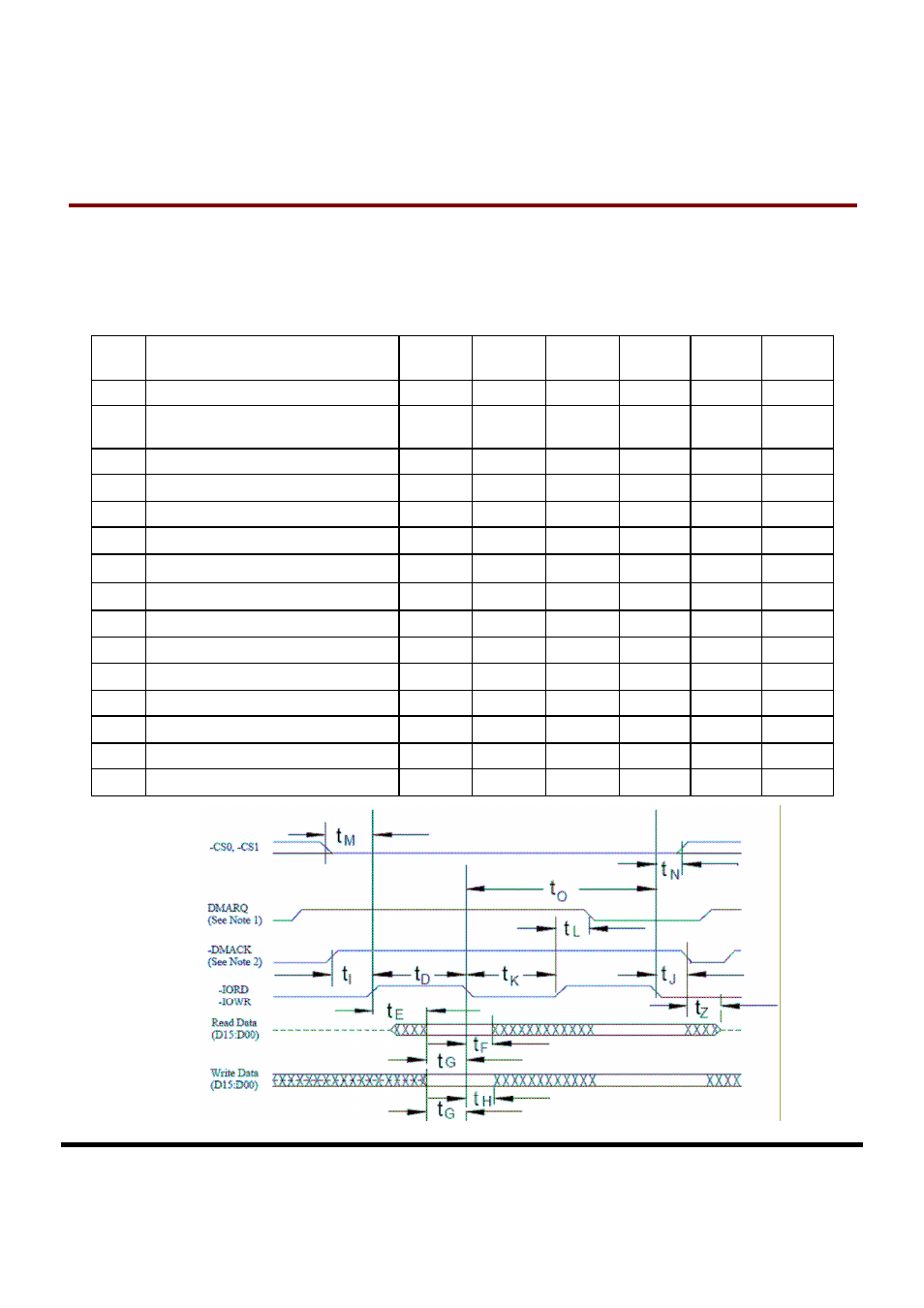

True IDE Multiword DMA Mode Read/Write Timing Specification
The timing diagram for True IDE DMA mode of operation in this section is drawn using the conventions in the ATA-4
specification. Signals are shown with their asserted state as high regardless of whether the signal is actually negative or positive
true. Consequently, the -IORD, the -IOWR and the -IOCS16 signals are shown in the diagram inverted from their electrical states
on the bus.
Item
Mode 0
(ns)
Mode 1
(ns)
Mode 2
(ns)
Mode 3
(ns)
Mode 4
(ns)
Note
t
O
Cycle time (min) 480 150 120 100 80 1
t D -IORD / -IOWR asserted width (min) 215 80 70 65 55 1
t E -IORD data access (max) 150 60 50 50 45
t
F
-IORD data hold (min) 5 5 5 5 5
t
G
-IORD/-IOWR data setup (min) 100 30 20 15 10
t H -IOWR data hold (min) 20 15 10 5 5
t
I
DMACK to –IORD/-IOWR setup (min) 0 0 0 0 0
t
J
-IORD / -IOWR to -DMACK hold (min) 20 5 5 5 5
t KR -IORD negated width (min) 50 50 25 25 20 1
t KW -IOWR negated width (min) 215 50 25 25 20 1
t
LR
-IORD to DMARQ delay (max) 120 40 35 35 35
t
LW
-IOWR to DMARQ delay (max) 40 40 35 35 35
t
M
CS(1:0) valid to –IORD / -IOWR 50 30 25 10 5
t N CS(1:0) hold 15 10 10 10 10
t
Z
-DMACK 20 25 25 25 25
