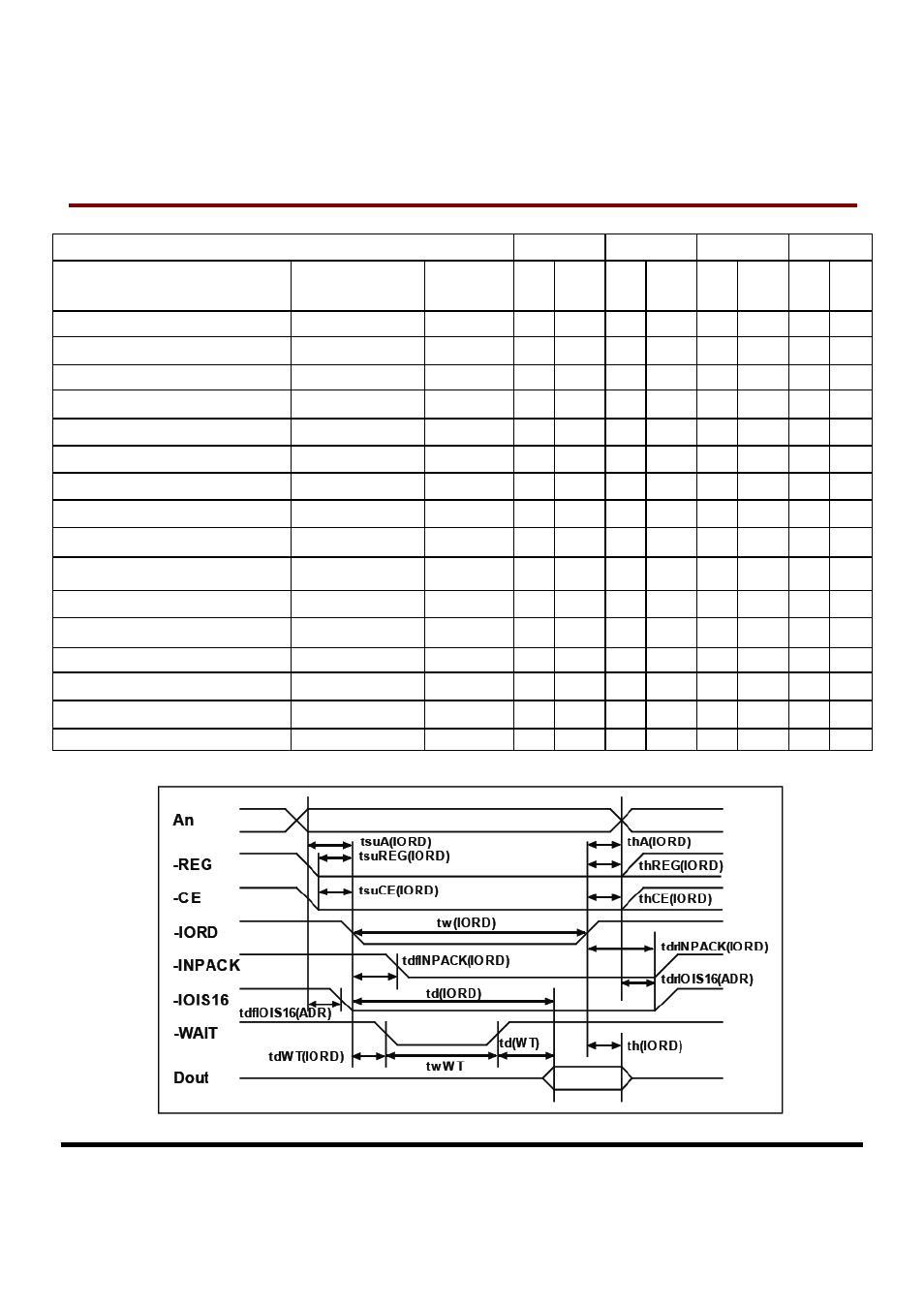

I/O Input (Read) Timing Specification
Cycle Time Mode: 250 ns 120 ns 100 ns 80 ns
Item Symbol
IEEE
Symbol
Min
ns.
Max
ns.
Min
ns.
Max
ns.
Min
ns.
Max
ns.
Min
ns.
Ma
x
ns.
Data Delay after IORD td(IORD) tlGLQV 100 50 50 45
Data Hold following IORD th(IORD) tlGHQX 0 5 5 5
IORD Width Time tw(IORD) tlGLIGH 165 70 65 55
Address Setup before IORD tsuA(IORD) tAVIGL 70 25 25 15
Address Hold following IORD thA(IORD) tlGHAX 20 10 10 10
CE Setup before IORD tsuCE(IORD) tELIGL 5 5 5 5
CE Hold following IORD thCE(IORD) tlGHEH 20 10 10 10
REG Setup before IORD tsuREG (IORD) tRGLIGL 5 5 5 5
REG Hold following IORD thREG (IORD) tlGHRGH 0 0 0 0
INPACK Delay Falling from IORD
3
tdfINPACK (IORD) tlGLIAL 0 45 0 na
1
0 na
1
0 na
1
INPACK Delay Rising from IORD 3 tdrINPACK (IORD) tlGHIAH 45 na 1 na 1 na 1
IOIS16 Delay Falling from Address
3
tdfIOIS16 (ADR) tAVISL 35 na
1
na
1
na
1
IOIS16 Delay Rising from Address
3
tdrIOIS16 (ADR) tAVISH 35 na
1
na
1
na
1
Wait Delay Falling from IORD 3 tdWT(IORD) tlGLWTL 35 35 35 na 2
Data Delay from Wait Rising 3 td(WT) tWTHQV 0 0 0 na 2
Wait Width Time3 tw(WT) tWTLWTH 350 350 350 na
2
