2-1
8 8
PDUMH15HVNET
PDUMH15NET/PDUMH20NET
A
B
C
8 8
2-2 PDUMH20HVNET
B
B
A
A
C
C
A
2-3
4

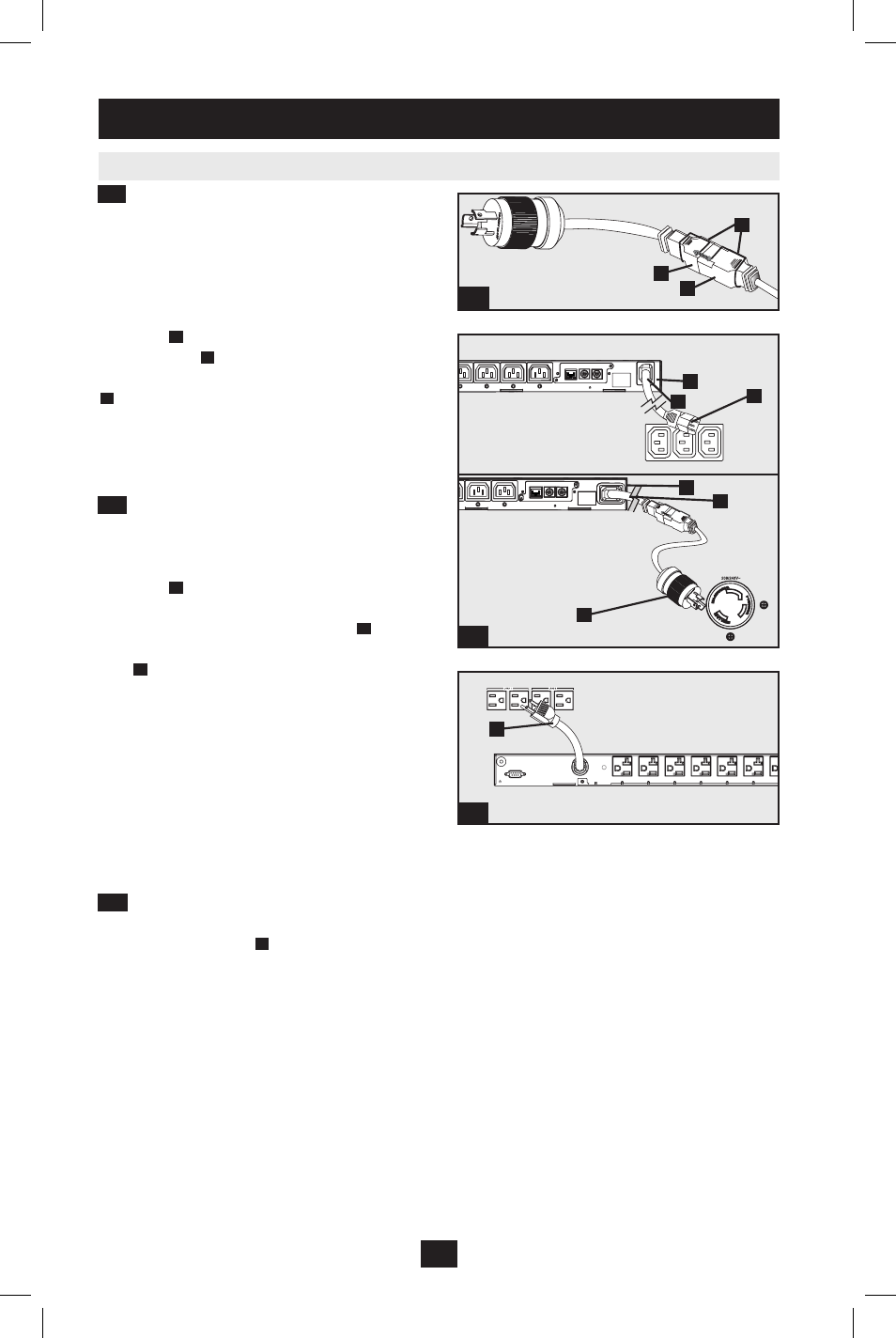

Connecting the PDU
2-1 NEMA Adapter Connection (Optional -
PDUMH20HVNET Only): The
PDUMH20HVNET includes a plug adapter that
adds a NEMA L6-20P plug to the input power
cord. Use this adapter only if you will be
connecting the PDUMH20HVNET to a NEMA
L6-20R outlet. Insert the IEC 60320 C19
connector
A of the adapter into the IEC 60320
C20 connector B of the input power cord.
Secure the connection with the retention bracket
C by using the included bolts to fasten the two
halves of the bracket around the connection as
shown. Caution: To avoid the risk of electric
shock, ensure that the Neutral (L2) conductor
has been identified before connecting the PDU.
2-2 Input Power Cord Connection (Select
Models with Unattached Power Cords Only):
Insert the IEC 60320 C19 (PDUMH20HVNET)
or IEC 60320 C13 (PDUMH15HVNET)
connector
A of the input power cord into the
IEC 60320 C20 (PDUMH20HVNET) or IEC
60320 C14 (PDUMH15HVNET) inlet
B of the
PDU. Connect the other end of the input power
cord
C to a compatible source of AC power,
such as a UPS system, PDU or utility outlet.
The PDU should be provided with over-current
protection: PDUMH20HVNET should be
provided with a maximum 20A branch-rated
over-current protection device;
PDUMH15HVNET should be provided with a
maximum 15A branch-rated over-current
protection device.
Note: The AC power source should not share a circuit with a
heavy electrical load (such as an air conditioner or
refrigerator).
2-3 Connect Input Power Cord
(PDUMH15NET and PDUMH20NET):
Connect the input plug
A to a compatible source
of AC power, such as a UPS system, PDU or
utility outlet. The PDU should be provided with
over-current protection: PDUMH15NET with a
maximum 15A branch-rated protection device.
PDUMH20NET with a maximum 20A branch-
rated protection device.
Installation
continued
