12

WSHP-SVN08B-EN

RETURN-AIR OPENING

FLANGE ON CABINET

RETURN-AIR OPENING

FLANGE ON CABINET

2 X 4 STUD

A

B

Unit Size

09

012

015

018

024

036

A

19 1/4”

(489)

23 1/4”

(591)

27 1/8”

(689)

B

44 1/8”

(1121)

45 1/4”

(1149)

54 5/8”

(1387)

SHEET ROCK

OPENING

TOP VIEW

SIDE VIEW

CABINET

5“

B

4 5/8“

2 1/4“

3 1/2” ±3/8”

3 1/2” ±3/8”

1 1/2” X 2 3/8”

FLOOR

SHEETROCK

SHEETROCK

RETURN AIR

DOOR FRAME

RETURN AIR

DOOR FRAME

1“ X 1” CLOSED

CELL INSULATION

1“ X 1” CLOSED

CELL INSULATION

3 1/2” ±3/8”

1 1/4”

+1/2”/-0”

1 1/4”

+1/2”/-0”

A

1“ X 1” CLOSED

CELL INSULATION

1“ X 1” CLOSED

CELL INSULATION

2“ X 4”

STUD

2“ X 4” STUD

RETURN AIR OPENING

FLANGE ON CABINET

RETURN AIR OPENING

FLANGE ON CABINET

SHEETROCK

SHEETROCK

RETURN AIR DOOR FLANGE

CABINET

CABINET

Note:
Finished wall and framing should not
touch the unit cabinetry.

Drywall Installation
Before installing drywall around cabi-
net. Cover the cabinet supply and re-
turn openings with plastic or
cardboard to help prevent dust or con-
struction debris from reaching unit
components. Warranties will be void-
ed if paint or foreign debris is allowed
to contaminate internal unit compo-
nents.

The location of the drywall may be de-
pendent upon the type of return air ac-
cess design.

1 Units that contain a field provided

return air access assembly, contrac-
tor must calculate location of dry-
wall to allow for frame mounting.

Units utilizing Hinged Acoustic
Door Assembly.
1 Locate the side studs a minimum of

1 1/4-inches and a maximum of 1 3/
8-inches from the cabinet to the side
of the stud. This critical dimension,
combined with "distance between
studs" is used to determine the side-
to-side opening for the door, dimen-
sion A
. The distances provided in
the table are a "minimum" dimen-
sion. Allow 3 1/2-inches from the
front of the cabinet to the sheet rock
surface, Figure 4 - Top View. Figure
5, mock-up of stud placement.

2 The height of the door assembly

must be positioned to recess the
door 2 1/4-inches from the cabinet’s
return-air opening, Figure 4 - Side
View blow-up.

3 Locate dimensions A and B for sheet

rock opening size. The position of
the sheet rock opening must be cen-
tered side-to-side with the return-air
opening in the cabinet. Ensure the
bottom of the sheet rock opening is
2 1/4-inches below the return-air
opening in the cabinet. This allows
the door recess to rest on the bot-
tom of the sheet rock opening for
proper vertical placement of the
door.

Installation

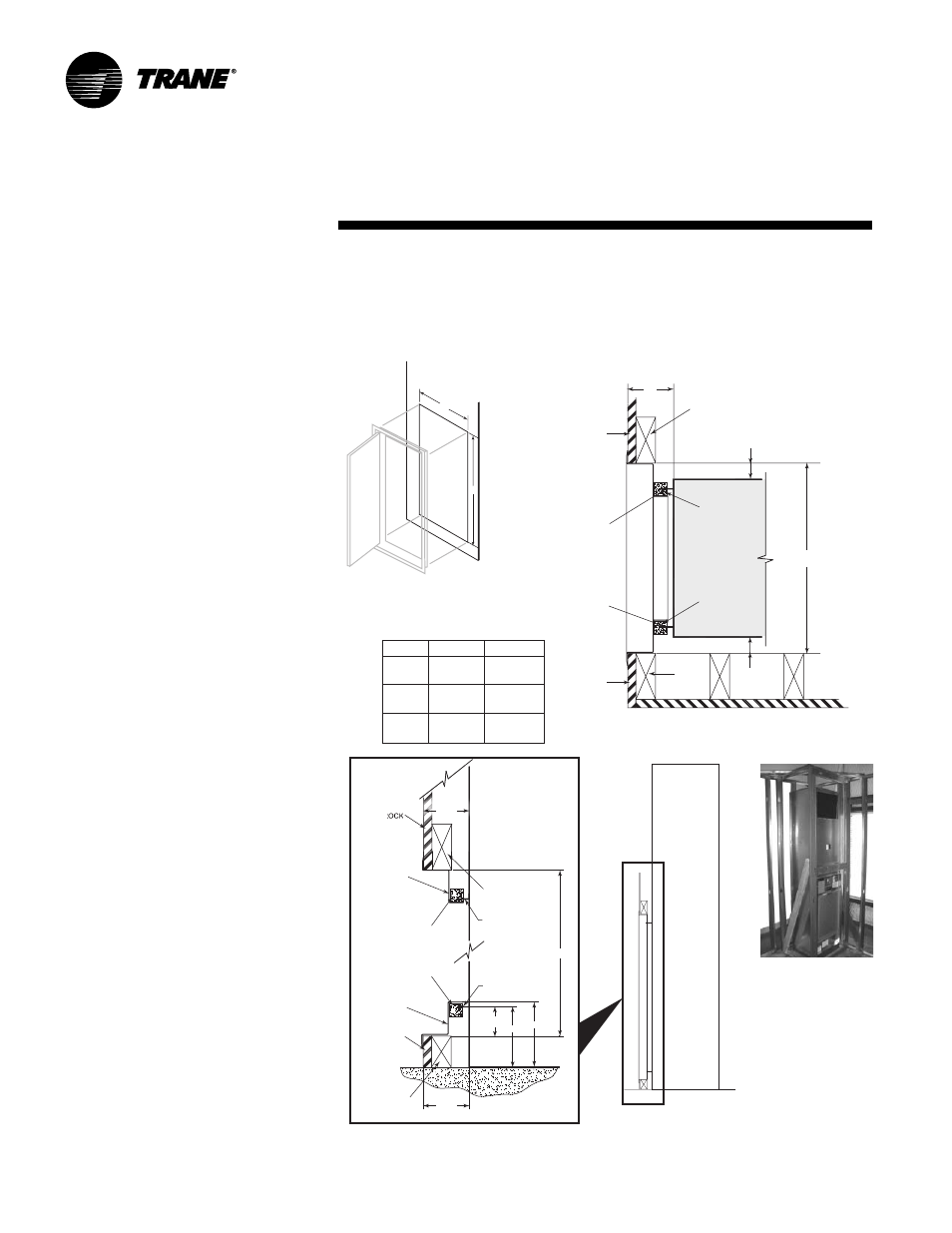

Figure 4: Drywall installation for hinged acoustic door

4 Place the door frame into the sheet rock opening. A positive seal is critical be-

tween the back of the door frame and the front of the cabinet. Ensure that the
gasket material seals properly. Note: When placing the sheet rock panel, make
certain the opening for the door is centered with the return-air opening in the
cabinet (±1/8").

Figure 5:
