Connecting an amplifier equipped with a
Dolby
® Digital decoder
Dolby Digital
Dolby Digital is the surround sound technology used in theaters
showing the latest movies, and is now available to reproduce this
realistic effect in the home. You can enjoy motion picture and live
concert DVD video discs encoded via the Dolby Digital recording
system with this dynamic realistic sound by connecting the TV/DVD to
a 6 channel amplifier equipped with a Dolby Digital decoder or Dolby
Digital processor. If you have a Dolby Surround Pro Logic decoder, you
will obtain the full benefit of Pro Logic from the same DVD movies that
provide full 5.1-channel Dolby Digital soundtracks, as well as from titles
with the Dolby Surround mark.
Connecting an amplifier equipped with
Dolby
® Surround Pro Logic
Dolby Surround Pro Logic
You can enjoy the dynamic realistic sound of Dolby Surround Pro Logic
by connecting an amplifier and speaker system (right and left front
speakers, a center speaker, and one or two rear speakers).
■ With an amplifier equipped with Dolby Digital:
Connect the equipment the same way as described in “Connecting to
an amplifier equipped with a Dolby Digital decoder.” Refer to that
amplifier’s owner’s manual and set the amplifier so you can enjoy
Dolby Surround Pro Logic sound.
■ With an amplifier not equipped with Dolby Digital:
Connect the equipment as follows.
• This connection is only suitable for Video CDs and Audio CDs.

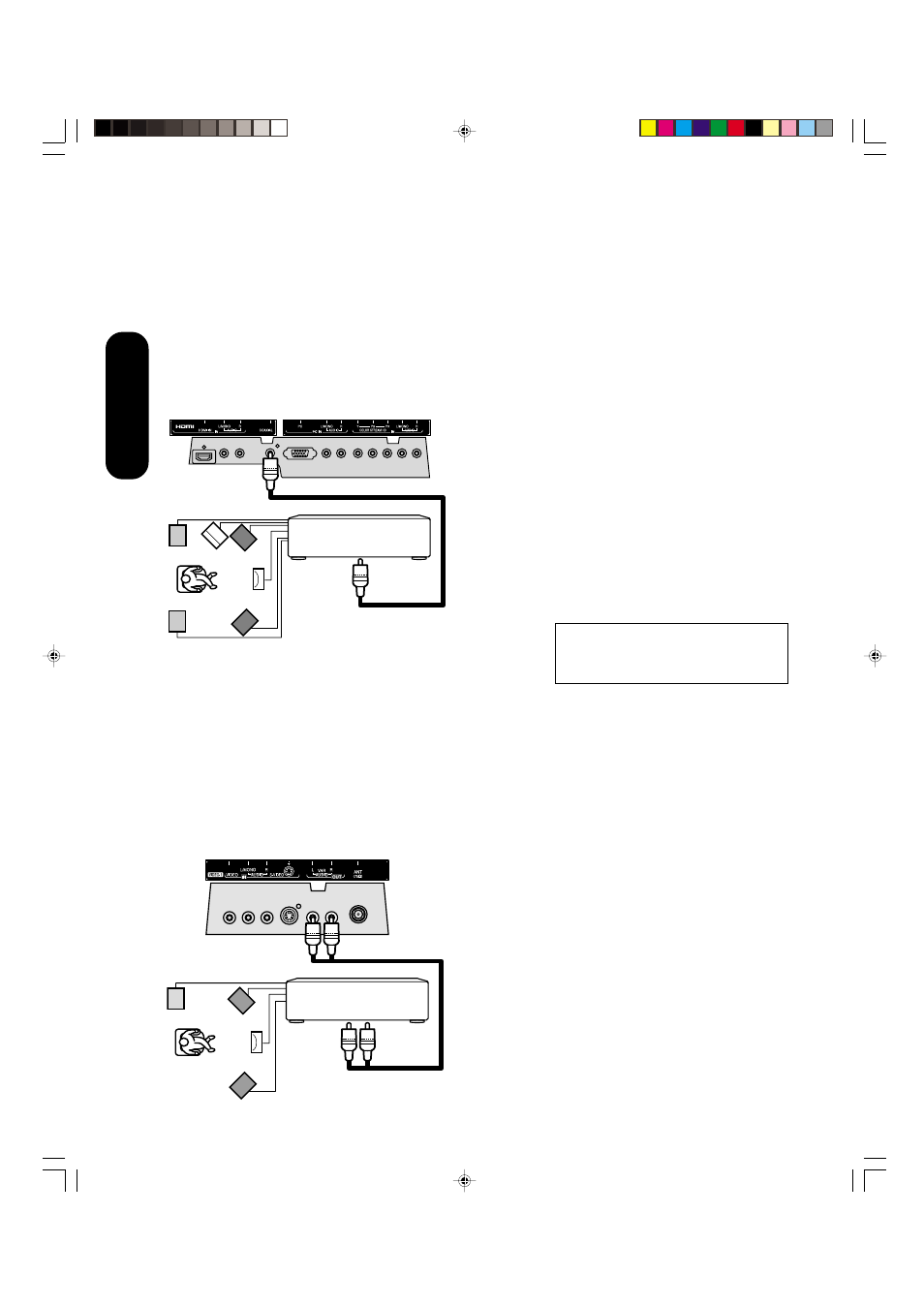

Amplifier equipped with a
Dolby Digital decoder
To COAXIAL
type digital
audio input
To COAXIAL
DIGITAL AUDIO OUT
Manufactured under license from Dolby
Laboratories. Dolby, Pro Logic, and the
double-D symbol are trademarks of Dolby
Laboratories.
Rear lower right of TV/DVD
Rear lower left of TV/DVD
To VARIABLE AUDIO OUT
Amplifier equipped with
Dolby Surround Pro Logic
* Connect one or two rear speakers. The out-
put sound from the rear speakers will be mon-
aural even if you connect two rear speakers.
To audio
input
You will need:
• one pair of standard audio cables
Notes:
• Refer to the owner’s manual of the
connected equipment as well.
• The output sound of the TV/DVD has a wide
dynamic range. Be sure to adjust the
receiver’s volume to a moderate listening
level. Otherwise, the speakers may be
damaged by a sudden high volume sound.
• Turn off the amplifier before you connect or
disconnect the TV/DVD’s power cord. If you
leave the amplifier power on, the speakers
may be damaged.
You will need:
• one coaxial cables
Notes:
• DO NOT connect the COAXIAL DIGITAL
AUDIO OUT jack of the TV/DVD to the AC-3
RF input of a Dolby Digital Receiver. This
input on your A/V Receiver is reserved for
Laserdisc use only and is incompatible with
the COAXIAL DIGITAL AUDIO OUT jack of
the TV/DVD.
• Connect the COAXIAL DIGITAL AUDIO
OUT jack of the TV/DVD to the “COAXIAL”
input of a Receiver or Processor.
• Refer to the owner’s manual of the
connected equipment as well.
• The output sound of the TV/DVD has a wide
dynamic range. Be sure to adjust the
receiver’s volume to a moderate listening
level. Otherwise, the speakers may be
damaged by a sudden high volume sound.
• Turn off the amplifier before you connect or
disconnect the TV/DVD’s power cord. If you
leave the amplifier power on, the speakers
may be damaged.
*
