List of supported signals (Y/P
B
/P
R
signals)
Signal format
fh(kHz)
fv(Hz)
* 480i(525i)@60Hz
15.73
59.94
480p(525p)@60Hz
31.47
59.94
* 576i(625i)@50Hz
15.63
50.00
576p(625p)@50Hz
31.25
50.00
720p(750p)@60Hz
45.00
60.00
720p(750p)@50Hz
37.50
50.00
1080i(1125i)@60Hz
33.75
60.00
1080i(1125i)@50Hz
28.13
50.00
■
List of supported signals (Video, S-Video signals)
Video mode
fh(kHz)
fv(Hz)
fsc(MHz)
NTSC
15.73
60
3.58
PAL
15.63
50
4.43
SECAM
15.63
50
4.25 or 4.41
PAL-M
15.73
60
3.58
PAL-N
15.63
50
3.58
PAL-60
15.73
60
4.43
NTSC4.43
15.73
60
4.43
■

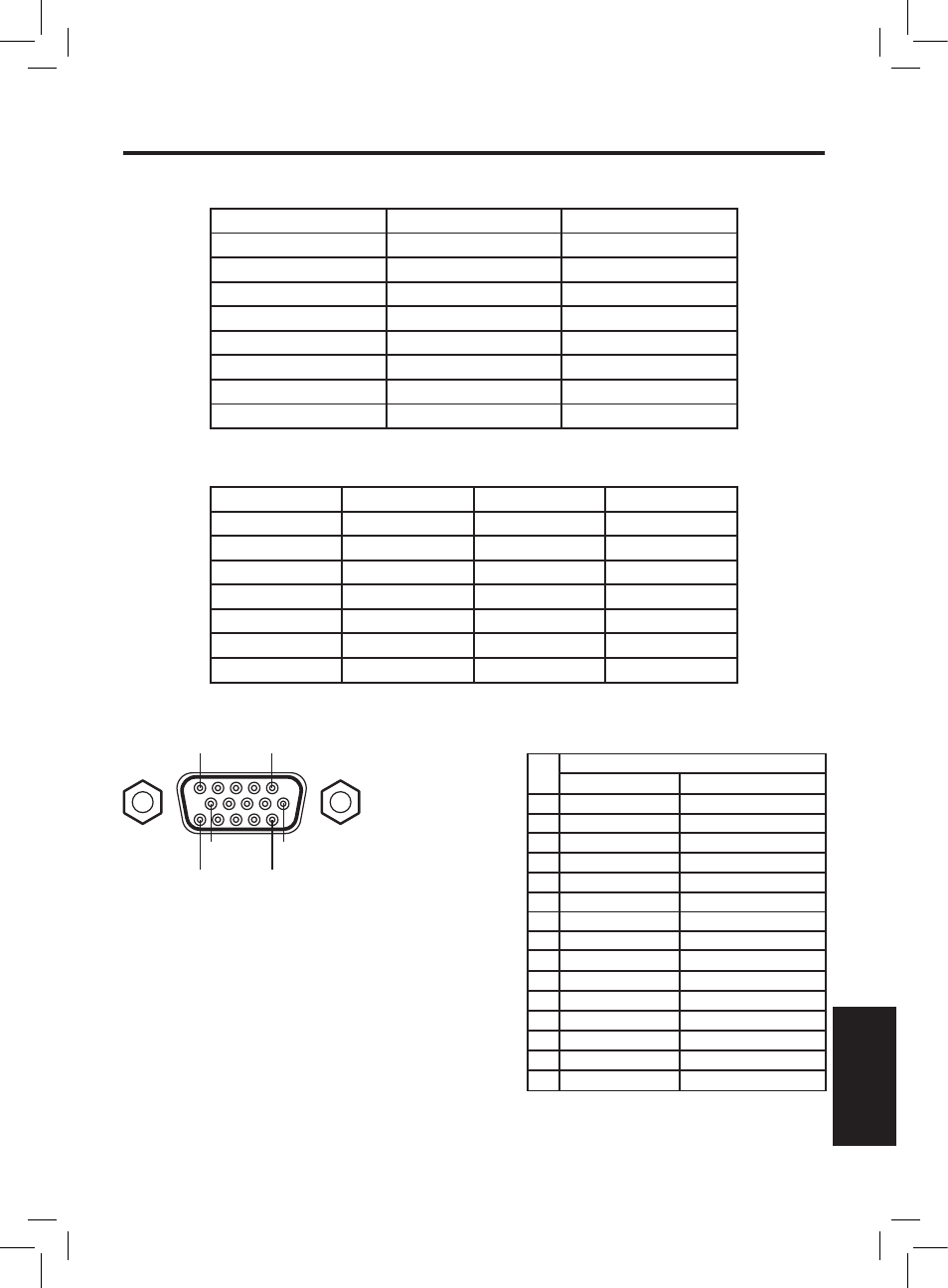

Pin assignment of COMPUTER IN & MONITOR terminals
11
15
6
1
5
10
Input Signal
• RGB input
RGB signals:
0.7V (p-p) 75 Ω
Horizontal sync signal: TTL level (Pos/neg polarity)
Vertical sync signal: TTL level (Pos/neg polarity)
• Y/P
B
/P
R
input
Y signal:
1.0V (p-p) 75 Ω
P
B
/P
R
signals:
0.7V (p-p) 75 Ω
Mini D sub 15 Pin connector
Pin
No.
Pin description
During RGB input
During Y/PB/PR input
1
Video signal (R)
Color difference signal (P
R
)
2
Video signal (G)
Luminance signal (Y)
3
Video signal (B)
Color difference signal (P
B
)
4
N.C
∗
5
GND
∗
6
GND (R)
GND (P
R
)
7
GND (G)
GND (Y)
8
GND (B)
GND (P
B
)
9
+5V
∗
10 GND
∗
11 N.C
∗
12 SDA
∗
13 Horizontal sync signal
∗
14 Vertical sync signal
∗
15 SCL
∗
∗ Do not connect anything.
