GE863-QUAD

GE863-PY

1vv0300715 Rev. 1 - 19/09/06

Reproduction forbidden without Telit Communications S.p.A. written authorization - All Right reserved

page 53 of 79

9.4 SIM Supply

Do not connect capacitance greater than 10nF to SIMVCC line.

Other notes:

- SIMIN doesn't require any pull-up resistor. It is built in.
- SIM card is detected inserted when this line is short to ground.
- If in the application the SIM holder doesn’t foresee the switch for the

presence/absence of the SIM card, the SIMIN line must be connected to ground.

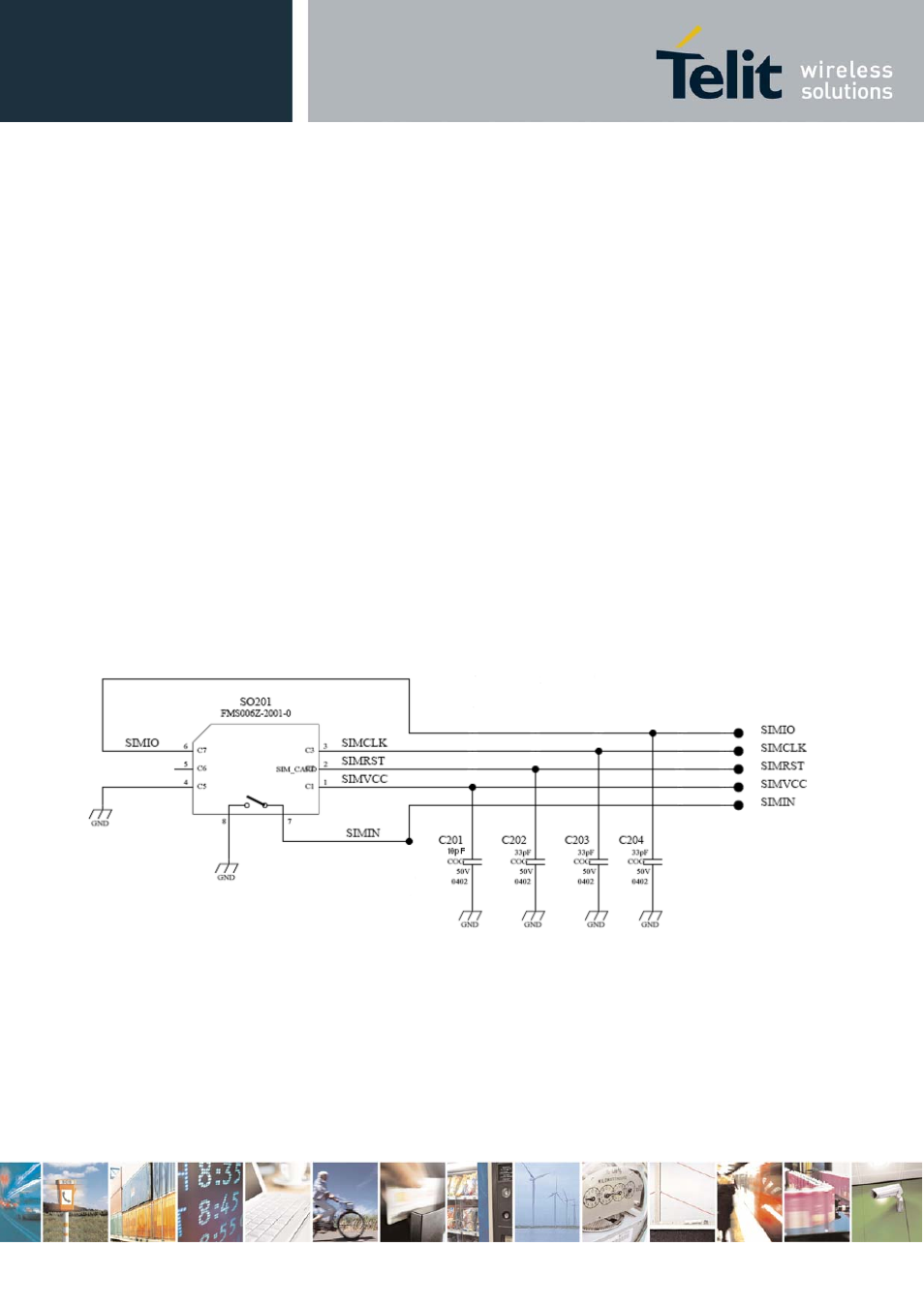

9.5 SCHEMATIC
