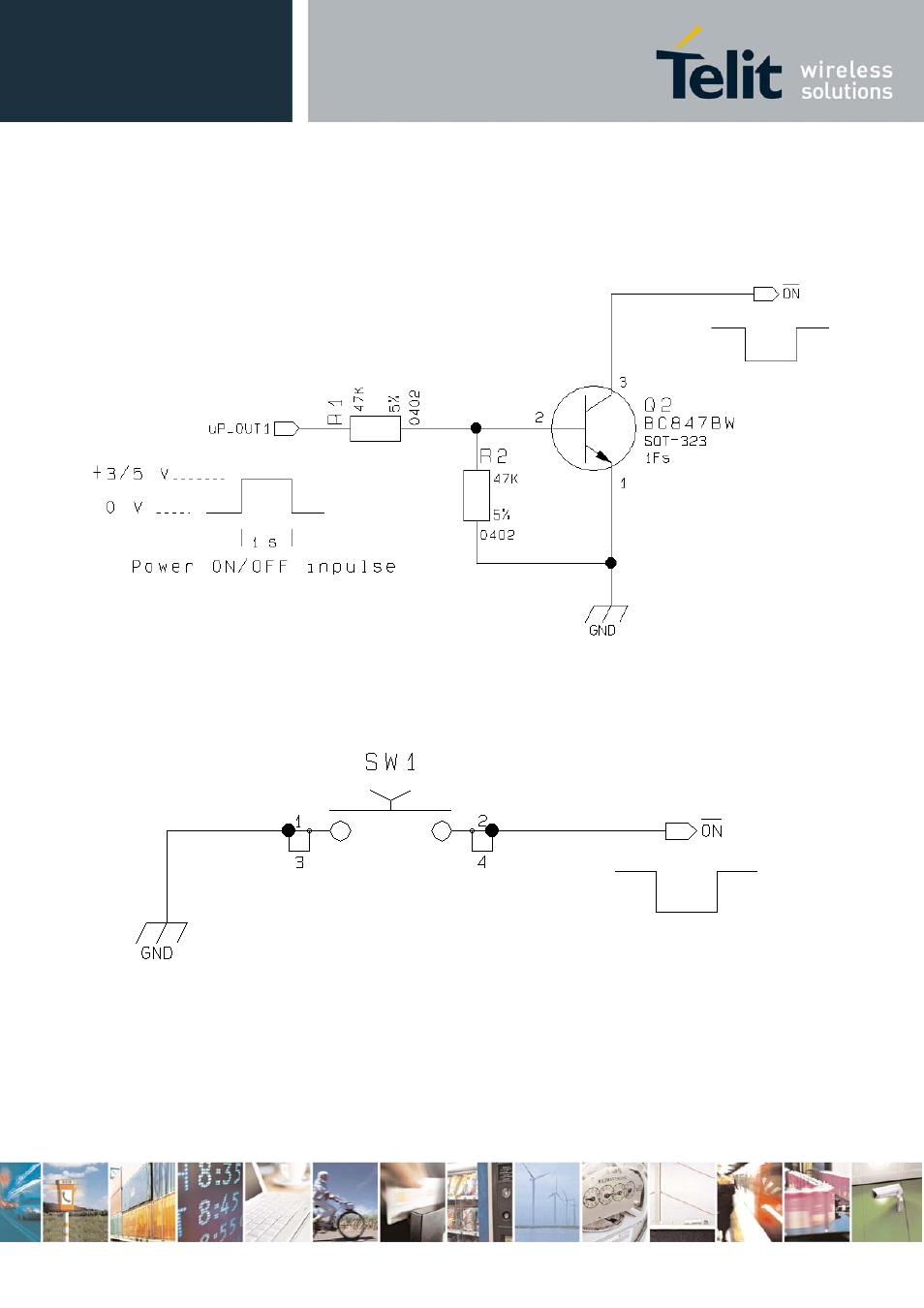

1- Let's assume you need to drive the ON# pad with a totem pole output of a +3/5 V microcontroller
(uP_OUT1):
2- Let's assume you need to drive the ON# pad directly with an ON/OFF button:
3.2 Turning OFF the GE863-QUAD/PY
The turning off of the device can be done in two ways:
