Strata CTX670 Overview
CTX670 Cabinet Slots
8
Strata CTX General Description 11/02
Licensed Software Options
Some software options are activated with license codes. The following software options require a
license:
•
Each CTX system (node) in a Strata Net QSIG Network requires one LIC670-QSIG NET
license. A maximum of four serial network nodes are allowed in any one serial chain in the
network topology.
•
Each individual CTI Open Architecture application requires one LIC670-CSTA AP license
(maximum nine).
CTX670 Cabinet Slots
Base Cabinet
The Base Cabinet has two dedicated slots used for the system processor PCBs and eight universal
slots, labeled “S101~S108,” that can accommodate station, CO line or option PCBs (see
).
It also houses a power supply.

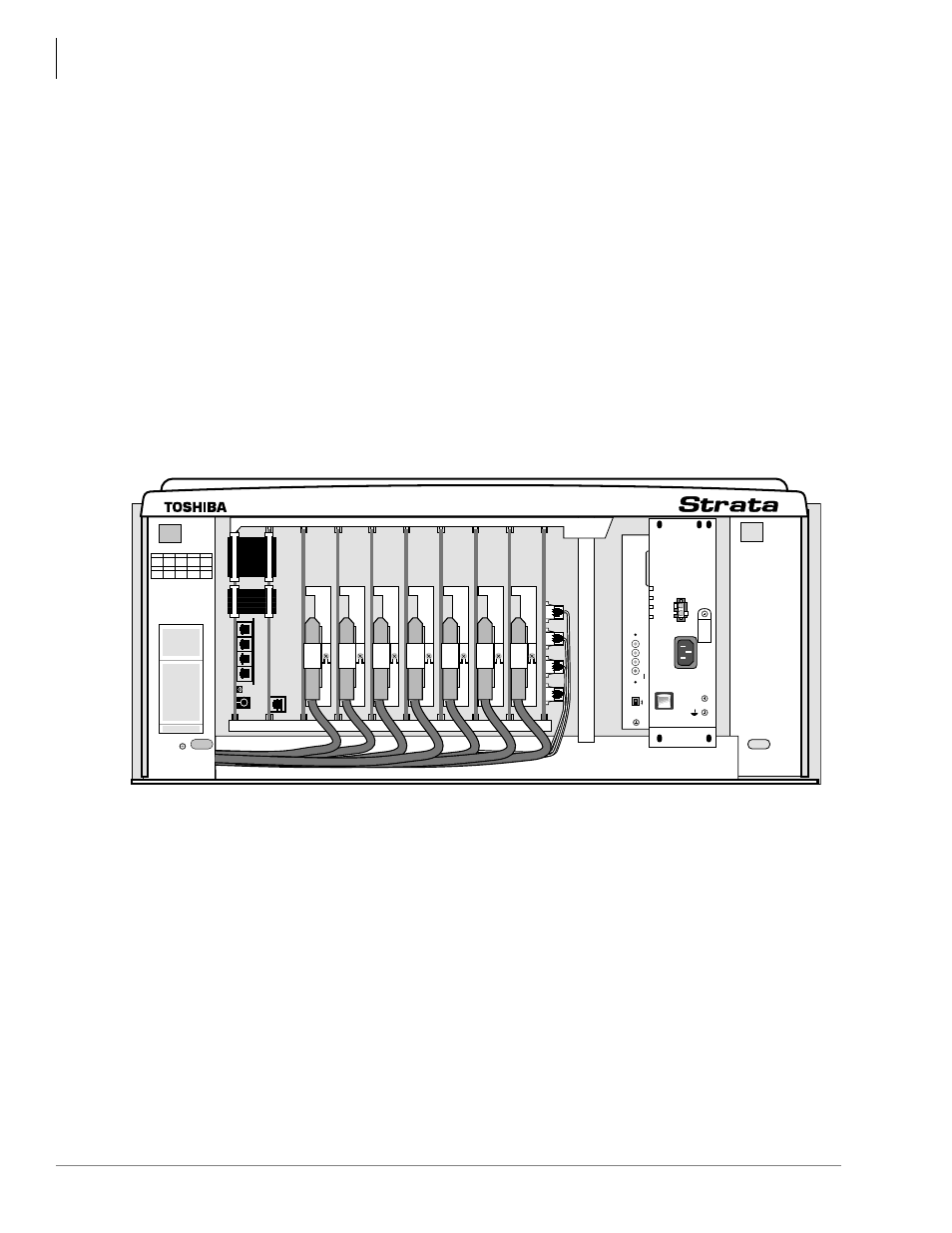

Figure 4
Base Cabinet Interior
