Strata CTX100 Overview
CTX100 Cabinet Slots
Strata CTX General Description 11/02
3
CTX100 Processor Optional Subassemblies
Optional subassemblies can be attached to the ACTU processor to provide additional features. The
subassemblies are:
• AMDS (Modem) – Provides a 33.6Kbps/V.34 modem for point-to-point local or remote
connection to the CTX WinAdmin administration PC.
• ARCS (DTMF Receiver/Busy Tone Detector) – Provides 16 DTMF receivers maximum and
16 Auto Busy Redial (ABR), Busy Tone detectors maximum.
• AETS (Ethernet LAN Interface) – Provides one 10baseT Ethernet circuit with an RJ45
connector for CTI Open Architecture applications, CTX Attendant Console, ACD Server,
Toshiba Proprietary Voice Mail integration and system administration connection (including
local and remote CTX WinAdmin).
• BSIS (Serial Port Interface) – Provides up to two RS-232 interface ports for SMDR interface
to Call Accounting devices, SMDI or Toshiba Proprietary interface to Voice Mail devices, and
two future applications.
CTX100 Cabinet Slots
Base Cabinet
The Base Cabinet has one dedicated slot used for the system processor PCB and four universal
slots (S101~S104), that can accommodate station, line or option PCBs. It also houses a power
supply that is packaged with the cabinet.
Expansion Cabinets
One expansion cabinet provides four universal PCB slots (S105~S108) that can accommodate
station, line or option PCBs. It also houses a power supply that is packaged with the cabinet.

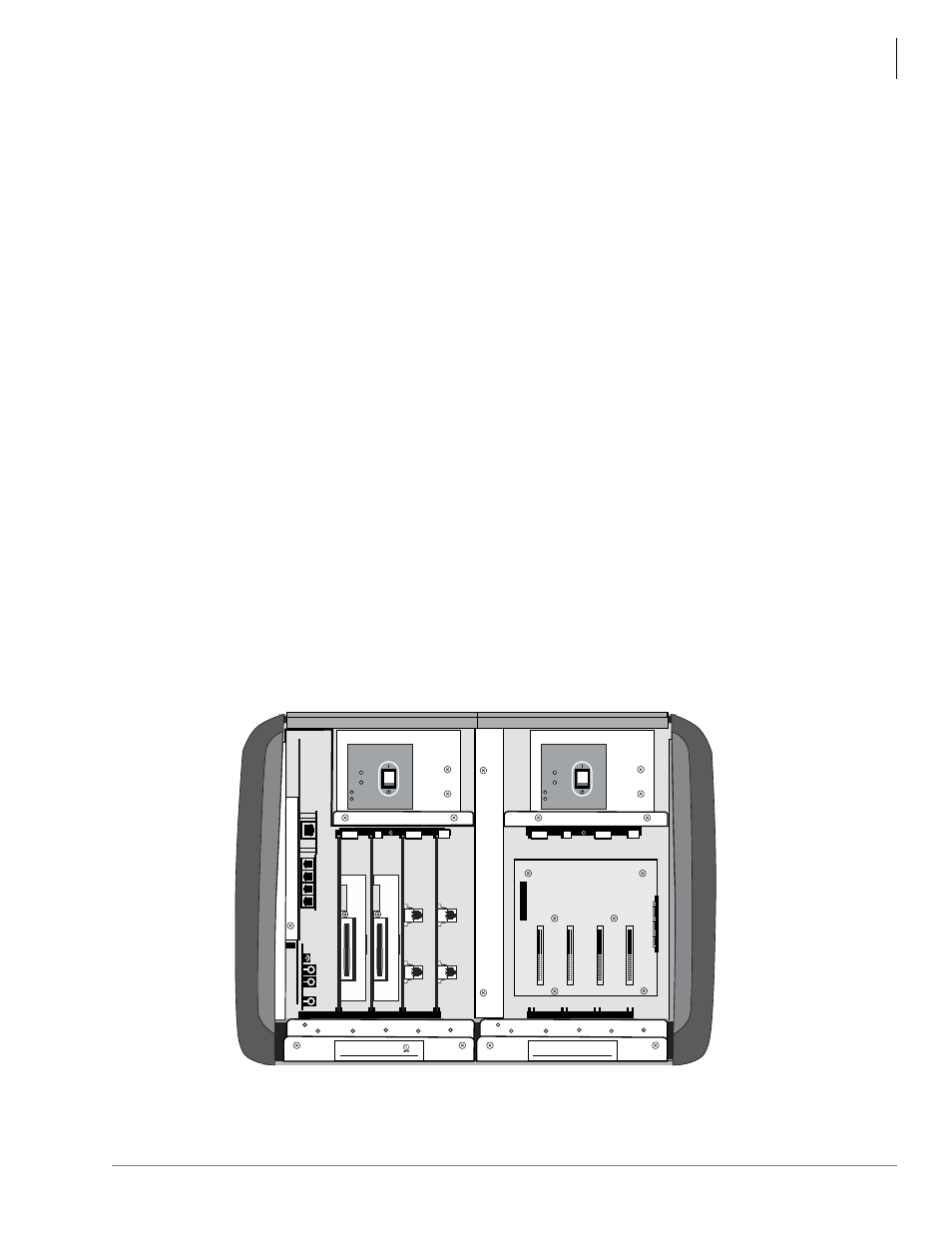

Figure 2 Base and Expansion Cabinet Interior
C US 49L7 E88891 TIM
TOSHBIA
DIGITAL BUSINESS TELEPHONE SYSTEM MODEL CHSUB112A V 1A. NO R 10062
Strata CTX100 INPUT: 120Vac 60Hz 1.8A
TOSHIBA CORPORATION MADE IN MALAYSIA ZCP
DC
AC
DC POWER
TOSHBIA
DIGITAL BUSINESS TELEPHONE SYSTEM MODEL CHSUB112A V 1A. NO R 10039
Strata CTX100 INPUT: 120Vac 60Hz 1.8A
TOSHIBA CORPORATION MADE IN MALAYSIA ZCP
AMAUE1A
TOSHIBA
S101 S102 S103 S104 S105 S106 S107 S108
DC
AC
DC POWER
6576
