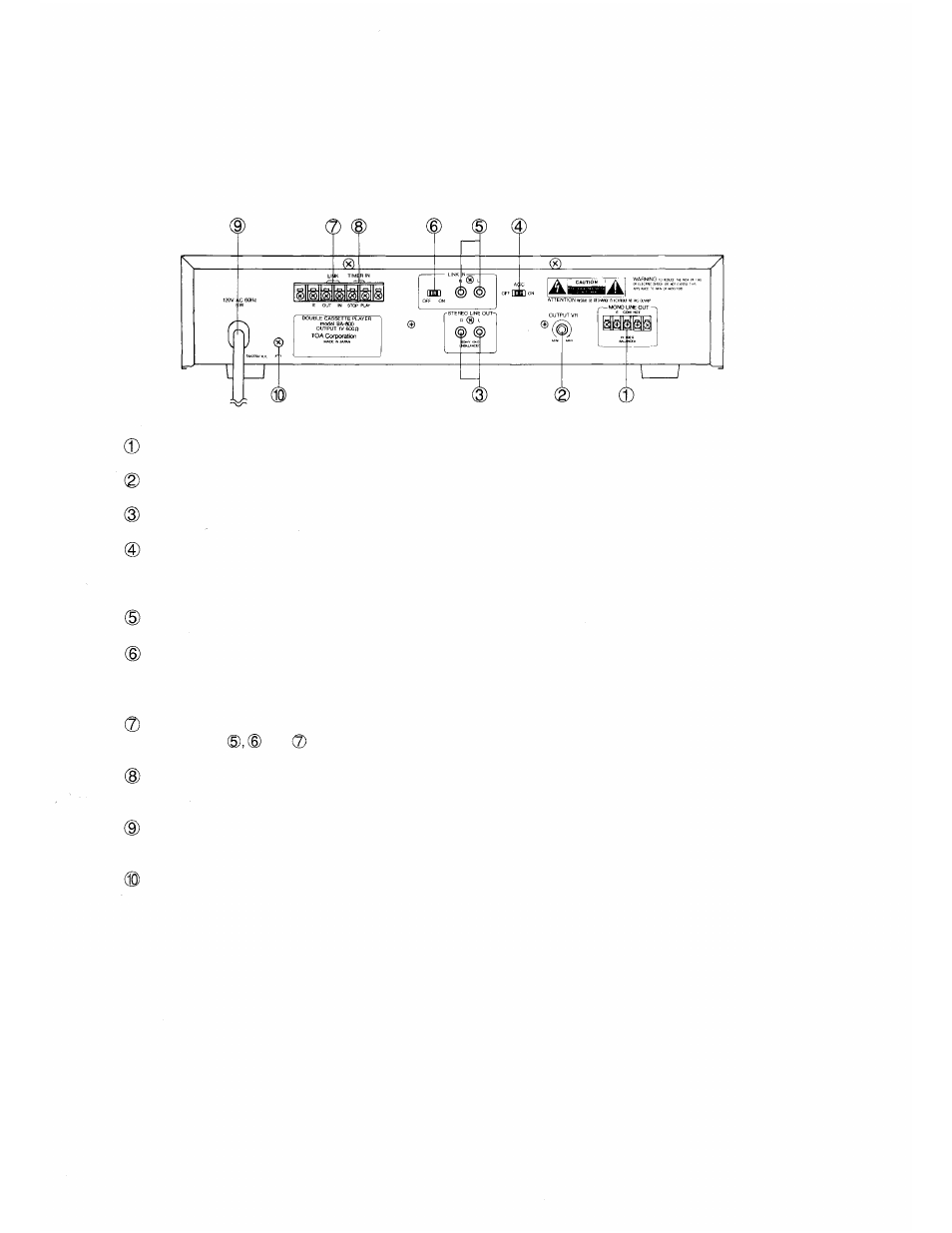

[BA-800] < Rear View >
Monaural Line Output Terminal
Monaural Line Output Volume Control
Stereo Line Output Connector
AGC Switch
Setting this switch to ON maintains the playback output volume constant regardless of variations in the tape
recording level. For details, refer to "AGC Circuit" on p.18.
Link Input Connector (Signal)
Link Switch (ON/OFF)
Set this switch to ON when expanding.
Be sure to set the switch to OFF if not expanded.
Link Input Terminal (Control)
[Note] : Use and for expansion using the BA-800. Refer to "Expansion" on p.21~22.
Timer Input Terminal
Connects to an external timer. Refer to p.16.
Power Cord
Plug this cord into the wall AC outlet (120V AC).
Ground Terminal
Grounding point for the unit.
